Avoid error while using NDSolve on theses differential equations?

Posted 5 years ago

Im trying to solve the differential equations and I keep getting the message error "NDSolve called with 2 arguments; 3 or more arguments are expected". My code is

pend[a0, w0, k, l, wd] =
  NDSolve[{a'[t] == w[t], w'[t] == -k w[t] - Sin[a[t]] + l Cos[q[t]],
    q'[t] == wd, a[0] == a0, w[0] == w0, q[0] == 0}, {a, w, q}, {t, 0,
     100}];

Any help with this is greatly appreciated.

POSTED BY: Pawe? ?ukowski
2 Replies

I got a different message.

It will be problematic whenever a0 et al are not numeric values, so I would recommend defining this using restricted pattern arguments and SetDelayed (:=, that is).

pend[a0_?NumberQ, w0_?NumberQ, k_?NumberQ, l_?NumberQ, wd_?NumberQ] :=
   NDSolve[{a'[t] == w[t], w'[t] == -k w[t] - Sin[a[t]] + l Cos[q[t]],
     q'[t] == wd, a[0] == a0, w[0] == w0, q[0] == 0}, {a, w, q}, {t,
    0, 100}];

This evaluated, for example.

pend[1., 2., 3., 4., 5.]
POSTED BY: Daniel Lichtblau

I suppose that ParametricNDSolve could present another approach.

func = ParametricNDSolveValue[{a'[t] == w[t], w'[t] == -k w[t] - Sin[a[t]] + l Cos[q[t]], q'[t] == wd,
a[0] == a0, w[0] == w0, q[0] == 0}, {a, w, q}, {t, 0, 100}, {a0, w0, k, l, wd}]

pend[a0_, w0_, k_, l_, wd_] := func[a0, w0, l, k, wd]

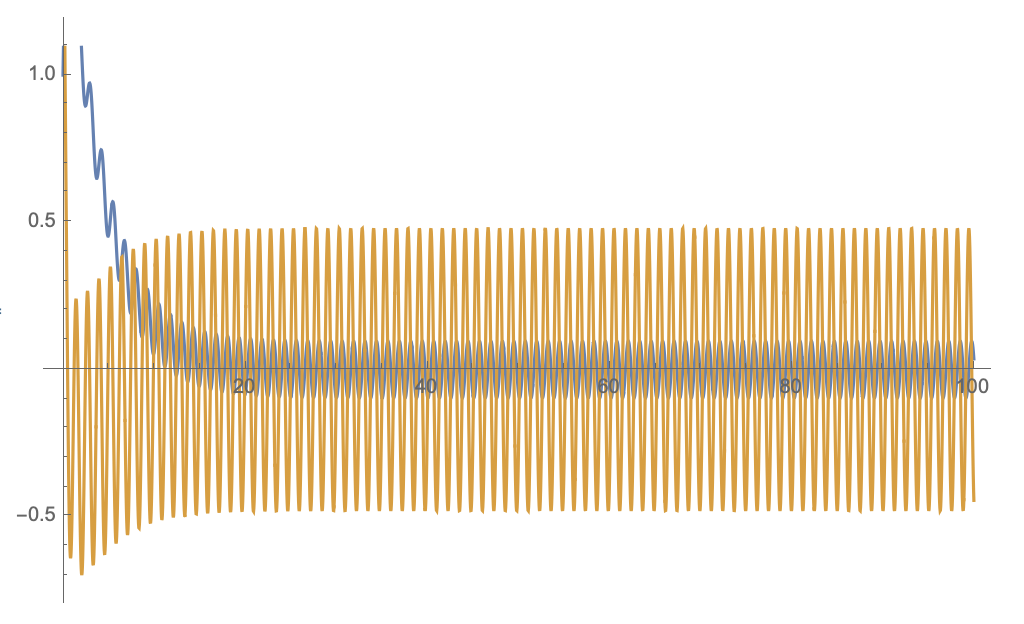

Plot[#[t] & /@ pend[1., 2., 3., 4., 5.][[1 ;; 2]], {t, 0, 100}]

enter image description here

Cheers,

Marco

POSTED BY: Marco Thiel
