# Famous computable theorems of geometry

Posted 5 years ago

GeometricScene and FindGeometricConjectures are two of my favorite new functions in Wolfram Language V12. V12 provides innovative automated capabilities to draw and reason about abstractly described scenes in the plane.

I also remember that I'd proved famous theorems of geometry over many days when I was a junior high school student. I will show nine theorems, including those in the Documentation Center and WOLFRAM blog.

## Thaless Theorem

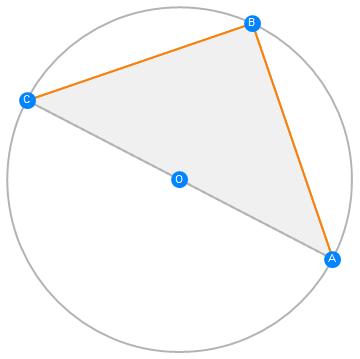

If A, B, and C are distinct points on a circle where the line AC is a diameter, then the angle [Angle]ABC is a right angle.

gs = GeometricScene[{"A", "B", "C", "O"},
{Triangle[{"A", "B", "C"}],
CircleThrough[{"A", "B", "C"}, "O"],
"O" == Midpoint[{"A", "C"}],
Style[Line[{"A", "B"}], Orange],
Style[Line[{"B", "C"}], Orange]
}
];
RandomInstance[gs]
FindGeometricConjectures[gs]["Conclusions"]  ## Napoleons Theorem

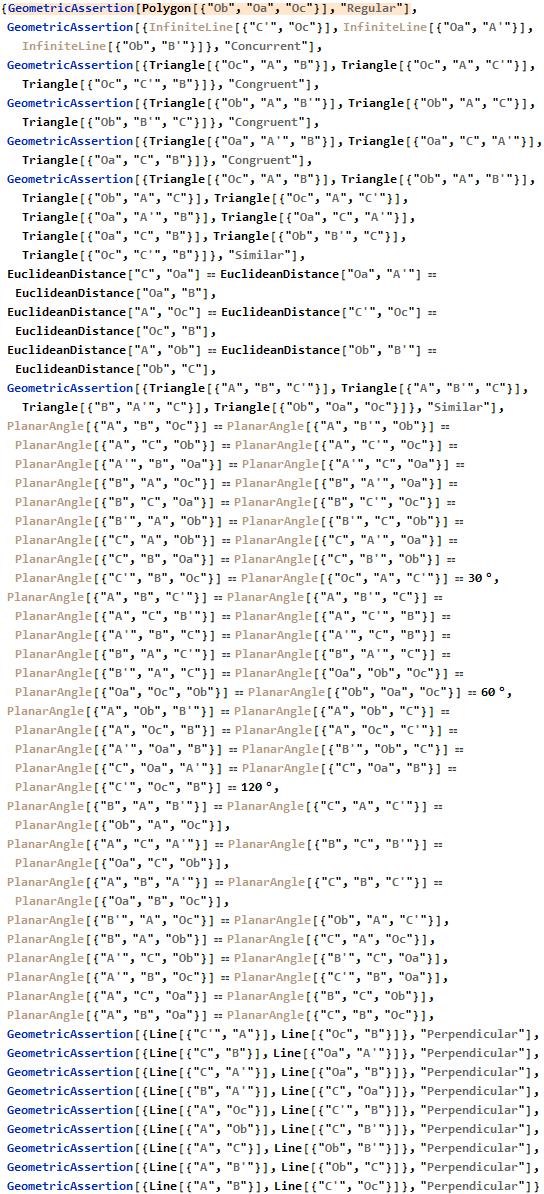

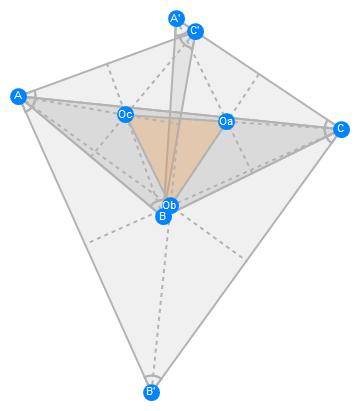

If regular triangles are constructed on the sides of any triangle, either all outward or all inward, the lines connecting the centres of those regular triangles themselves form an regular triangle.

gs = GeometricScene[{"C", "B", "A", "C'", "B'", "A'", "Oc", "Ob",
"Oa"},
{Triangle[{"C", "B", "A"}],
TC == Triangle[{"A", "B", "C'"}],
TB == Triangle[{"C", "A", "B'"}],
TA == Triangle[{"B", "C", "A'"}],
GeometricAssertion[{TC, TB, TA}, "Regular"],
"Oc" == TriangleCenter[TC, "Centroid"],
"Ob" == TriangleCenter[TB, "Centroid"],
"Oa" == TriangleCenter[TA, "Centroid"],
Style[Triangle[{"Oc", "Ob", "Oa"}], Orange]}
];
RandomInstance[gs]

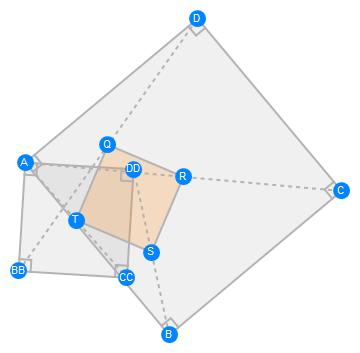

FindGeometricConjectures[gs]["Conclusions"]  ABCD and A BB CC DD are two squares with common vertex A. Let Q and S be the midpoints of BB D and DD B respectively, and let R and T be the centers of the two squares. Then the quadrilateral QRST is a square as well.

gs = GeometricScene[{"A", "B", "C", "D", "BB", "CC", "DD", "Q", "R", "S", "T"},
{GeometricAssertion[{Polygon[{"A", "B", "C", "D"}],
Polygon[{"A", "BB", "CC", "DD"}]}, "Regular", "Counterclockwise"],
"Q" == Midpoint[{"BB", "D"}],
"R" == Midpoint[{"A", "C"}],
"S" == Midpoint[{"B", "DD"}],
"T" == Midpoint[{"A", "CC"}],
Style[Polygon[{"Q", "R", "S", "T"}], Orange]}];
RandomInstance[gs]

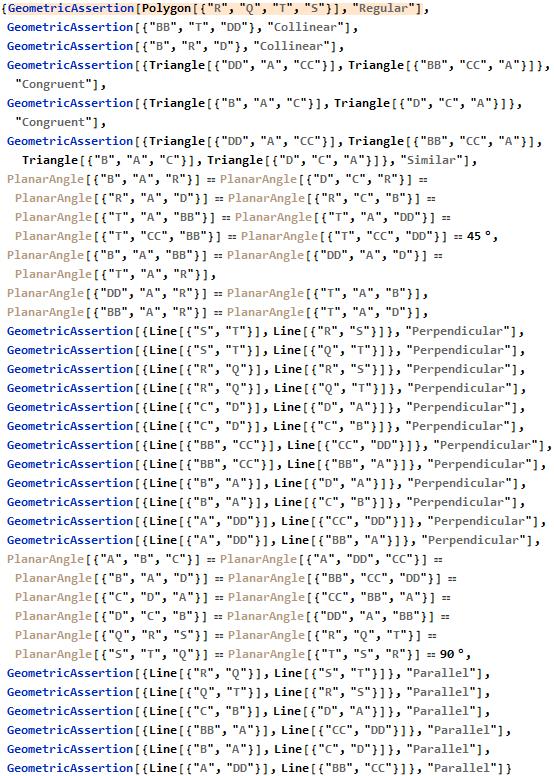

FindGeometricConjectures[gs]["Conclusions"]  ## Echols Theorem

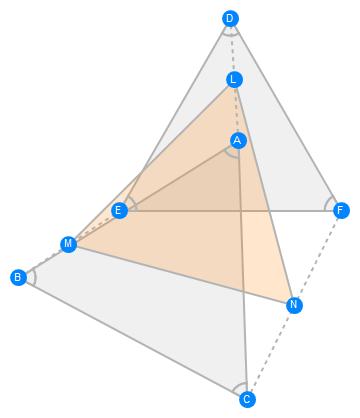

The midpoints of AD, BE, and CF in two equilateral triangles ABC and DEF form a regular triangle.

gs = GeometricScene[{"A", "B", "C", "D", "E", "F", "L", "M", "N"},
{T1 == Triangle[{"A", "B", "C"}],
T2 == Triangle[{"D", "E", "F"}],
GeometricAssertion[{T1, T2}, "Regular"],
"L" == Midpoint[{"A", "D"}],
"M" == Midpoint[{"B", "E"}],
"N" == Midpoint[{"C", "F"}],
Style[Triangle[{"L", "M", "N"}], Orange]
}
];
RandomInstance[gs]

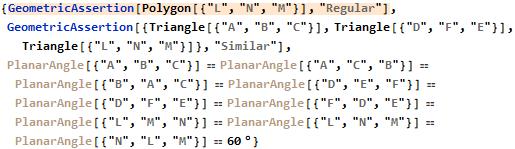

FindGeometricConjectures[gs]["Conclusions"]  ## Simson Theorem & Steiner Theorem

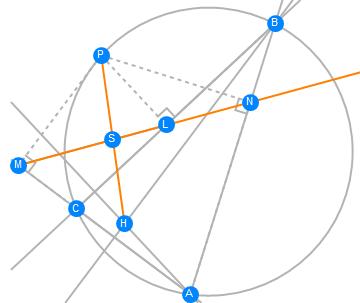

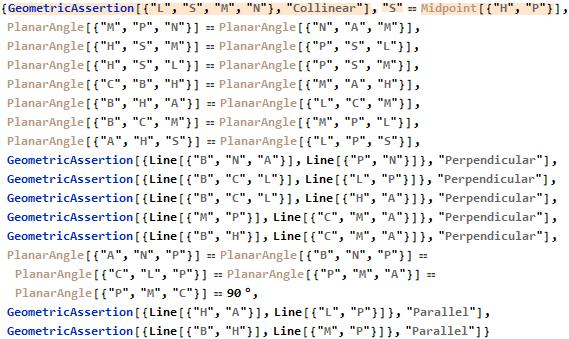

Simson's Theorem states that ABC and a point P on its circumcircle, the three closest points to P on lines AB, AC, and BC are collinear. Steiner's Theorem states that if the vertical center of triangle ABC is H, the Simson line passes through the midpoint of PH.

gs = GeometricScene[{"A", "B", "C", "P", "L", "M", "N", "H", "S"},
{CircleThrough[{"P", "A", "B", "C"}],
"L" \[Element] InfiniteLine[{"B", "C"}],
"M" \[Element] InfiniteLine[{"C", "A"}],
"N" \[Element] InfiniteLine[{"A", "B"}],
PlanarAngle[{"P", "L", "B"}] == 90 \[Degree],
PlanarAngle[{"P", "M", "C"}] == 90 \[Degree],
PlanarAngle[{"P", "N", "A"}] == 90 \[Degree],
Style[InfiniteLine[{"L", "M"}], Orange],
GeometricAssertion[{InfiniteLine[{"A", "H"}], Line[{"B", "C"}]},
"Perpendicular"],
GeometricAssertion[{InfiniteLine[{"B", "H"}], Line[{"A", "C"}]},
"Perpendicular"],
Style[Line[{"P", "H"}], Orange],
Line[{"P", "S", "H"}], Line[{"L", "S", "M"}]
}
];
RandomInstance[gs]
FindGeometricConjectures[gs]["Conclusions"]  ## Aubel Theorem

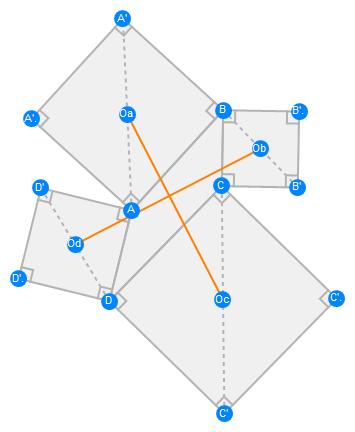

Starting with a given quadrilateral (a polygon having four sides), construct a square on each side.The two line segments between the centers of opposite squares are of equal lengths and are at right angles to one another.

gs = GeometricScene[{"A", "B", "C", "D", "A'", "A''", "B'",
"B''", "C'", "C''", "D'", "D''", "Oa", "Ob", "Oc", "Od"},
{GeometricAssertion[Polygon[{"A", "B", "C", "D"}], "Convex"],
GeometricAssertion[{pa = Polygon[{"A", "B", "A'", "A''"}],
pb = Polygon[{"B", "C", "B'", "B''"}],
pc = Polygon[{"C", "D", "C'", "C''"}],
pd = Polygon[{"D", "A", "D'", "D''"}]}, "Regular",
"Counterclockwise"],
"Oa" == Midpoint[{"A", "A'"}],
"Ob" == Midpoint[{"B", "B'"}],
"Oc" == Midpoint[{"C", "C'"}],
"Od" == Midpoint[{"D", "D'"}],
Style[Line[{"Oa", "Oc"}], Orange],
Style[Line[{"Ob", "Od"}], Orange]}
];
RandomInstance[gs]

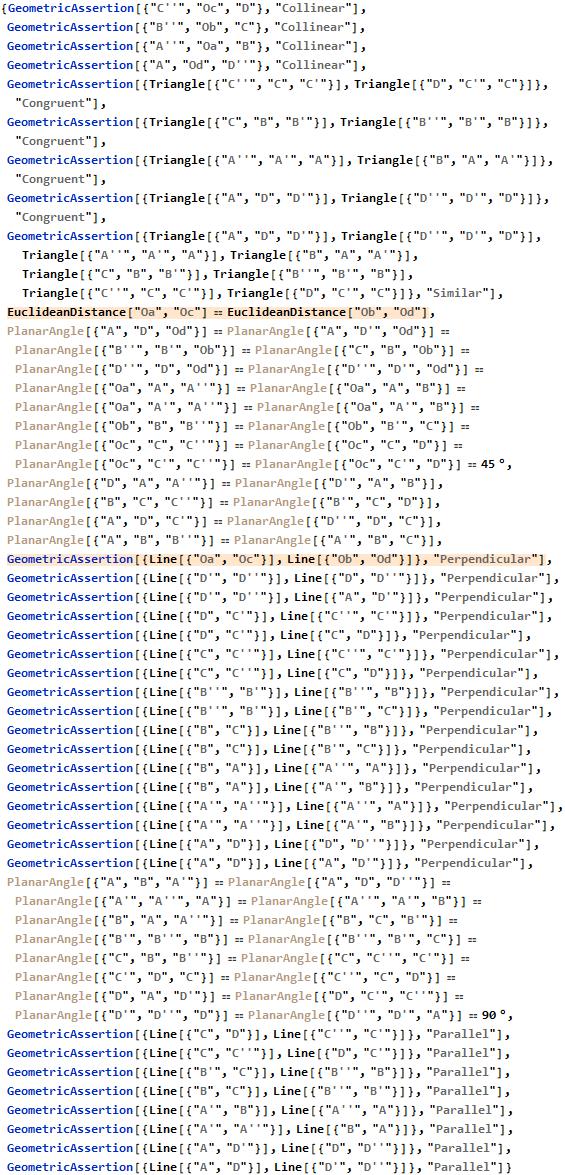

FindGeometricConjectures[gs]["Conclusions"]  ## Brahmagupta Theorem

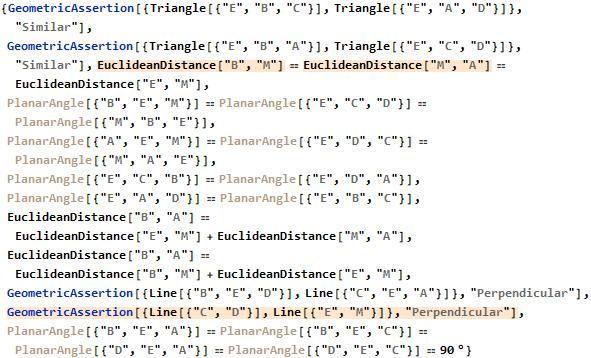

If a cyclic quadrilateral has perpendicular diagonals, then the perpendicular to a side from the point of intersection of the diagonals always bisects the opposite side.

gs = GeometricScene[{"A", "B", "C", "D", "E", "M"},
{Polygon[{"A", "B", "C", "D"}],
CircleThrough[{"A", "B", "C", "D"}],
GeometricAssertion[{Line[{"A", "C"}], Line[{"B", "D"}]},
"Perpendicular"],
Line[{"A", "E", "C"}], Line[{"B", "E", "D"}],
"M" == Midpoint[{"A", "B"}],
Style[InfiniteLine[{"M", "E"}], Orange],
Style[Line[{"C", "D"}], Orange]
}
];
RandomInstance[gs]
FindGeometricConjectures[gs]["Conclusions"]  ## Morley Theorem

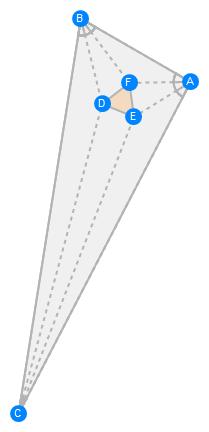

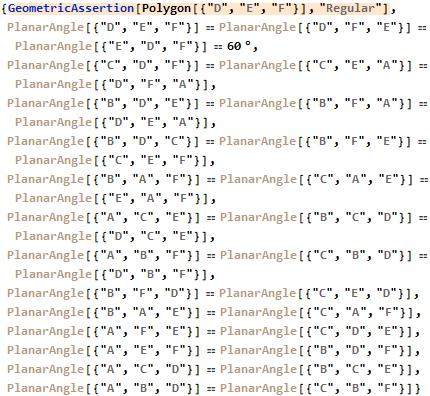

In any triangle, the three points of intersection of the adjacent angle trisectors form a regular triangle.

gs = GeometricScene[{"A", "B", "C", "D", "E", "F"},
{Triangle[{"A", "B", "C"}],
PlanarAngle[{"A", "B", "F"}] == PlanarAngle[{"A", "B", "C"}]/3,
PlanarAngle[{"F", "A", "B"}] == PlanarAngle[{"C", "A", "B"}]/3,
PlanarAngle[{"C", "B", "D"}] == PlanarAngle[{"C", "B", "A"}]/3,
PlanarAngle[{"B", "C", "D"}] == PlanarAngle[{"B", "C", "A"}]/3,
PlanarAngle[{"A", "C", "E"}] == PlanarAngle[{"A", "C", "B"}]/3,
PlanarAngle[{"C", "A", "E"}] == PlanarAngle[{"C", "A", "B"}]/3,
"D" \[Element] Triangle[{"A", "B", "C"}],
"E" \[Element] Triangle[{"A", "B", "C"}],
"F" \[Element] Triangle[{"A", "B", "C"}],
Style[Triangle[{"D", "E", "F"}], Orange]
}
];
RandomInstance[gs]
FindGeometricConjectures[gs]["Conclusions"]  4 Replies
Sort By:
Posted 5 years ago - Congratulations! This post is now featured in our Staff Pick column as distinguished by a badge on your profile of a Featured Contributor! Thank you, keep it coming, and consider contributing your work to the The Notebook Archive!
Posted 5 years ago
 I like these synthetic geometric features as well. These are powerful tools to explore Johnson's "Advanced Euclidean Geometry", Coolidge's "A treaties on the triangle and the sphere" and "the Heroic age of geometry". Also would you like to try these functions to test Butterfly Theorem?
Posted 5 years ago

Shenghui, thanks for your comment. I tried Butterfly Theorem.

## Butterfly Theorem

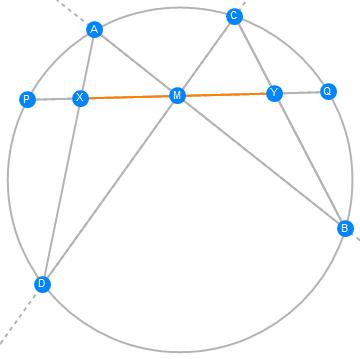

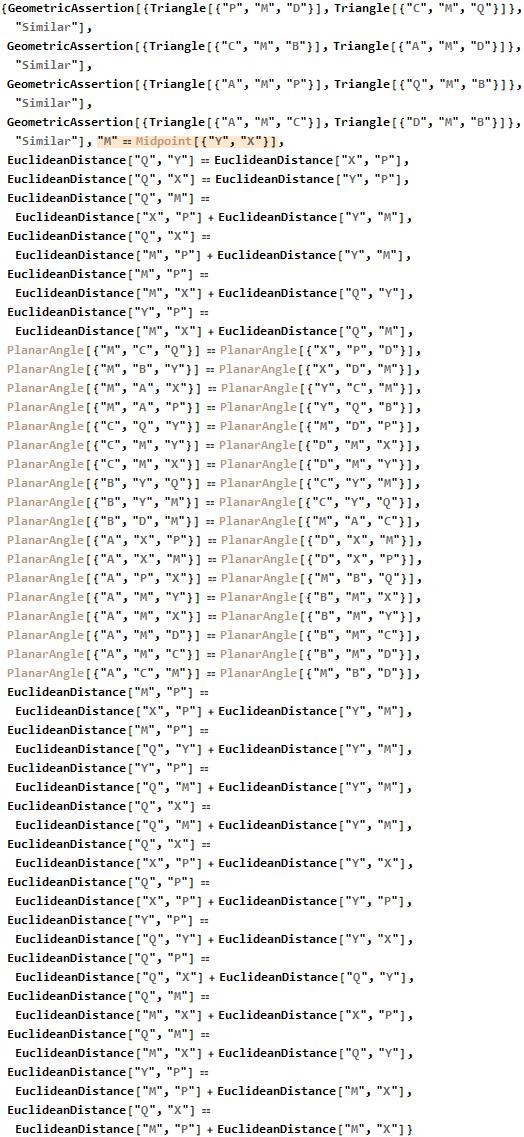

Let M be the midpoint of a chord PQ of a circle, through which two other chords AB and CD are drawn; AD and BC intersect chord PQ at X and Y correspondingly. Then M is the midpoint of XY.

gs = GeometricScene[{"A", "B", "C", "D", "P", "Q", "M", "X", "Y"},
{GeometricAssertion[CircleThrough[{"A", "P", "D", "B", "Q", "C"}],
"Counterclockwise"],
GeometricAssertion[{{"A", "M", "B"}, {"C", "M", "D"}},
"Collinear"],
"M" == Midpoint[{"P", "Q"}],
Line[{{"P", "X", "Q"}, {"A", "X", "D"}, {"P", "Y", "Q"}, {"C",
"Y", "B"}}],
Line[{{"A", "B"}, {"C", "D"}, {"A", "D"}, {"B", "C"}}],
Style[Line[{"X", "Y"}], Orange]
}
];
RandomInstance[gs]
FindGeometricConjectures[gs]["Conclusions"]  Posted 5 years ago
 Your code floats like a butterfly! For conjectures if you are only interested those related to point M, you can extract the statement by adding a Pattern into the FindGeometricConjectures: In:= FindGeometricConjectures[gs,"M"==_]["Conclusions"] Out= {M==Midpoint[{Y,X}]} or using HoldPattern["M" == _] to make the code more robust.
