Star simulation with geometry

Posted 1 year ago
4623 Views
|
3 Replies
|
10 Total Likes
|

I developed a code, just for fun, to simulate a star using only geometric shapes and a modified texture of the Sun's surface.

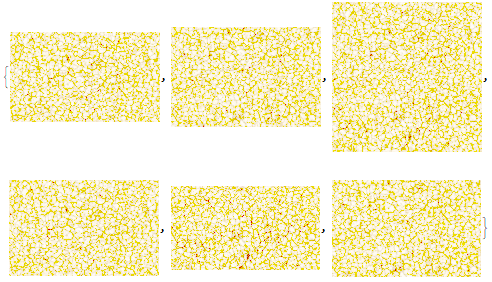

First, I acquired the texture:

tex = Map[ImageAdjust[#, {0, 0, 0.1}] &,
  WebImageSearch["Sun surface", Method -> "Google",
   MaxItems -> 8]]; list = Flatten[{tex[[1]], tex[[3 ;; 7]]}]

im1

Then, I created the geometric shape of the star (and added the texture). Just replace the "list" in the code below with the texture list above (the evaluation can take up to 5 minutes):

z1 = Table[n = RandomPolygon[{"StarShaped", 10000}];
   a = PolygonDecomposition[n, "Triangle"];
   b = Table[
     Map[Disk[#, 0.001] &, RandomPoint[a[[i]], 40]], {i, 1,
      Length@a}];
   Show[{Graphics[{Texture[{"list"}[[x]]],
       RandomPolygon[{"StarShaped", 10000},
        VertexTextureCoordinates -> Automatic], ImageSize -> 1000}],
     Graphics[{Opacity[0.3], Red, b}]}], {x, 1, 6}];

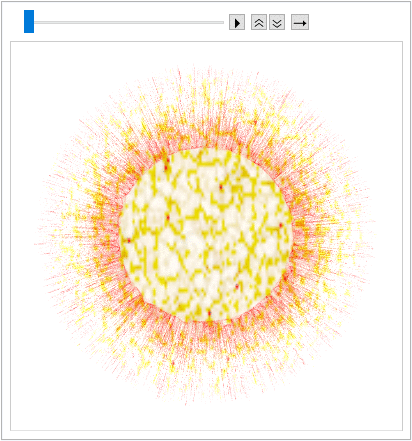

The animation can be done with, for example, ListAnimate[]:

ListAnimate[z1, AnimationRate -> 0.5]

im2

Thanks.

3 Replies

enter image description here -- you have earned Featured Contributor Badge enter image description here

Your exceptional post has been selected for our editorial column Staff Picks http://wolfr.am/StaffPicks and Your Profile is now distinguished by a Featured Contributor Badge and is displayed on the Featured Contributor Board. Thank you!

Texture[{"list"}[[x]]]

should it be

Texture[list[[x]]]

?

Hi Shenghui,

Yes, you are correct, but... I left it that way on purpose, as I needed to manually replace {"list"} with the list of images above.. for some reason list[[x]] does not work automatically in the Texture[] (at least on my PC)...
