Frobenius 21 Group

Posted 1 month ago
392 Views
|
1 Reply
|
3 Total Likes
|

FiniteGroupData is missing a few group generations, so I've filled in some holes. One of the groups is Frobenius 21.

F21=PermutationGroup[{Cycles[{{1,2,3,4,5,6,7},{8,9,10,11,12,13,14},{15,16,17,18,19,20,21}}],Cycles[{{1,7,6,5,4,3,2},{8,14,13,12,11,10,9},{15,21,20,19,18,17,16}}],Cycles[{{1,8,15},{2,12,17},{3,9,19},{4,13,21},{5,10,16},{6,14,18},{7,11,20}}],Cycles[{{1,15,8},{2,17,12},{3,19,9},{4,21,13},{5,16,10},{6,18,14},{7,20,11}}]}];

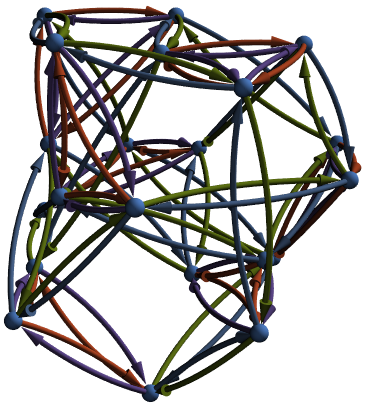

Then I looked at the Cayley graph.

z =Graph3D[CayleyGraph[F21]]

Frobenius 21

I decided to check if it was in GraphData. Turns out it is.

IsomorphicGraphQ[GraphData[{"UnitDistance",{21,2}}], Graph[UndirectedEdge@@@Union[Sort/@List@@@EdgeList[z]]]]

Which graph is this? Turns out this is my graph, a unit distance graph with chromatic number 4 and no 4-cycles.

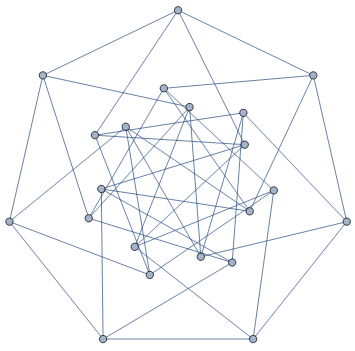

GraphData[{"UnitDistance", {21, 2}}]

twisted 7

When I found the graph I had no idea it would pop up somewhere else.

In the notebook I also have some missing groups for orders 16, 18, 20, 21, 24 and 27. Does anyone want the missing groups for order 32?

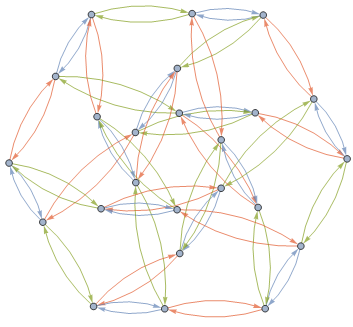

One of the 24 groups gives the Nauru graph.

enter image description here

Attachments:

enter image description here -- you have earned Featured Contributor Badge enter image description here

Your exceptional post has been selected for our editorial column Staff Picks http://wolfr.am/StaffPicks and Your Profile is now distinguished by a Featured Contributor Badge and is displayed on the Featured Contributor Board. Thank you!
