# How do you make a phase line

Posted 10 years ago
12113 Views
|
10 Replies
|
7 Total Likes
|
 How do you make a "phase line" showing the stable and unstable points and the arrows?  ThanksJake
10 Replies
Sort By:
Posted 10 years ago
 Dear Jake,no worries. The code only appears long because of the three cases (no fixed point, one fixed point or more). It is basically only a plotting issue. I am sure that it is quite possible to shorten the code substantially. For example this bitAbs[Abs[Max[x /. zeros]] - Min[x /. zeros]]comes up over and over again. One could just define it once and then use it in the remainder of the code. I did not mean to write short code here, just to illustrate the idea. Isaac's "Which"-command makes the code shorter as well. The epilog function could be defined once and reused later in the code as well. Actually, one should improve this a bit and then write it as a function, the definition of which could go into the initialisation of the notebook or into a package.Cheers,M.
Posted 10 years ago
 Thanks so much for all the work you did.  I never expected the code to be so long.  Jake
Posted 10 years ago
 Attached is another variant to the many solutions above. Thank you for allowing me to share. (* PROGRAM BEGINS *)  (* Clear memory *) Clear["Global`*"];  (* Enter a trial (polynomial) function with real roots. *) f[x_] := (0)x^5 + (0)x^4 + (0)x^3 + (-1)x^2 + (0)x + (0)1 ;  (* Find roots *)roots = N[ x /. Solve[ f[x]==0,x]];(* Assign phase lines to various conditions *)test = Which[ f[-1] < 0 && f < 0, "\[LeftArrow] \[EmptyDownTriangle] \[LeftArrow]",f[-1] < 0 && f > 0, "\[LeftArrow] \[EmptyDownTriangle] ->",f[-1] > 0 && f < 0, "-> \[FilledCircle] \[LeftArrow]",f[-1] > 0 && f > 0, "-> \[EmptyDownTriangle] ->"];(* Assign markers to the roots, based on the sign of thefunction derivative at the root location. *)marker = ((D[f[x],x] /. x -> roots) // Sign )/. { 1 -> "\[LeftArrow] \[EmptyCircle] ->", -1 -> "-> \[FilledCircle] \[LeftArrow]", 0 -> test};(* Generate plots *)Which[ roots == Re[roots],{(* Generate plot limits based on the roots. *)xmin = 2 Min[-1, Min[roots]];xmax = 2 Max[1 , Max[roots]];ylim = f[#]& /@ Max[x /.  Solve[ D[f[x],x] == 0, x]];(* When the roots are real,...*)(* Generate f (t)-t plot. *)plt = Plot[ f[x], {x, xmin, xmax},ImageSize -> 100];(* Generate phase plot. *)phs = ListPlot[ {Thread[{roots,0}][[#]]},PlotMarkers -> If[Length[marker]!=0, {marker[[#]]} , "x"](* Close ListPlot *)]& /@ Table[i,{i,1,Length[roots]}];(* Combine phase and f (t)-t plots. *)Show[ {plt (* Delete plt if original plot is not desired *), phs}, AxesLabel  -> {"x", "y"},PlotLabel  -> Style["Phase Plot", 24],LabelStyle -> 24,PlotRange  -> { {xmin, xmax}, {-2ylim, 2ylim} }, Epilog     -> Inset[(* Begin Framed *)Framed[Style[StringJoin["Roots = ",ToString[roots]], 24,             Background -> White(* End Framed *)]],              Scaled[{0.5,0.15}]],ImageSize  -> 500]},(* When the roots are imaginary,...*)roots !=  Re[roots], {Print["Complex roots encountered. There are no fixed points. Phase plot is not generated."]}(* Close Which *)][](* PROGRAM ENDS *)
Posted 10 years ago
 Here's the solution with streamplot. We need to enter the functions in a slightly different way now: f = {x^2 - 0.2 x^3 - 2, 0}  or   f = {-1.3 x^2 + 0.2 x^3 + 2, 0}  or   f = {x^2, 0}So we only need to add a second component which is zero. The program distinguishes again between the three main cases. M = 12; zeros = DeleteDuplicates[NSolve[f[] == 0, x, Reals]];   If[Length[zeros] == 0,    (*no fixed points*)  Print["There are no zeros."],    If[(Min[x /. zeros] - Max[x /. zeros]) != 0,  (*more than one fixed point*)    StreamPlot[   f, {x, Min[x /. zeros] - 0.2*(Max[x /. zeros] - Min[x /. zeros]),     Max[x /. zeros] +      0.2*(Max[x /. zeros] - Min[x /. zeros])}, {y, -0.1, 0.1},    AspectRatio -> 0.1, ImageSize -> Large, Frame -> None,    StreamPoints -> {Table[{x,        0}, {{x,         Min[x /. zeros] - 0.2*(Max[x /. zeros] - Min[x /. zeros]),         Max[x /. zeros] +          0.2*(Max[x /. zeros] - Min[x /. zeros]), (Max[x /. zeros] -            Min[x /. zeros])/M}}]},    Epilog ->     Table[{{Red, Disk[{x /. zeros[[i]], 0.}, {0.1, 0.05}]},       Text[Style[x /. zeros[[i]], Medium], {x /. zeros[[i]],         0.15}]}, {i, 1, Length[zeros]}]],    (*xeactly one fixed point*)    StreamPlot[   f, {x, (x /. zeros[]) - 1., (x /. zeros[]) + 1.}, {y, -0.05,     0.05}, AspectRatio -> 0.1, ImageSize -> Large, Frame -> None,    StreamPoints -> {Table[{x,        0}, {{x, (x /. zeros[]) - 1., (x /. zeros[]) + 1.,         2./M}}]},    Epilog ->     Table[{{Red, Disk[{x /. zeros[[i]], 0.}, {0.04, 0.03}]},       Text[Style[x /. zeros[[i]], Medium], {x /. zeros[[i]],         0.06}]}, {i, 1, Length[zeros]}]]]]The problem is that in that version we have to adapt the plot range on the y-axis and also slighty change the size of the red dots every time we run it. It is easy to fix, but the code should show the idea. A typical output figure looks like this: M.
Posted 10 years ago

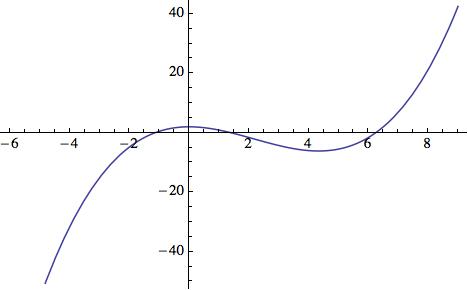

 Hi,this is probably overkill, but well, it produces something close to what you want, I guess...I used a different function to show a more interesting case.f[x_] := -1.3 x^2 + 0.2 x^3 + 2This function looks like this: The program is a bit longer than the one given above, but still quite straight forward.. (*First get the fixed points of the flow*) zeros = NSolve[f[x] == 0, x];  (*Determine rough number of arrows; the program adds some arrows at the beginning and the end*) M = 12.;  Show[ (*base coordinate line*)   Join[{Graphics[    Line[{{Min[x /. zeros] -         0.2 (Abs[Abs[Max[x /. zeros]] - Min[x /. zeros]]),        0}, {Max[x /. zeros] +         0.2 (Abs[Abs[Max[x /. zeros]] - Min[x /. zeros]]), 0}}]]}, (*mark the fixed points and label them*)  Table[Graphics[{Disk[{x /. zeros[[k]], 0}, 0.1],      Text[Style[x /. zeros[[k]], Medium], {x /. zeros[[k]],        0.4}]}], {k, 1, Length[zeros]}], (*draw the arrows*)  Table[Graphics[{Thick, {Arrowheads[Medium],       Arrow[{{Min[x /. zeros] -           0.2 (Abs[Abs[Max[x /. zeros]] - Min[x /. zeros]]) +           k/M (Abs[Abs[Max[x /. zeros]] - Min[x /. zeros]]),          0}, {Min[x /. zeros] -           0.2 (Abs[             Abs[Max[x /. zeros]] - Min[x /. zeros]]) + (k +               0.01 f[Min[x /. zeros] -                  0.2 (Abs[Abs[Max[x /. zeros]] - Min[x /. zeros]]) +                  k/M (Abs[Abs[Max[x /. zeros]] - Min[x /. zeros]])])/            M (Abs[Abs[Max[x /. zeros]] - Min[x /. zeros]]),          0}}]}}], {k, 0, M + Floor[0.4*M]}]], ImageSize -> Large]This is the output: It's in a very basic form and should be cleaned up, but does the trick.Cheers,M.
Posted 10 years ago

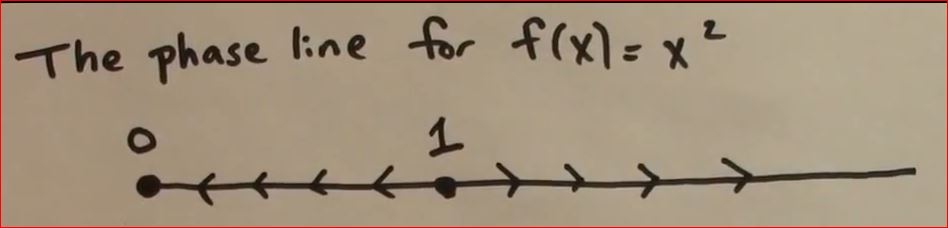

 Thanks.  I am fine with solving the problem, what I dont know how to make with Mathematic is what I am showing in the picture.  Hope this explains my problem better. Posted 10 years ago
 How about StreamPlot?StreamPlot[{x - 1, 0}, {x, 0, 2}, {y, 0, 1}]or brute force?Graphics[ Table[  Arrow[If[    x < 1, {{x, 0}, {x - 0.2, 0}}, {{x, 0}, {x + 0.2, 0}}]], {x, 0,    2, .2}] ]
Posted 10 years ago
 The second solution is closer but I am still missing the dots and numbers.  Is there a way to add them?  I know it is simple to do by hand.  Would you recommend using a drawing program to make it and add it as a picture?  I am needing this for a text book on dynamic systems that I am writing.   That's why it is really important to have all of the parts.  I would really like to have a closed circle and an open circle to show the unstable and stable points.   Thanks
Posted 10 years ago

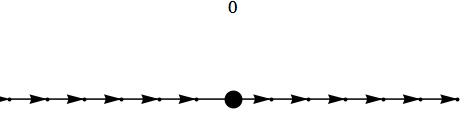

 BTW, the flow shown on the line in the post by Jake for f=x^2 is incorrect. It seems to show an unstable fixed point at x=1. The flow that corresponds to D[x,t]=x^2 has only one fixed point at x=0. That fixed point is "semistable". The code in my post below will not work for f=x^2. This one will: zeros = DeleteDuplicates[NSolve[f[x] == 0, x, Reals]]; M = 12.; If[Length[zeros] == 0, Print["There are no zeros."],   If[(Min[x /. zeros] - Max[x /. zeros]) != 0,    Show[Join[{Graphics[       Line[{{Min[x /. zeros] -            0.2 (Abs[Abs[Max[x /. zeros]] - Min[x /. zeros]]),           0}, {Max[x /. zeros] +            0.2 (Abs[Abs[Max[x /. zeros]] - Min[x /. zeros]]), 0}}]]},      Table[Graphics[{Disk[{x /. zeros[[k]], 0}, 0.1],        Text[Style[x /. zeros[[k]], Medium], {x /. zeros[[k]],          0.4}]}], {k, 1, Length[zeros]}],     Table[Graphics[{Thick, {Arrowheads[Medium],         Arrow[{{Min[x /. zeros[]] -             0.2 (Abs[Abs[Max[x /. zeros]] - Min[x /. zeros]]) +             k/M (Abs[Abs[Max[x /. zeros]] - Min[x /. zeros]]),            0}, {Min[x /. zeros] -             0.2 (Abs[               Abs[Max[x /. zeros]] - Min[x /. zeros]]) + (k +                 0.01 f[Min[x /. zeros] -                    0.2 (Abs[Abs[Max[x /. zeros]] - Min[x /. zeros]]) +                    k/M (Abs[                    Abs[Max[x /. zeros]] - Min[x /. zeros]])])/              M (Abs[Abs[Max[x /. zeros]] - Min[x /. zeros]]),            0}}]}}], {k, 0, M + Floor[0.4*M]}]], ImageSize -> Large],   Show[Join[{Graphics[      Line[{{(x /. zeros[]) - 1, 0}, {(x /. zeros[]) + 1,          0}}]]}, {Graphics[{Disk[{x /. zeros[], 0}, 0.04],        Text[Style[x /. zeros[], Medium], {x /. zeros[],          0.4}]}]},     Table[Graphics[{Thick, {Arrowheads[Medium],         Arrow[{{(x /. zeros[]) - 1. + k/M *2.,            0}, {(x /. zeros[]) -             1 + (k + 0.01 f[(x /. zeros[]) - 1. + 2.*k/M ])/M *2.,            0}}]}}], {k, 0, M}]]]]] For f[x_] := x^2this gives the correct flow M.
Posted 10 years ago
 http://reference.wolfram.com/mathematica/ref/VectorPlot.html
