# Plot planes in 3D by using the extreme points

Posted 10 years ago

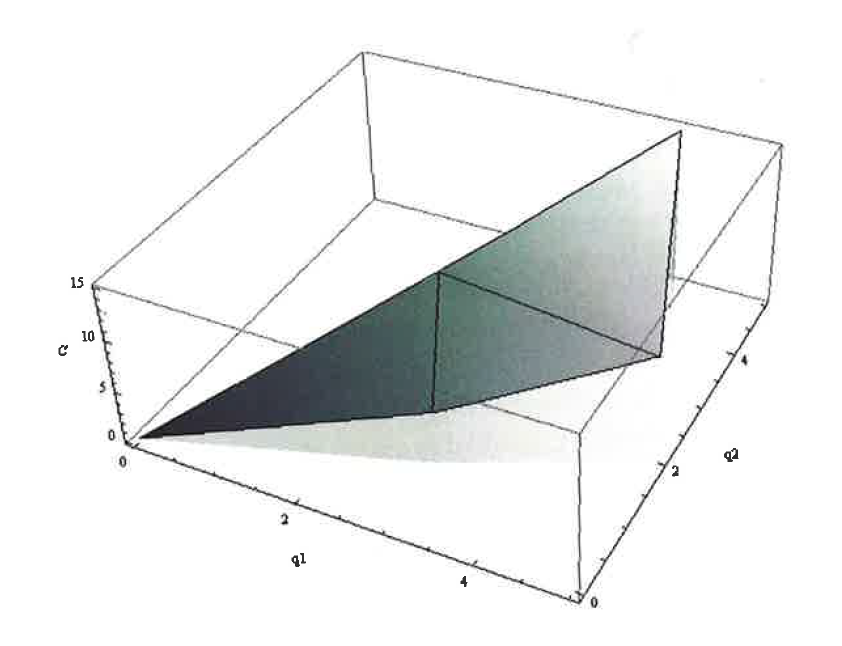

 Hello!Could you please help me with the following problem. Let's say I have the following points in 3D space (q1,q2,C):(2,3,6)(3,1,5)(4,5,15)(5,2,10)(0,0,0)What I want to do is to plot planes where the above points are the extreme points. It should also be such that it only plots the lowest plane if a specific point (q1,q2) lies on severals planes. See the attached picture to understand how the output should look like. What is the easiest way to make such a plot for arbitrary data (3D)?Thank you very much for your time and consideration!Alex
5 Replies
Sort By:
Posted 10 years ago
 Now some time later I thought it could be fantastic to also include a gradient plot of the above figure. I mean a plot similar to this one (2d): but where we do not have a specific function, but instead the planes defined by the code provided by Mr. Craig Carter (once again, thank you). I would be very grateful if someone could help me with that. Thank you very much!
Posted 10 years ago
 Thank you so much! That was exactly what I wanted - and it works for other data as well. I am very very grateful!
Posted 10 years ago
 --
Posted 10 years ago

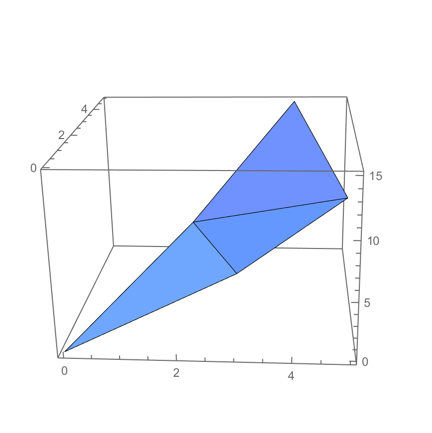

 I am unsure if this is what you are looking for, but perhaps it will help:data3D = {{2, 3, 6},  {3, 1, 5},  {4, 5, 15},  {5, 2, 10},  {0, 0, 0}  }Needs["TetGenLink`"]Use a convex hull:{pts, surface} = TetGenConvexHull[data3D];Graphics3D[GraphicsComplex[pts, Polygon[surface]]]Write a function that determines the normal of a triangle, which can be applied to pts and surfacenormal[xyz_, vertList_] := Block[  {u, v},  u = xyz[[vertList[]]] - xyz[[vertList[]]];  v = xyz[[vertList[]]] - xyz[[vertList[]]];  Cross[u, v]  ]Select only those triangles which have their normals pointing up:bottomTriangles = Select[surface, (normal[pts, #].{0, 0, 1} > 0) &]Graphics3D[GraphicsComplex[pts, Polygon[bottomTriangles]], Axes -> True, BoxRatios -> {1, 1, 2/3}] Posted 10 years ago
 Dear Mr. W. Craig CarterThank you very much for your answer - it was very very helpful. I was wondering whether it is possible to add a gradient plot (as described in my post below), so that these planes also can be illustrated in another way. I would be very grateful if you could help.Thank you very much for your time and consideration.
