Thanks for the update. I was wondering if the original poster was still around years later (certainly the problem still is). With the extra information I improved on the annotated code. After your description it makes more sense now. What seems less reasonable is the way WL neural nets handle this use case. I hadn't seen that ResizeLayer also has the drawback of being unable to work on 4D arrays much like DeconvolutionLayers. Excellent job figuring all this out. Your new version looks like a type of Progressive Growth GAN where the steps are mixed as its upsampled.

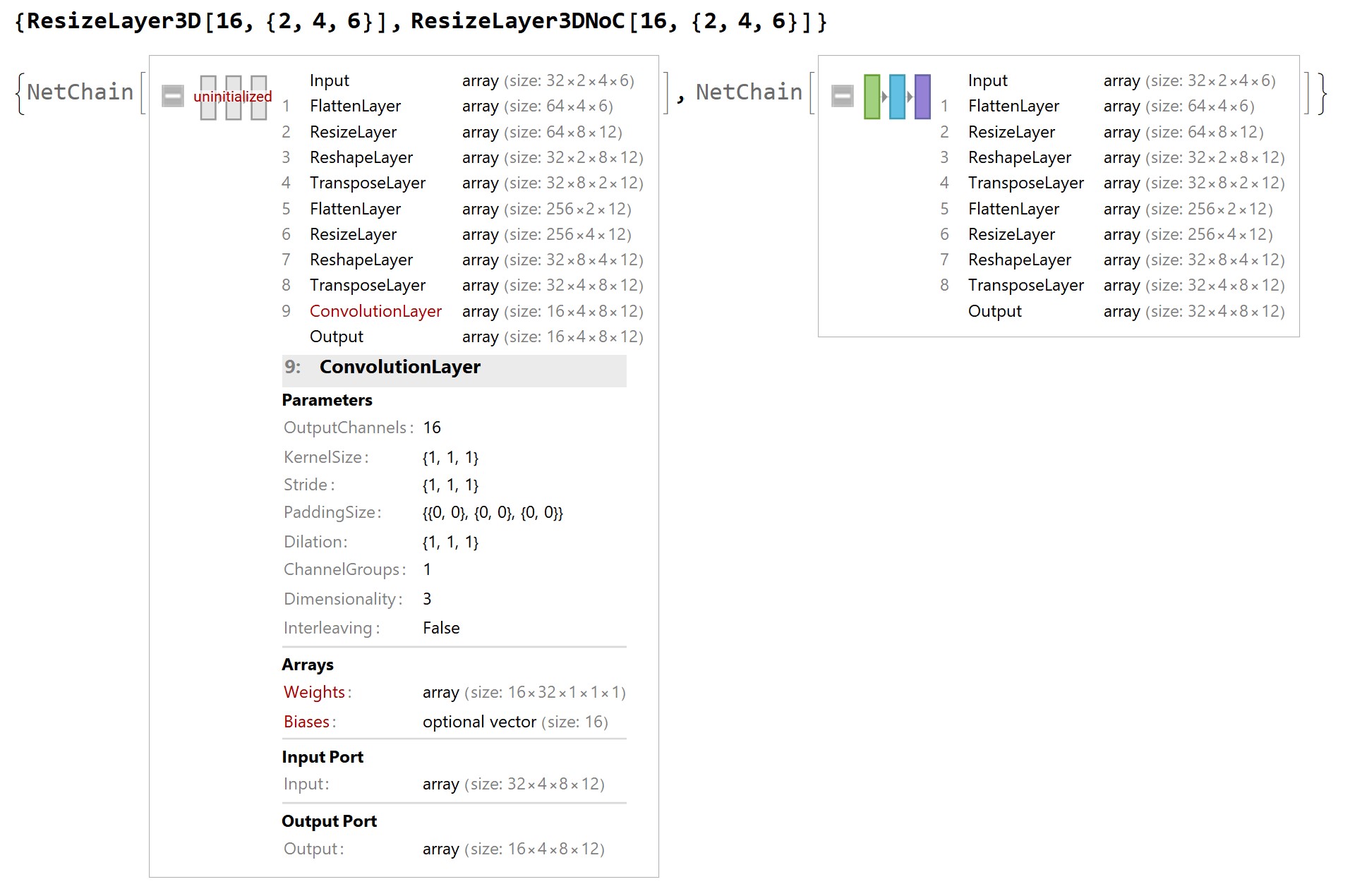

ResizeLayer3D[n_, {dimInx_, dimIny_, dimInz_}] :=
 Block[{sc = 2},
  NetChain[{
    (* Flattens the first two levels so because the next layer only \
works on 2D arrays *)
    FlattenLayer[1, "Input" -> {n sc, dimInx, dimIny, dimInz}],
    (* Doubles the size of the last two dimensions *)
    ResizeLayer[{Scaled[sc], Scaled[sc]}],
    (* Reshapes the array back to its original order but with the \
last two dimensions scaled up from previous layer *)
    ReshapeLayer[{n sc, dimInx, sc dimIny, sc dimInz}],
    (* Transposes 2nd and 3rd dimensions so that previously unscaled \
dimension can be actioned *)
    TransposeLayer[2 <-> 3],
    (* Again flatten array a level so that the next later can \
actually action it *)
    FlattenLayer[1],
    (* Scale only the dimension that hasn't been actioned yet *)
    ResizeLayer[{Scaled[sc], Scaled[1]}],
    (* reshape back to original structure but the array now has been \
scaled up *)
    ReshapeLayer[{n sc, sc dimIny, sc dimInx, sc dimInz}],
    (* importantly, transpose the dimensions back to their original order since it was \
changed above*)
    TransposeLayer[2 <-> 3],
    (* Now a convolution can be applied to the upsampled up data *)
      ConvolutionLayer[n, 1]}
   ]
  ]

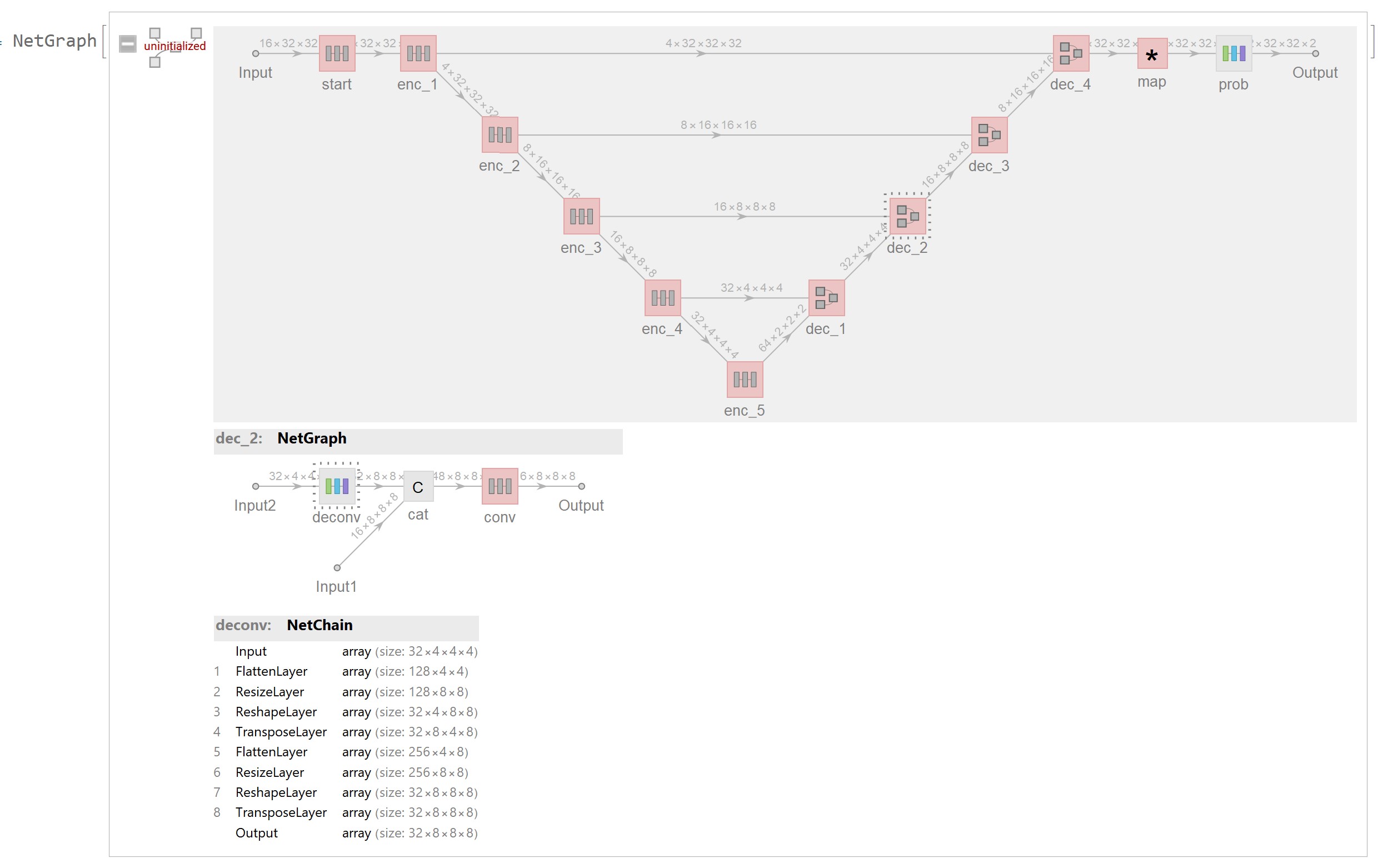

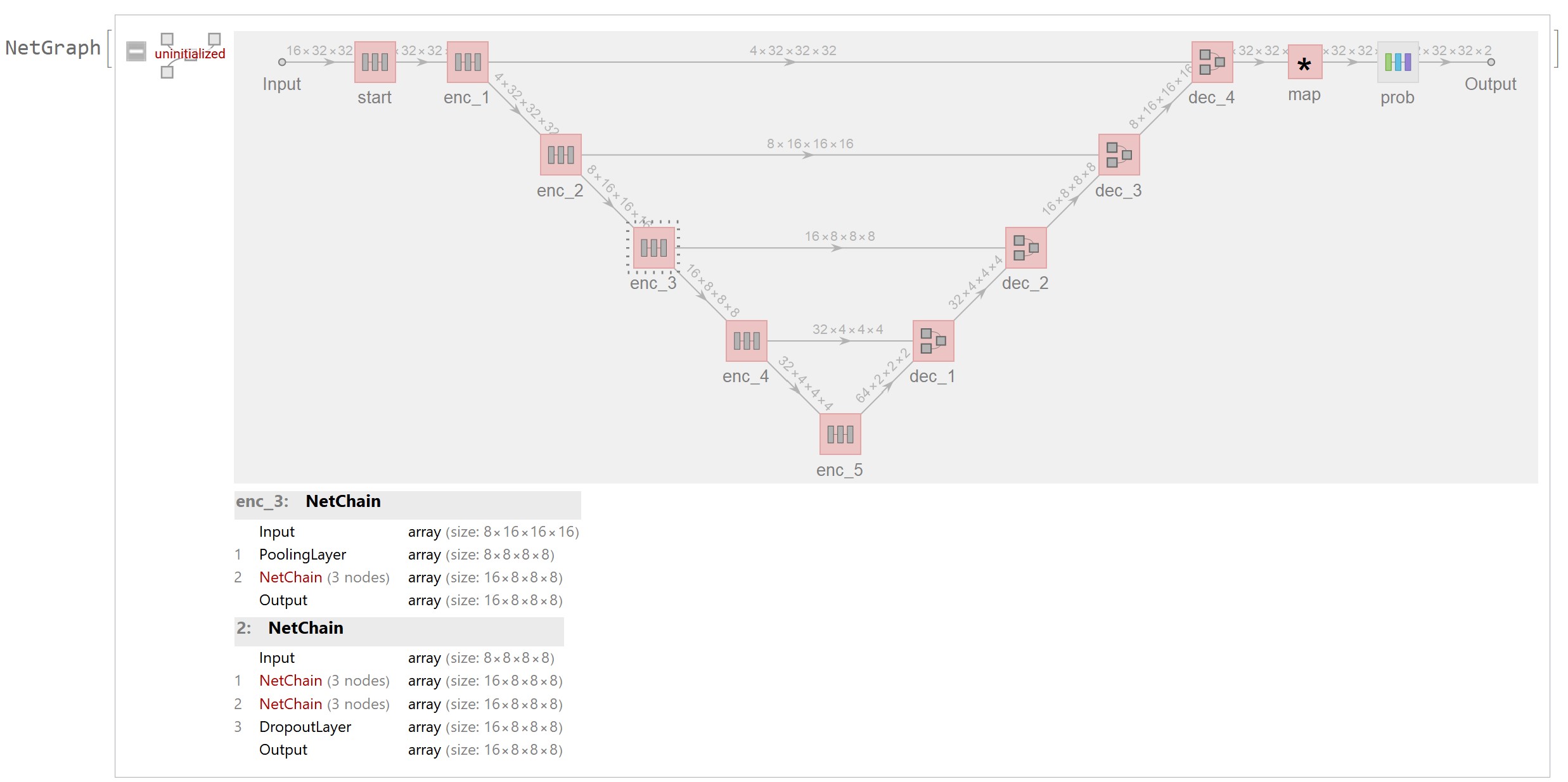

As an extra addition I actually don't use the function anymore in my implementation of UNET. For the encoding layers I use the PoolingLayer, which does not have any trainable parameters. So for symmetry of the network in the deconvolution part I also use only the upscaling without convolution.

The convolution is done later after concatenating it with the information passed though the skip layers.
