Estimation of water velocity in a video using Mathematica

Hi,

Today morning I measured the velocity of river flow by velocimeter and it was 1.15 m/s.

For studying the ability of the Mathematica in video file processing, I took a 60-second video from the water surface with a smartphone. I attached herewith the video file.

Is it possible to estimate this important parameter in this video using the Mathematica?

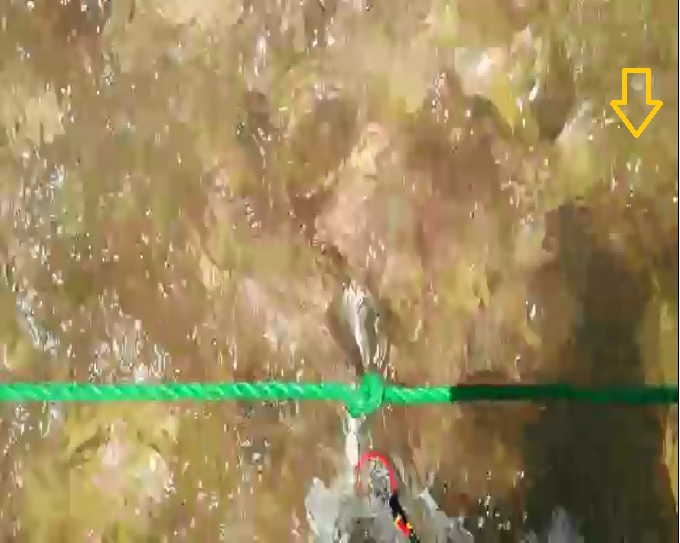

enter image description here

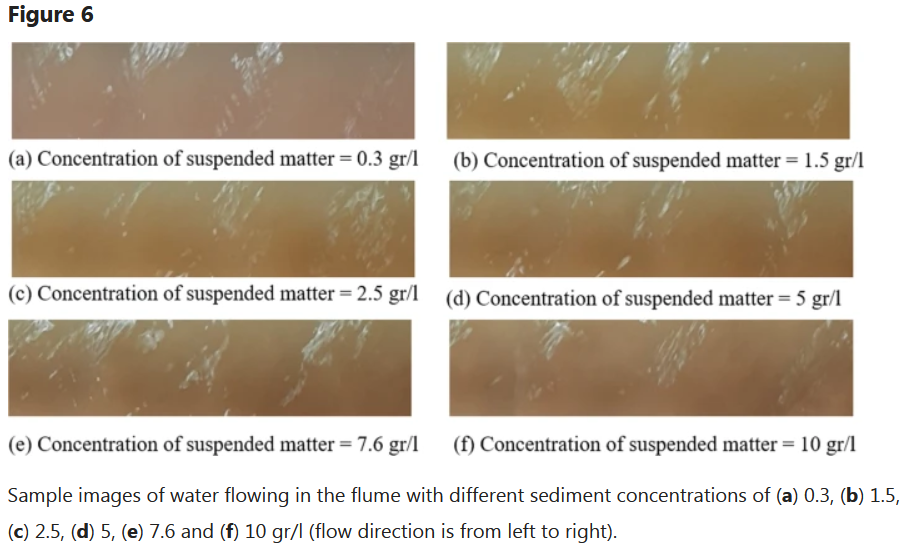

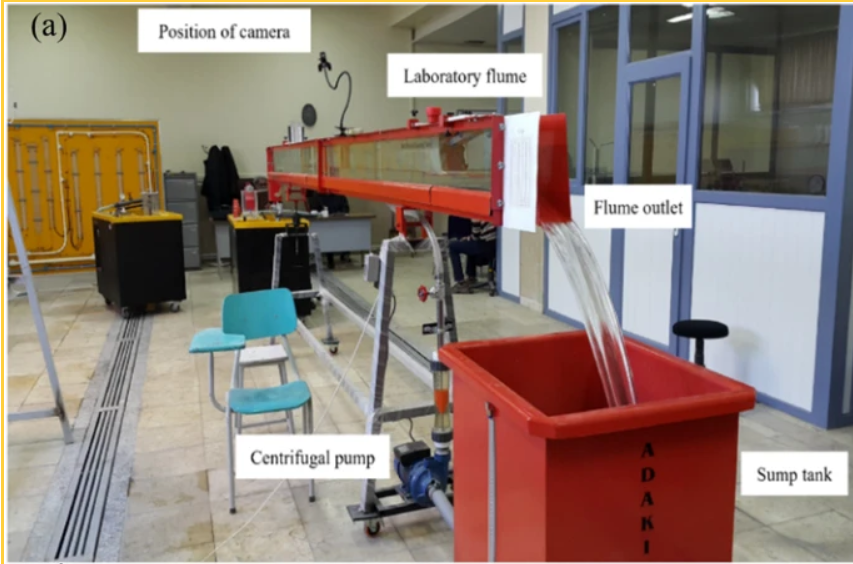

Although, two years ago, we did a study for estimating water suspended sediment in a laboratory flume, based on image processing (NOT VIDEO). We got the expected results and it was excellent.enter image description here enter image description here

Thank you for your help.

Attachments:
POSTED BY: M.A. Ghorbani
5 Replies
Posted 4 years ago

I am not familiar with Mathematica video processing capabilities. However, this does seem like a very interesting problem.

I do not know if standard image descriptors would be enough to reliably track the motion of ripples in the water, but maybe one of the algorithms in ImageKeypoints could be used to estimate flow in pixel space by tracking the movement of descriptor features. Pixel-space motion could be converted to real-world speeds if you know the distance of the camera from the water and the camera's calibration parameters.

To use machine learning, I believe you would need a diverse dataset with hundreds --or perhaps thousands-- of flow measurements and videos of different rivers. If you built a large dataset, you might be able to use the audio from the video to improve the flow rate estimate as well.

I have done some basic filtering and data exploration in the notebook below.

I do not know enough about turbulence to even begin to estimate the flow rate just from frame-to-frame differences in the water's surface. I would try to collect more data and see what accuracies can be achieved using standard image regression algorithms like wolfram's Predict - which uses gradient-boosted trees, neural networks, etc.

Frame-to-frame difference after image blur:

blur

Frame-to-frame difference after GaussianFilter:

gaussian

Frame-to-frame difference after LaplacianGaussianFilter:

laplacian

Sorry that I have no definitive solutions, this is a challenging problem!

Best of luck, Mr. Ghorbani. Be sure to write a reply if you think of any interesting solutions yourself!

POSTED BY: Alec Graves

Dear Alec,

You did a great job. Thank you so much for your effort. Estimating water velocity with the camera/smartphone is very important. I will take a high-quality video from water surfaces in specific dimensions and try some things. I will definitely let you know if I find a solution.

I really really appreciate your help.

POSTED BY: M.A. Ghorbani
Posted 4 years ago
POSTED BY: Updating Name
Posted 4 years ago

Alec,

You did a good job. This is a very important issue in water engineering.

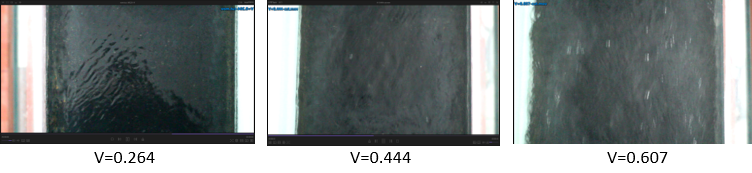

In the lab, I measured the velocity of water for 20 velocities e.g. 0, 0.264, 0.444,......, and 0.607 m/s. I enclosed only a sample of videos. It may be helpful in achieving the expected results. enter image description here

POSTED BY: Alex Teymouri
Posted 4 years ago

Alec,

I took a 60 seconds high-quality video from another river. The surface water velocity is 1.66 m/s. It may be better for video analysis. Please see the enclosed video.

Alex

Attachments:
POSTED BY: Alex Teymouri
