[WSS22] Topological invariants in discrete lattice via graph rewriting

POSTED BY: Sinuhe Perea
3 Replies

Nice work, Sinuhe!

@Sinuhe Perea , the tutorial that you have produced is all using simple discrete lattice geometries. Those topological invariants that make the pseudo-particles, the skyrmions...the mobius strip.

sizes = Range[2, 7];
  {"Increasing size of the quiver geometries ->"},
  {"Linear (Z)",
   Sequence @@ Table[LineQuiver[n, ImageSize -> 130], {n, sizes}]},
  {"Cyclic/periodic (Zn)",
   Sequence @@ Table[CycleQuiver[n], {n, sizes}]},
   Sequence @@
    Table[TriangularQuiver[n, ImageSize -> 85], {n, sizes}]},
   Sequence @@ Table[CubicQuiver[n, ImageSize -> 150], {n, sizes}]},
  {"Bundle E=BxF", TrivialBundleGraph[12, 4, ImageSize -> 300]},
  {"Mobius strip", MobiusStrip[12]}},
 Alignment -> Left

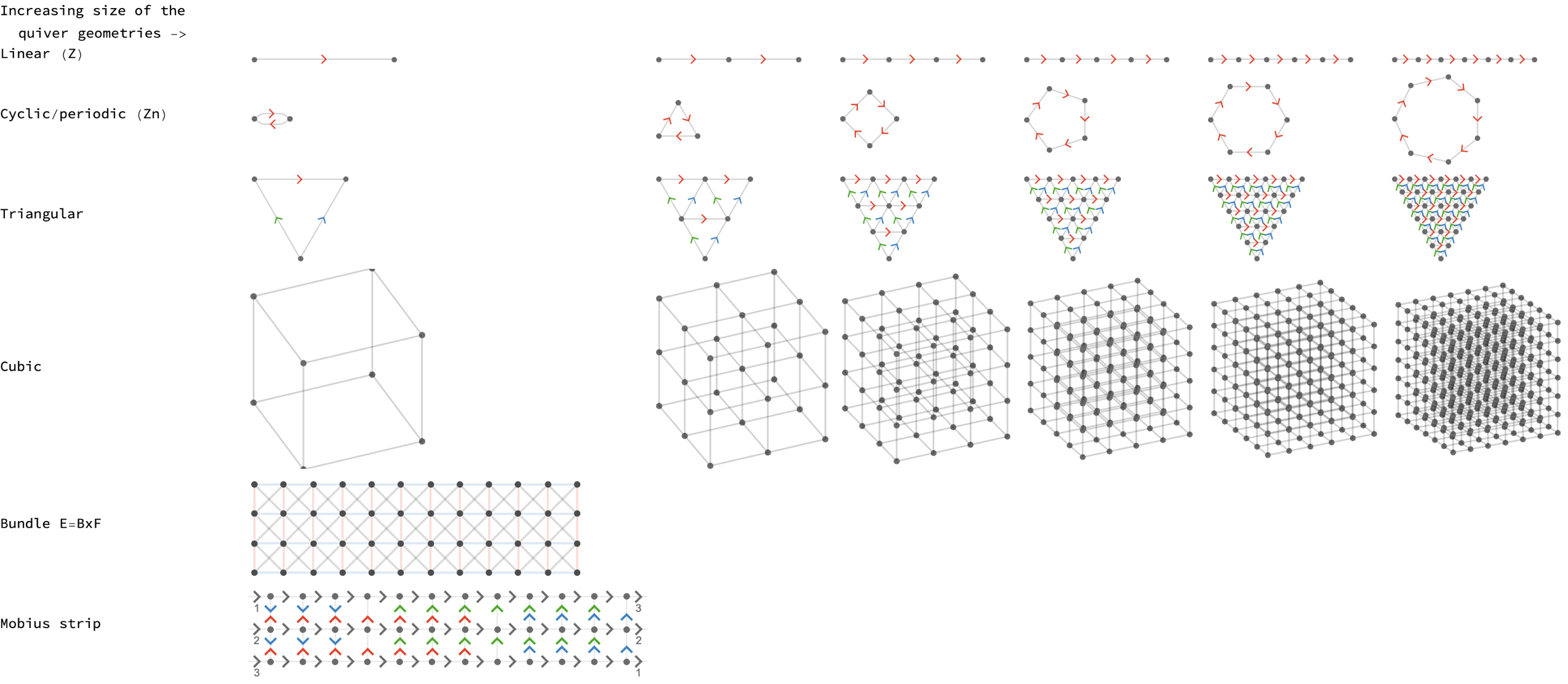

Increasing Size, Quiver Geometries

   FindAllBundleSections[QuiverBundleGraph[bss, fbr]]], fbr^bss,
  N[Length[FindAllBundleSections[QuiverBundleGraph[bss, fbr]]]/
    fbr^bss, 4]},

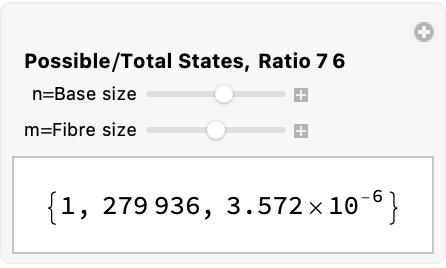

 Style["Possible/Total States, Ratio" Dynamic[bss] Dynamic[fbr], 10,
  Bold], {{bss, 4, "n=Base size"}, 3, 10, 1,
  ImageSize -> Tiny}, {{fbr, 3, "m=Fibre size"}, 2, 10, 1,
  ImageSize -> Tiny}]

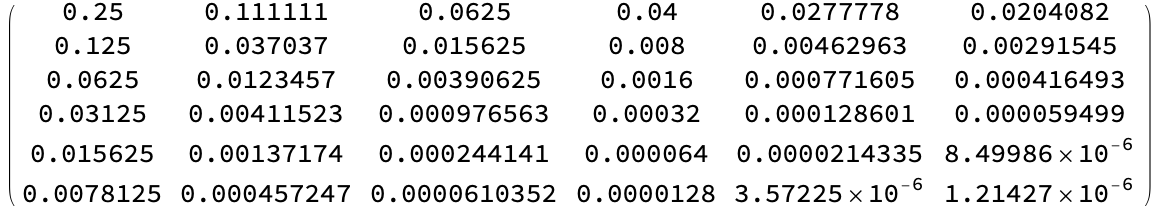

 Table[N[Length[FindAllBundleSections[QuiverBundleGraph[i, j]]]/
    j^i], {i, 2, 7}, {j, 2, 7}]]

@Sinuhe Perea QuiverBundleGraph produces such massive quantities that you could be an Ambassador of Wolfram. It's like how Spongebob broke the laws of physics.

QuiverBundleGraph Manipulate

MatrixForm QuiverBundleGraph

QuiverBundleGraph, corresponds to the poetic interpretation of @Jonathan Gorard we saw his lambda calculus in C++, it was so good to see how even primes are odd.

Manipulate[Module[{hh, sky}, hh = \[Pi]/2*hel;
  sky = Flatten[
      {st Cos[\[Theta]] - Cos[\[Theta] + hh] Sin[-\[Pi] st]/20,
       st Sin[\[Theta]] - Sin[\[Theta] + hh] Sin[-\[Pi] st]/20,
       -Cos[-\[Pi] st]/20},
      {st Cos[\[Theta]] + Cos[\[Theta] + hh] Sin[-\[Pi] st]/20,
       st Sin[\[Theta]] + Sin[\[Theta] + hh] Sin[-\[Pi] st]/20,
       +Cos[-\[Pi] st]/20}
     {st, 0, 1, 0.05},
     {\[Theta], 0, 2 \[Pi], 0.1}
     ], 1];
        RGBColor[1, 0.19, 0.59, 1],
        Arrow[Tube[#, 0.001]
         ]} & /@ sky]
   ImageSize -> 500,
   Boxed -> False]

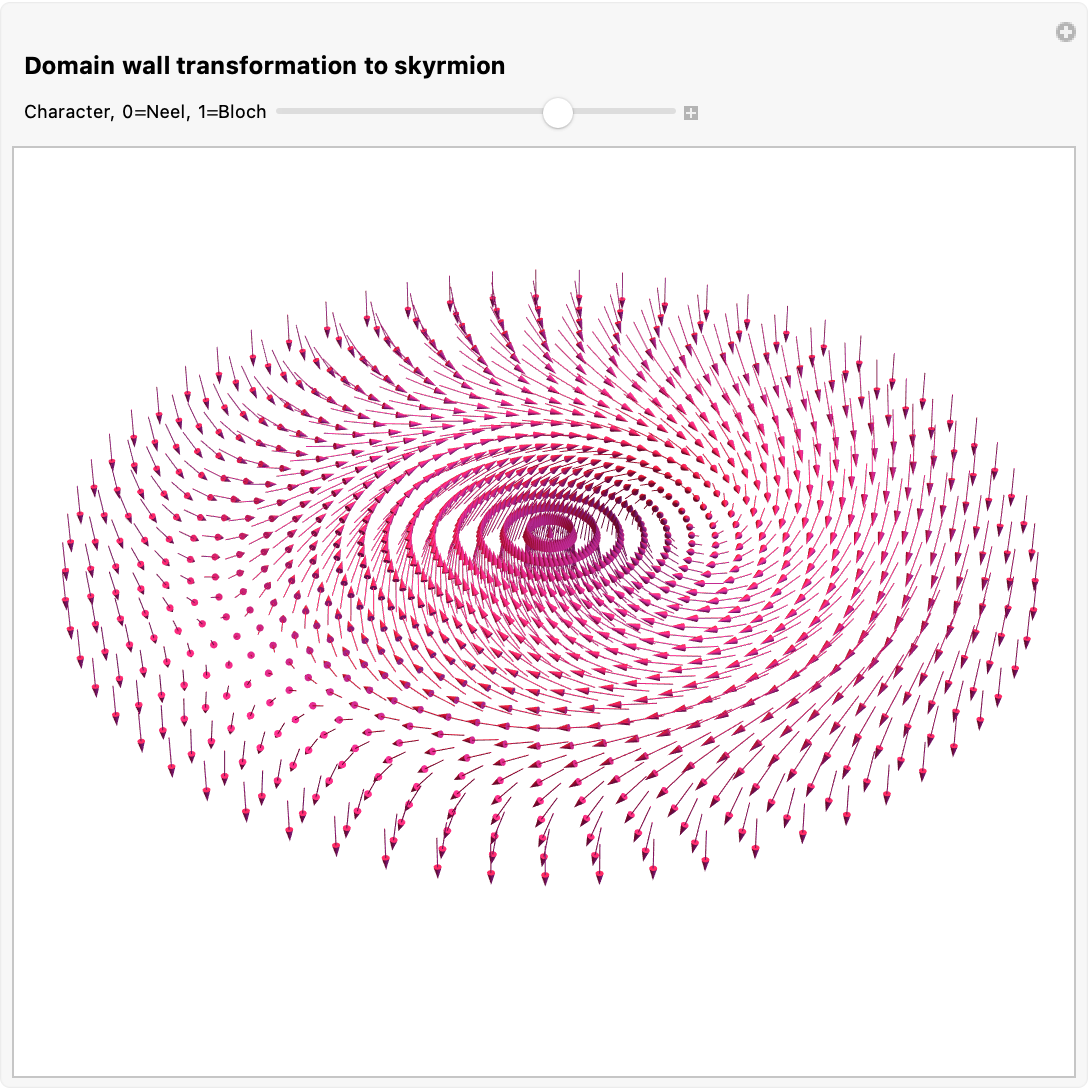

  ], Style["Domain wall transformation to skyrmion", 12, Bold],
 {{hel, 0.01, "Character, 0=Neel, 1=Bloch"},
  0, 1, 0.01, ControlPlacement -> Top}

Domain Wall Transformation

It's this physical-inspired system, the domain walls @Sinuhe Perea how is it elastic? There's a focus on quantum processes and not states. And looking back at the isomorphisms in the Ruliad they are smooth and continuous lovely treatment that you have produced, @Sinuhe Perea .

POSTED BY: Dean Gladish

enter image description here -- you have earned Featured Contributor Badge enter image description here Your exceptional post has been selected for our editorial column Staff Picks and Your Profile is now distinguished by a Featured Contributor Badge and is displayed on the Featured Contributor Board. Thank you!

POSTED BY: Moderation Team
