# [WSS22] Implementing Adinkras in the Wolfram Physics Project

Posted 1 year ago

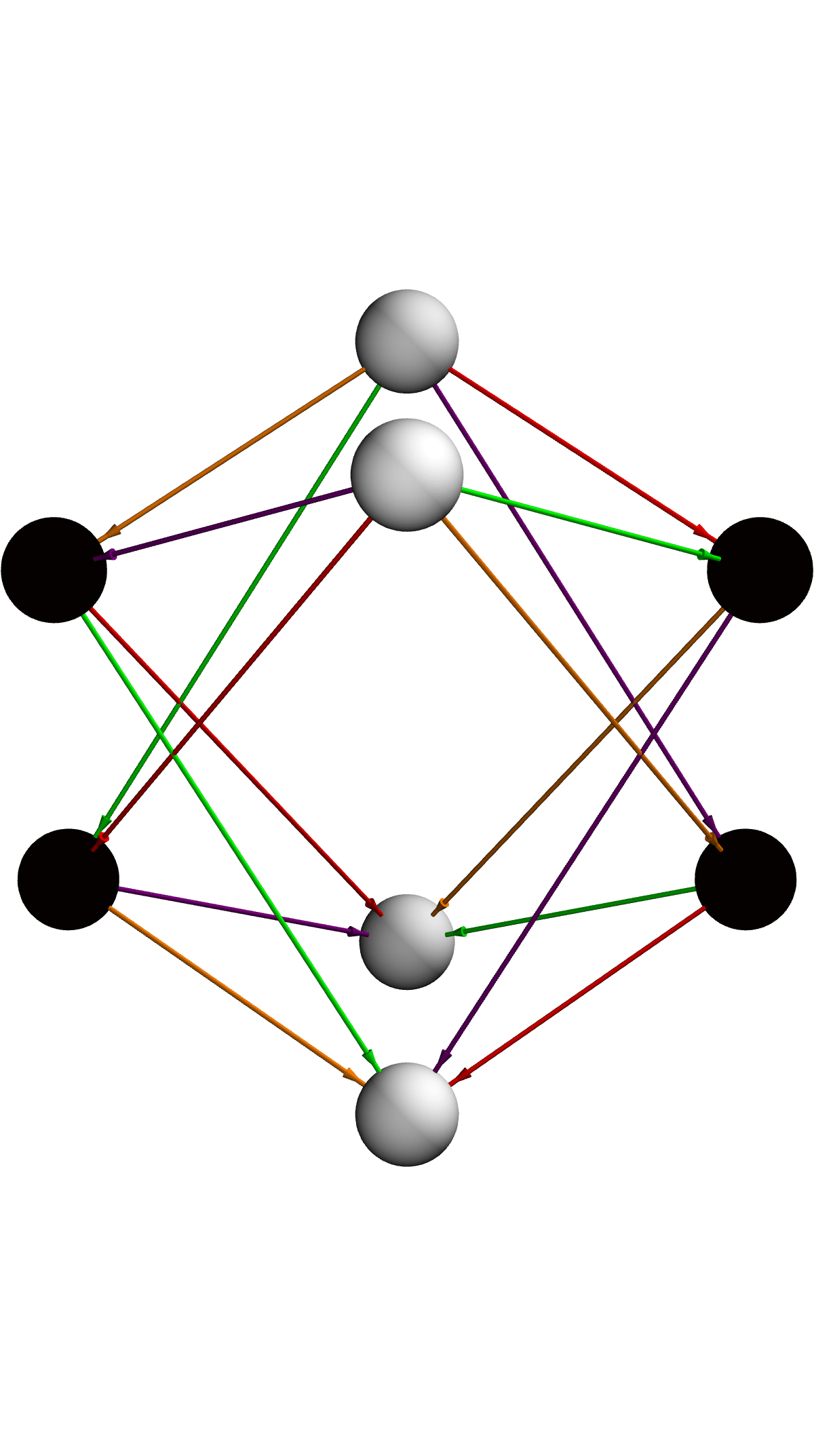

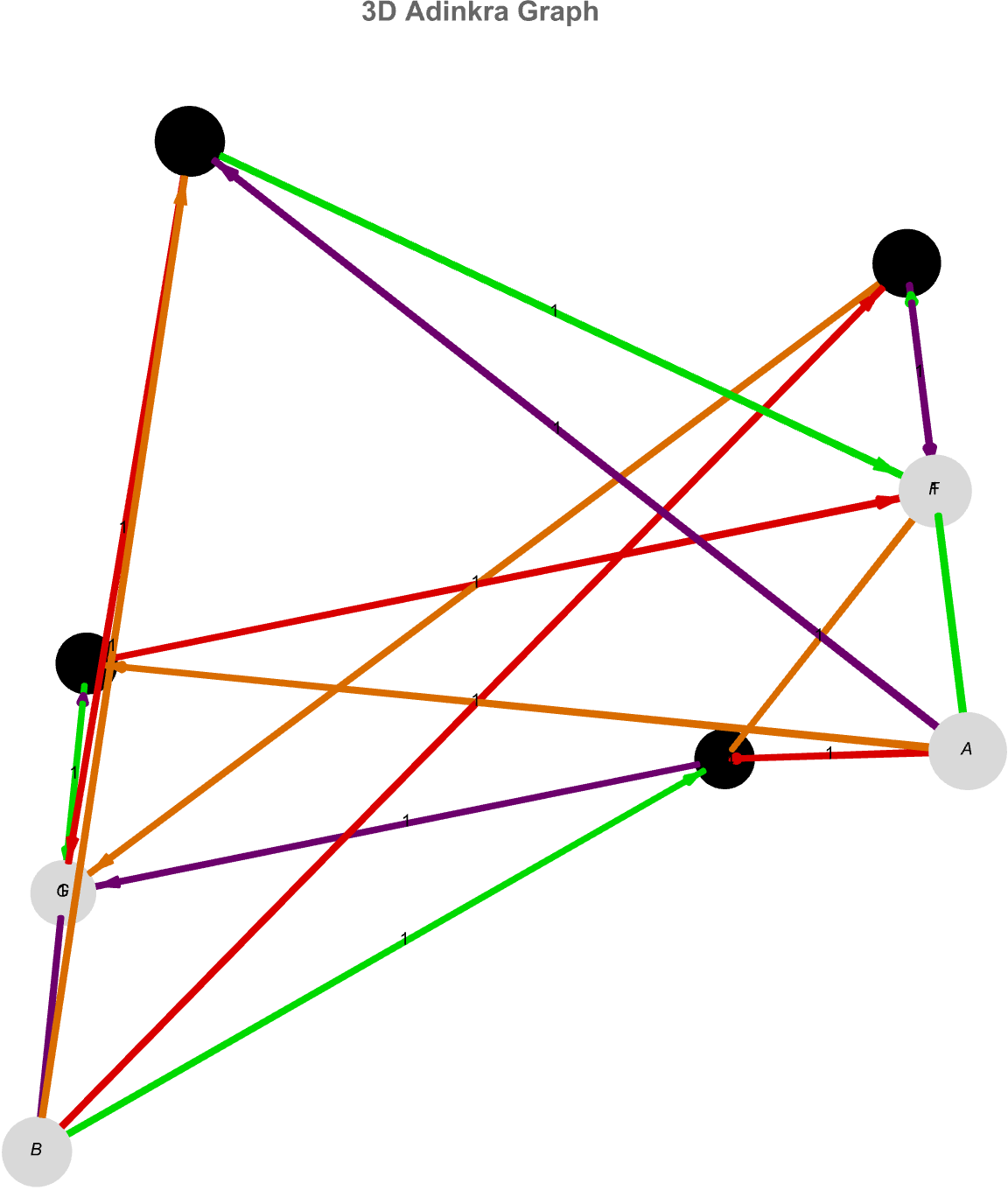

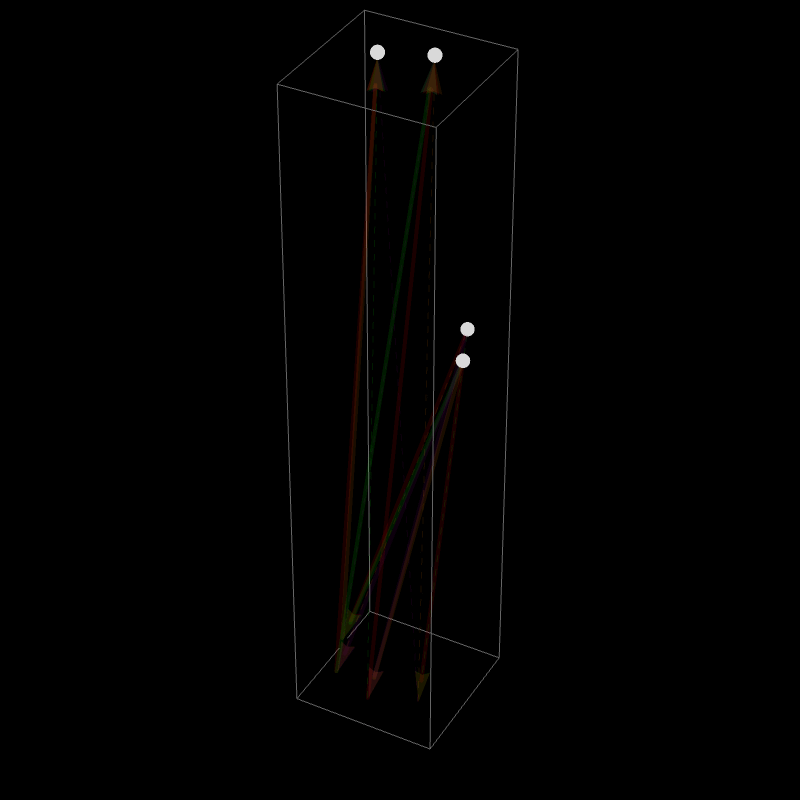

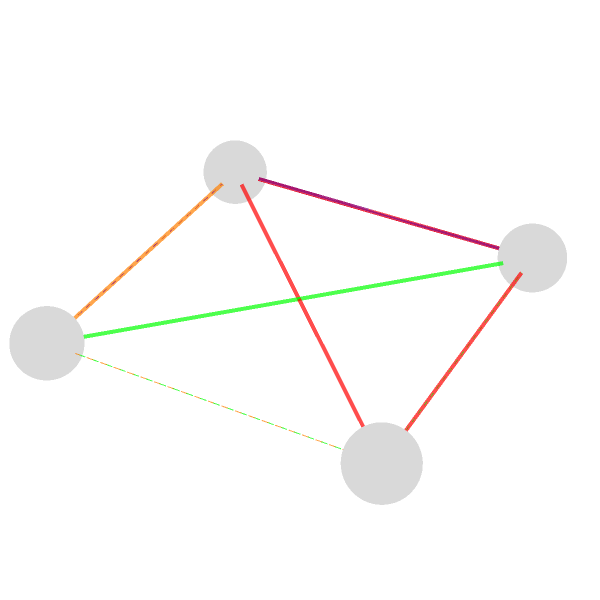

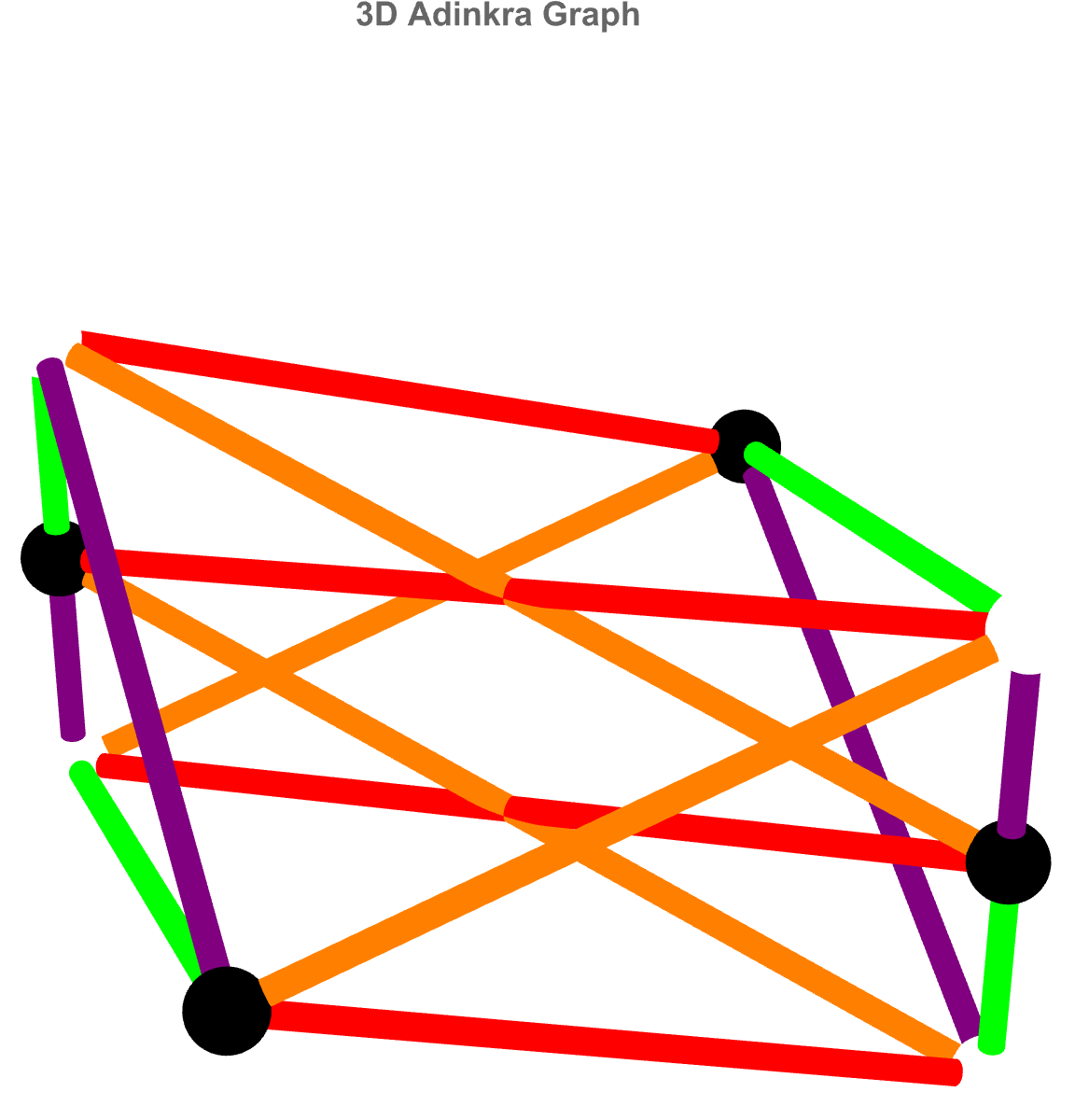

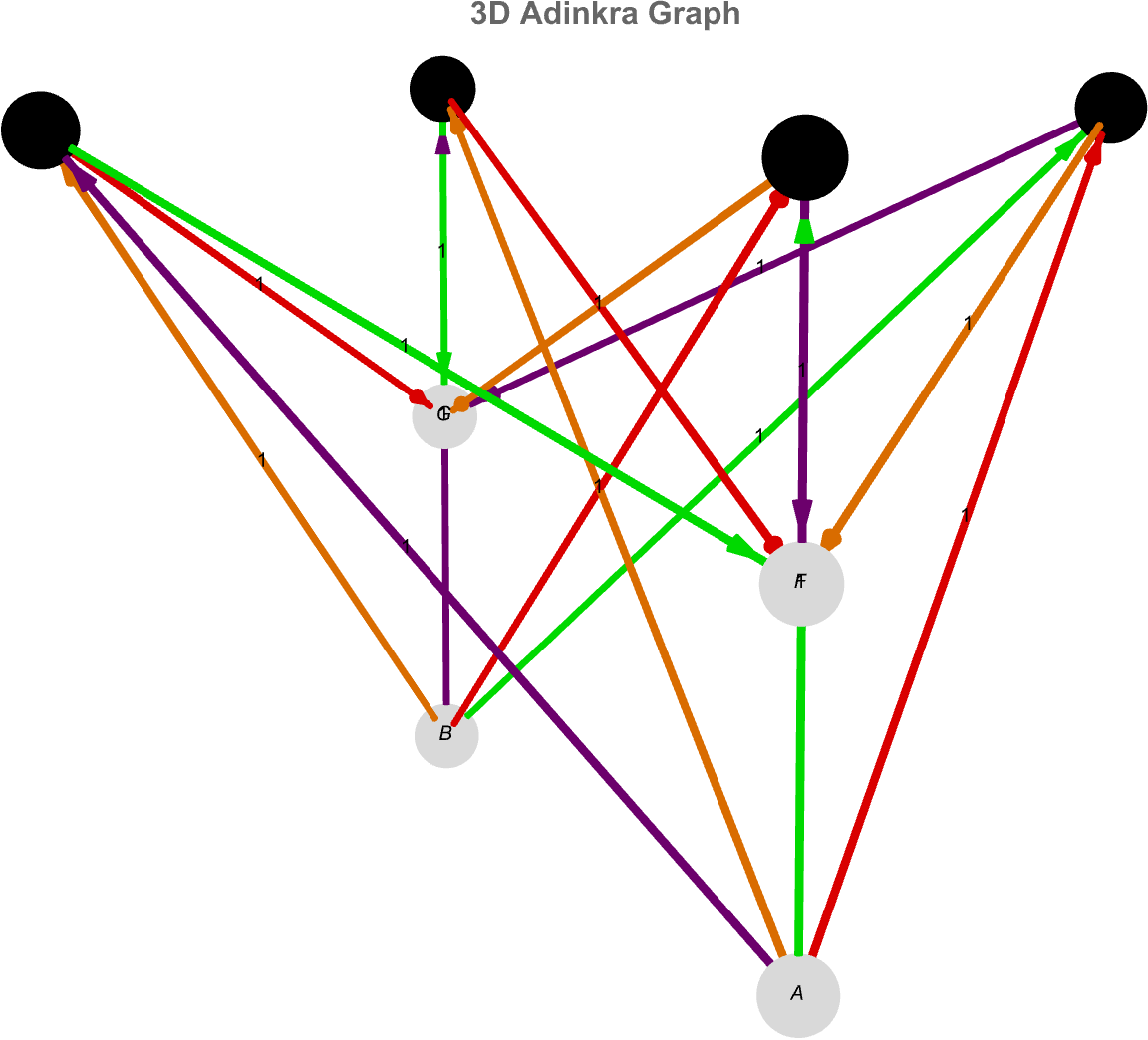

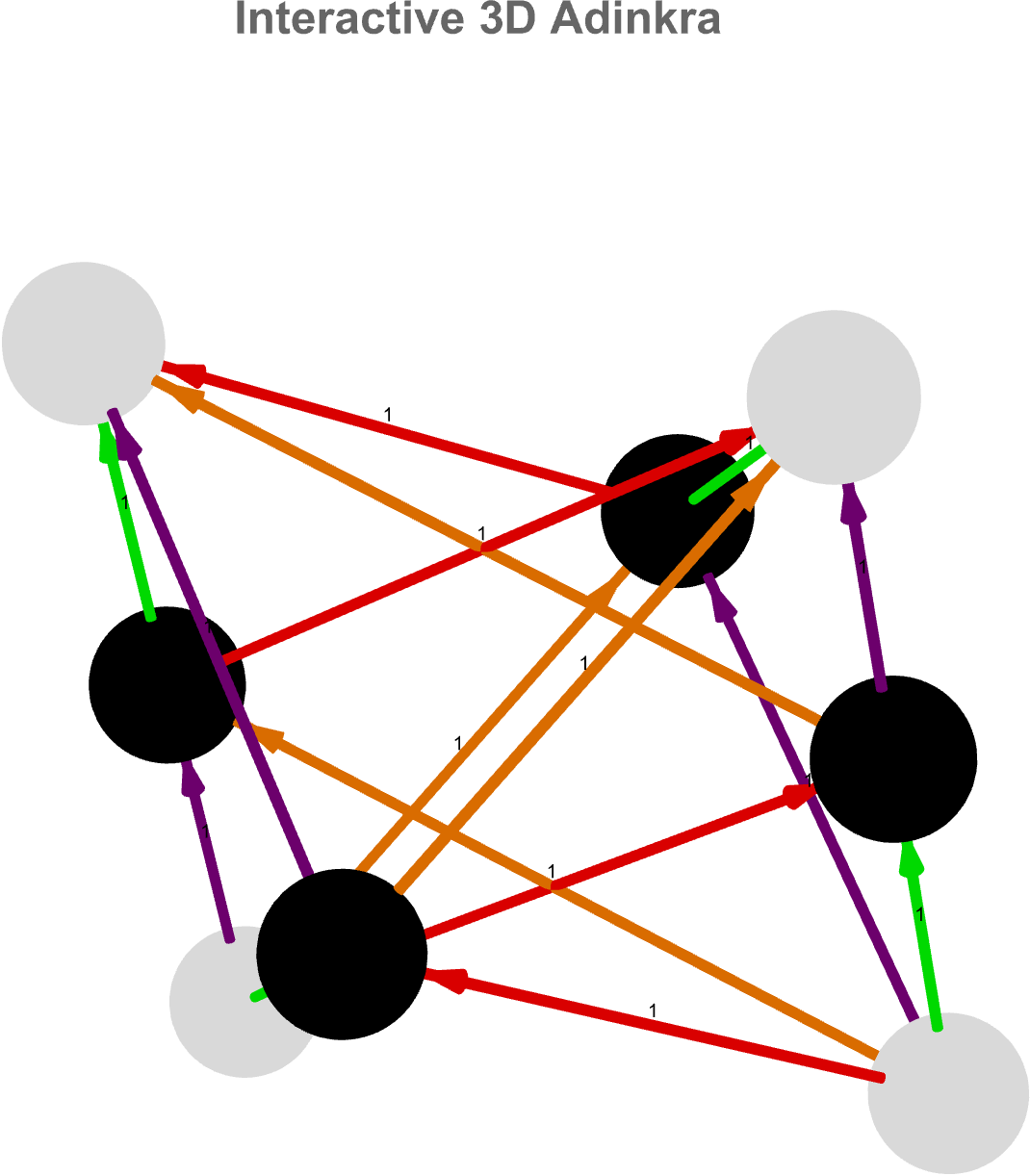

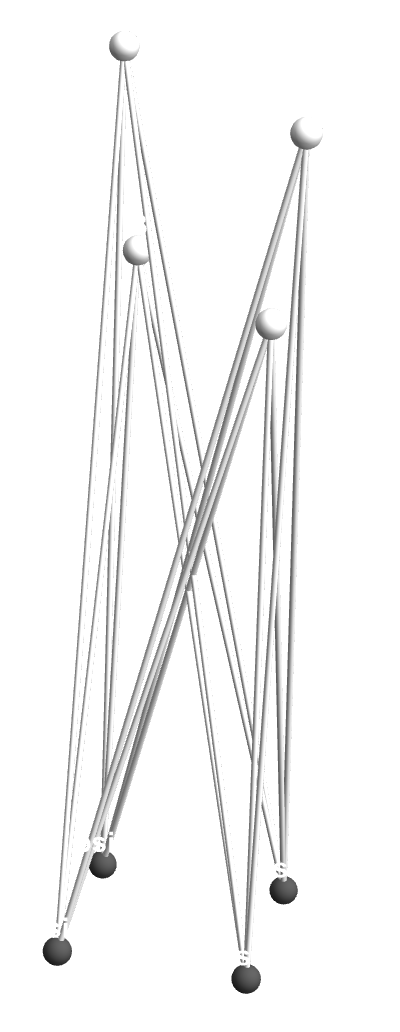

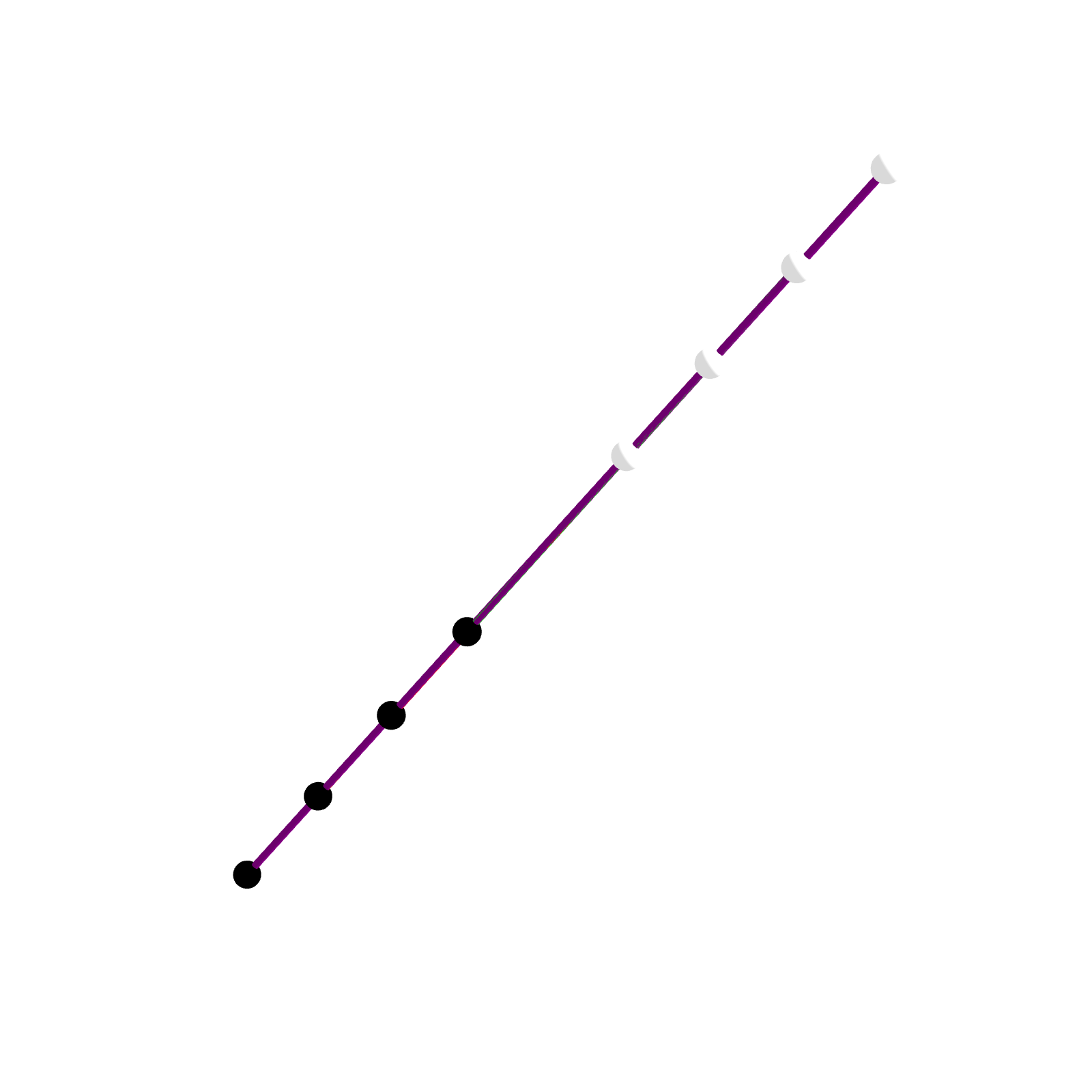

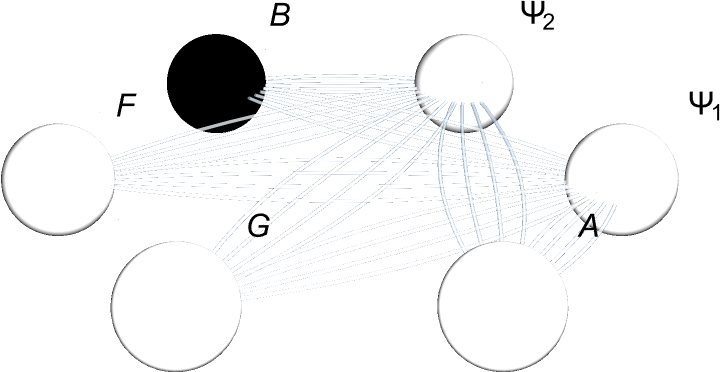

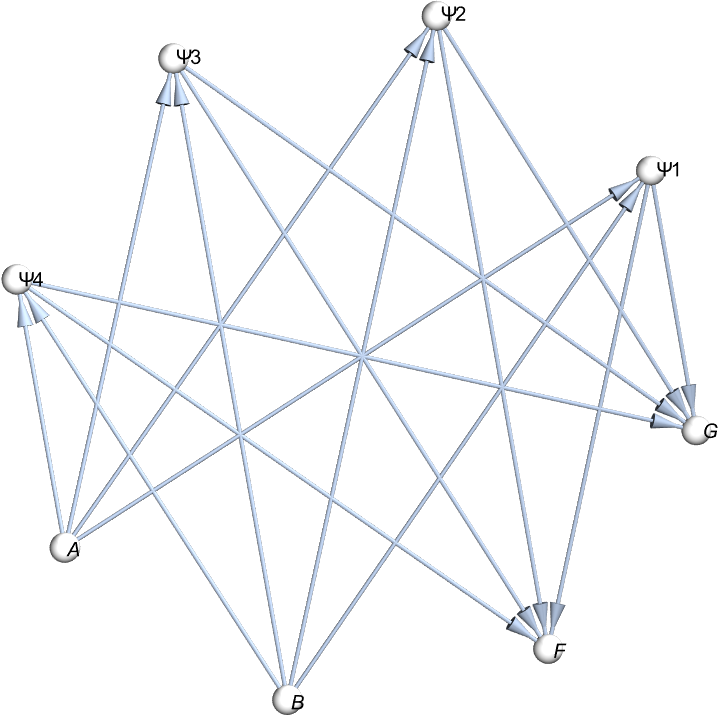

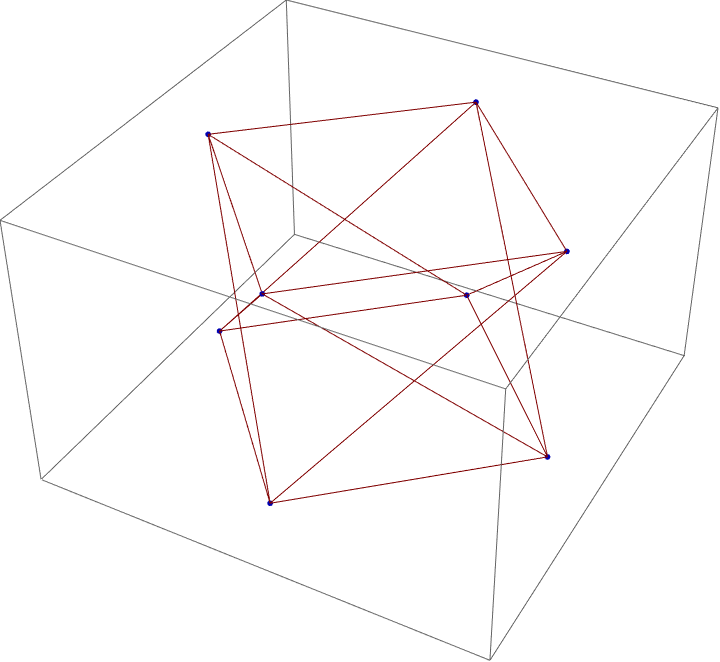

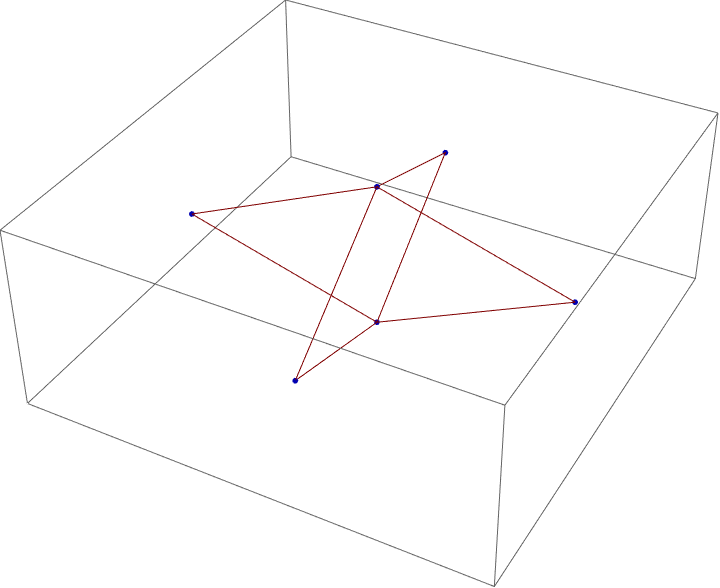

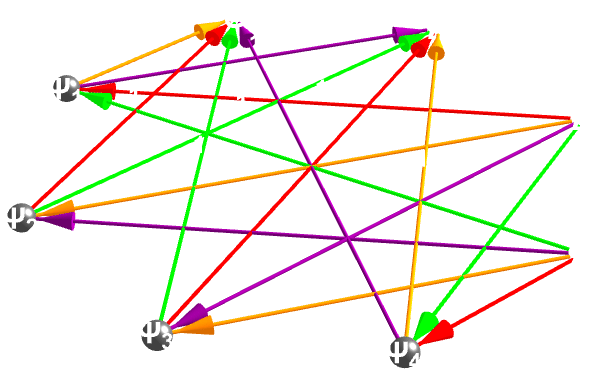

 These mathematical objects representing supersymmetric particles, in physics oh my goodness! AdinkraVertexCoordinates[vertices_, vertexweights_] := Module[ {coords, ids, coordsList}, coords = Table[{i, j}, {i, -2, 2}, {j, -2, 2}]; ids = Flatten[Position[vertexweights, #]] & /@ {-4, -3, -2, -1, 1, 2, 3, 4}; coordsList = vertices[[#]] -> coords[[#]] & /@ ids; coordsList] AdinkraGraph[vertices_, vertexweights_, edges_, edgeweights_, colors_] := Graph[Style[vertices[[#]], If[Sign[vertexweights[[#]]] > 0, White, Black]] & /@ Range[Length[vertices]], Style[edges[[#]], colors[edges[[#]][[1]]], Thick] & /@ Range[Length[edges]], VertexWeight -> vertexweights, EdgeWeight -> edgeweights, VertexCoordinates -> AdinkraVertexCoordinates[vertices, vertexweights], DirectedEdges -> False, ImageSize -> Medium] vertices = {A, B, F, G, \[CapitalPsi]1, \[CapitalPsi]2, \[CapitalPsi]3, \ \[CapitalPsi]4}; vertexweights = {1, 2, 3, 4, -2, -1, -3, -4}; edges = {A -> \[CapitalPsi]2, B -> \[CapitalPsi]4, \[CapitalPsi]3 -> F, \[CapitalPsi]1 -> G, A -> \[CapitalPsi]4, B -> \[CapitalPsi]2, \[CapitalPsi]1 -> F, \[CapitalPsi]3 -> G, A -> \[CapitalPsi]1, B -> \[CapitalPsi]3, \[CapitalPsi]4 -> F, \[CapitalPsi]2 -> G, A -> \[CapitalPsi]3, B -> \[CapitalPsi]1, \[CapitalPsi]2 -> F, \[CapitalPsi]4 -> G}; edgeweights = {2, -1, 4, 3, 4, -3, -2, -1, 1, 2, -3, 2, 3, 4, 1, -2}; colors = <|1 -> Green, 2 -> Purple, 3 -> Orange, 4 -> Red|>; HorizontalSpacing[n_] := Range[n] - (n + 1)/2; GraphPlot3D[ AdinkraGraph[vertices, vertexweights, edges, edgeweights, colors]] Swapping pairs of original pairings that's the kind of thing it's like word within the word. AdinkraGraph[vertices_, edges_] := Module[{n = Length[vertices], coordsList}, coordsList = vertices[[#]] -> CirclePoints[n][[#]] & /@ Range[n]; Graph3D[vertices, edges, VertexStyle -> Table[vertices[[i]] -> Directive[EdgeForm[Black], White], {i, n}], VertexCoordinates -> coordsList, ImageSize -> Medium]] vertices = {A, B, F, G, \[CapitalPsi]1, \[CapitalPsi]2, \[CapitalPsi]3, \ \[CapitalPsi]4}; edges = {A -> \[CapitalPsi]2, B -> \[CapitalPsi]4, \[CapitalPsi]3 -> F, \[CapitalPsi]1 -> G, A -> \[CapitalPsi]4, B -> \[CapitalPsi]2, \[CapitalPsi]1 -> F, \[CapitalPsi]3 -> G, A -> \[CapitalPsi]1, B -> \[CapitalPsi]3, \[CapitalPsi]4 -> F, \[CapitalPsi]2 -> G, A -> \[CapitalPsi]3, B -> \[CapitalPsi]1, \[CapitalPsi]2 -> F, \[CapitalPsi]4 -> G}; GraphPlot3D[AdinkraGraph[vertices, edges]] I love your visually accurate Adinkra, it's like the number of re-writing operations just isn't enough so you've got these re-writing rules. LMatricesToAdinkraGraph[L1_, X1_, Y1_, Z1_, bosons_ : {A, B, F, G}, fermions_ : {Subscript[\[CapitalPsi], 1], Subscript[\[CapitalPsi], 2], Subscript[\[CapitalPsi], 3], Subscript[\[CapitalPsi], 4]}, n_ : 2] := Module[{states, vertices, edges}, states = MatrixToAdinkraStates[L1, X1, Y1, bosons, fermions, n][[n + 1]]; vertices = DeleteDuplicates@Flatten@states; edges = Rule @@@ states; AdinkraGraph[vertices, edges]] L1 = {{1, x}, {2, w}, {3, y}, {4, z}}; X1 = {{1, z}, {2, w}, {3, x}, {4, y}}; Y1 = {{1, w}, {2, z}, {3, y}, {4, x}}; Z1 = {{-1, 0, 0, 0}, {0, -1, 0, 0}, {0, 0, -1, 0}, {0, 0, 0, -1}}; GraphPlot3D[LMatricesToAdinkraGraph[L1, X1, Y1, Z1], Boxed -> False, EdgeStyle -> Directive[Thickness[0.005], Opacity[0.5]], VertexSize -> Large, VertexLabelStyle -> Directive[Black, FontSize -> 16], PlotRange -> All, ViewPoint -> {0, -2, 1}] It's the supersymmetric physics from the set of L-matrices, that generate this visually accurate one and we can make smaller & larger adinkras. We could do the WolframModel rules or a multi-way system setup. I think that this is one of the best things that my eyes have ever seen.
