Hi Bob,

would this work for you?

Plot[{y/324, y/275, y/221}, {y, 200, 1000}, PlotLegends -> {"Oil", "Propane", "Gas"}, Frame -> True, FrameLabel -> {"x-Axis", "y-Axis"},
LabelStyle -> Directive[Bold, 15],RotateLabel-> False]

Actually the RotateLabel function should not be necessary, but the labelling of the y-axis overlapped with the figure without it. I suppose that's a minor glitch in the Cloud.

Cheers,

Marco Marco

Dear Bob,

I could't immediately make it work on Wolfram Alpha. But if you need the figure the following could work. You sign up for a free (!) account for the Wolfram Programming Cloud:

http://www.wolfram.com/programming-cloud/pricing/

It runs the Wolfram Language and you can achieve what you want by opening a new notebook and typing:

Plot[{y/324, y/275, y/221}, {y, 200, 1000},PlotLegends -> {"Oil", "Propane", "Gas"},Frame-> True]

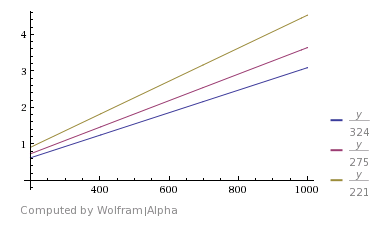

You should see something like this

The Wolfram Cloud is more powerful than Wolfram Alpha alone - it can make W|A requests. You get a whole lot of functionality for free. It gives you a great deal of flexibility of how to format the output.

Cheers,

Marco

Assuming you have Mathematica you could use this rather hackish solution:

Show[ReleaseHold[
  WolframAlpha[
   "plot [y/324, y/275, y/221 for y=200 to 1000 ]", {{"Plot", 1},
    "Input"}]],
 AxesLabel -> {HoldForm["x axis!"], HoldForm["y axis!"]},
 PlotLabel -> HoldForm["Awesome title!"]]

In that I'm querying Alpha for the Mathematica expression necessary to create the plot it displays, and Show[]ing it with the options we want. You can add any Plot options you want.

There's probably an easier way to do this, but this was the first I found.

Although I'm a little confused as to why you can't just do Plot[{y/324, y/275, y/221}, {y, 200, 1000}]...
