How to change the form and color of the asymptote?

Posted 22 days ago
f[x_] := 1 - 1/(x - 9/2)
        Plot[f[x], {x, 0, 10}, Filling -> Axis,
         Ticks -> {Range[20], Automatic}, AxesOrigin -> {0, 0},
         ExclusionsStyle -> Directive[Dashed, AbsoluteThickness[0.5], Red],
         Exclusions -> "Discontinuities"]

In the above code, why is this segment of code unable to change the style and color of the automatically generated asymptotes? How can we set and modify the style and color of the asymptotes?

ExclusionsStyle -> Directive[Dashed, AbsoluteThickness[0.5], Red]

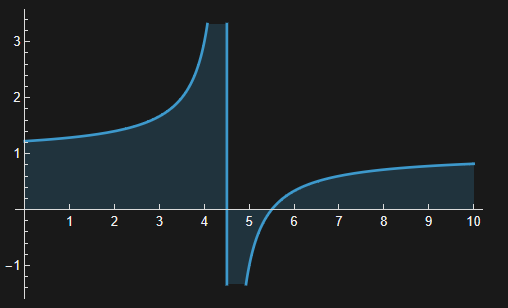

enter image description here

POSTED BY: Wen Dao
7 Replies

Here are three workarounds:

f[x_] := 1 - 1/(x - 9/2)
Show[Plot[f[x], {x, 0, 10}, Filling -> Axis, PlotStyle -> None,
  Ticks -> {Range[20], Automatic}, AxesOrigin -> {0, 0}],
 Plot[f[x], {x, 0, 10},
  ExclusionsStyle -> Directive[Dashed, AbsoluteThickness[0.5], Red],
  Exclusions -> "Singularities"]]
Plot[f[x], {x, 0, 10}, Filling -> Axis, ExclusionsStyle -> None,
 Exclusions -> "Singularities",
 Epilog -> {Dashed, AbsoluteThickness[0.5], Red,
   Map[InfiniteLine[#, {0, 1}] &,
    SolveValues[{FunctionDiscontinuities[f[x], x], y == 0}, {x, y}]]}]
Plot[f[x], {x, 0, 10}, Filling -> Axis,
 ExclusionsStyle -> None, Exclusions -> "Singularities",
 GridLines -> {SolveValues[FunctionDiscontinuities[f[x], x], x], None},
  GridLinesStyle -> Directive[Dashed, AbsoluteThickness[0.5], Red]]
POSTED BY: Gianluca Gorni
Posted 19 days ago

These three methods are excellent and solve the problem perfectly—thank you so much for your help!

POSTED BY: Wen Dao

An explicit Exclusions value changes the appearance of the asymptote:

f[x_] := 1 - 1/(x - 9/2);
Plot[f[x], {x, 0, 10}, Filling -> Axis,
 Ticks -> {Range[20], Automatic}, AxesOrigin -> {0, 0},
 ExclusionsStyle -> Directive[Dashed, AbsoluteThickness[0.5], Red],
 Exclusions -> 9/2]

Anyway, in this case I would recommend Exclusions -> "Singularities" instead of "Discontinuities".

POSTED BY: Gianluca Gorni
Posted 21 days ago

The asymptote is not displayed in red.

POSTED BY: Wen Dao

It seems that Filling completely kills the Exclusions:

pl = Plot[Ceiling[x], {x, -5, 5},
  Filling -> Axis,
  ExclusionsStyle -> Red, Exclusions -> Range[-5, 5]]
FreeQ[pl, Red]
POSTED BY: Gianluca Gorni
Posted 21 days ago

Unfortunately, I don't know how to produce what you want, but I can tell you that the problem is due to setting Filling. If you can do without Filling then you'll get your asymptote. If you need the filling, then you might need to create your own composite plot.

POSTED BY: Eric Rimbey
Posted 21 days ago

If you want both the effect of filling and the ability to freely change the style and color of the automatically generated function asymptote, how should the code be set?

POSTED BY: Wen Dao
