Mathematica TreePlot add duplicate elements in subtrees?

Bogd Timo
Posted 11 years ago

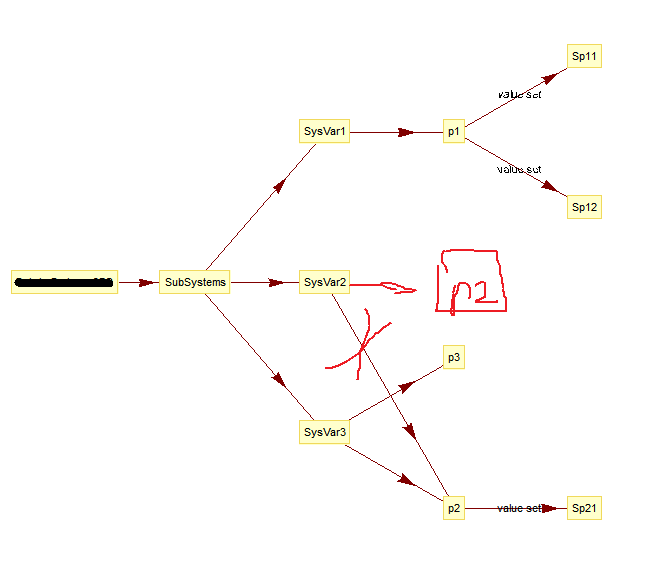

Is it possible to add p2 to both SysVar2,3 like I drawn ? Tree View

POSTED BY: Bogd Timo
9 Replies
Sort By:

It can be done quite easily using Graph:

 Graph[{Labeled[1, "1"], Labeled[2, "2"], Labeled[3, "3"],
  Labeled[4, "4"], Labeled[5, "5"], Labeled[6, "5"]}, {1 <-> 2,
  2 <-> 3, 2 <-> 4, 3 <-> 5, 4 <-> 6},
 GraphLayout -> "LayeredDigraphEmbedding"]

In this notation you separate the definitions for connections and for labels.

enter image description here
POSTED BY: Sander Huisman
Bogd Timo
Bogd Timo
Posted 11 years ago

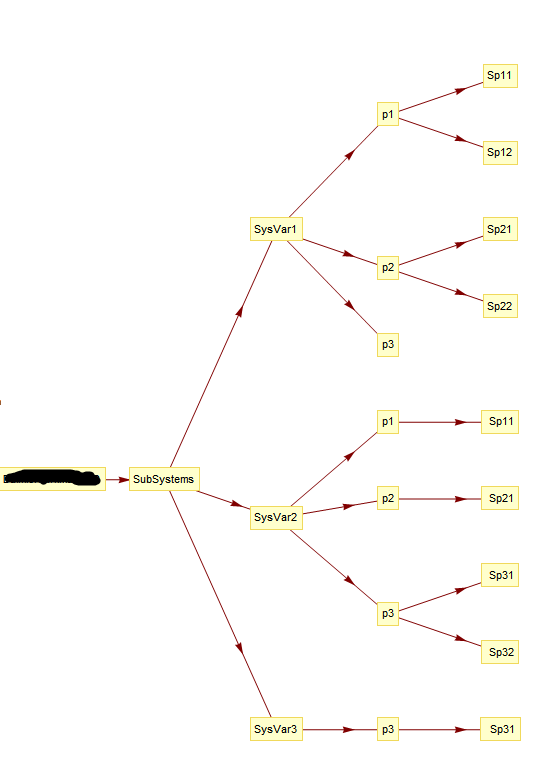

I used a combination of spaces and replacements , but it gets out of hand quickly. There must be added a feature for this IN THE NEXT MATHEMATICA VERSION FFS !!!

listNodesSubsystemView = Join[{ "XXX" -> "SubSystems"},
  Reverse[{"SubSystems" -> "SysVar1", "SubSystems" -> "SysVar2",
    "SubSystems" -> "SysVar3"}],
  Reverse[
   {"SysVar1" -> "p1S1", "SysVar1" -> "p2S1", "SysVar1" -> "p3S1",
    "SysVar2" -> "p1S2", "SysVar2" -> "p2S2", "SysVar2" -> "p3S2",
    "SysVar3" -> "p3S3"}],
  Reverse[{"p1S1" -> "Sp11", "p1S1" -> "Sp12", "p2S1" -> "Sp21",
    "p2S1" -> "Sp22",(*in system variant S1*)
    "p1S2" -> " Sp11", "p2S2" -> " Sp21", "p3S2" -> " Sp31",
    "p3S2" -> " Sp32",(*in system variant S2*)
    "p3S3" -> "  Sp31"}]];(*in system variant S3*)
TreeSubSystem =
 TreePlot[listNodesSubsystemView, Left,
     First[ First[listNodesSubsystemView]], VertexLabeling -> True,
     DirectedEdges -> True] /. "p2S1" | "p2S2" | "p2S3" -> "p2" /.
   "p3S1" | "p3S2" | "p3S3" -> "p3" /.
  "p1S1" | "p1S2" | "p1S3" -> "p1";

enter image description here
POSTED BY: Bogd Timo

Well one way, which is a REAL HACK is to replace one of your instances of

"p2"

by

"p2 "

I.e. add a space (which can be an invisible space (http://reference.wolfram.com/language/ref/character/InvisibleSpace.html)

But since TreeGraph is crating a connectivity graph, if these two vertices are not different in some way then it will, correctly, display the vertex once with multiple edges linking to it.
POSTED BY: David Reiss

By the way, the code in this thread shows how to rotate the text in the node labels:

http://community.wolfram.com/groups/-/m/t/395664
POSTED BY: David Reiss

Something Like this will work--it rotates the entire graph: getting the nodes to rotate back to horizontal is beyond my pay grade ;-)

Rotate[ TreeForm[A["S1", "S2", S3["wtf", B["S1", "f2"]]],
  DirectedEdges -> True], \[Pi]/2]
POSTED BY: David Reiss
Bogd Timo
Bogd Timo
Posted 11 years ago

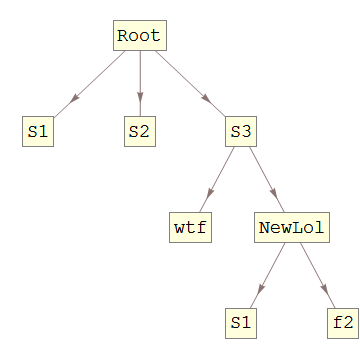

I found an easy way but the only thing I don't know is how to rotate the TreeForm plot to the left Any Ideas :( TreeForm[Root["S1", "S2", S3["wtf", NewLol["S1", "f2"]]], DirectedEdges -> True]

enter image description here
POSTED BY: Bogd Timo

I think that it is important to remember that these are Graph rendering functions (in the sense of being graph theoretic) rather than general Graphics functions. Their intent is to create a graphic representation of a graph theoretic data structure which involves edges and vertices.

To (mis) quote Gertrude Stein: "Node is a node is a node is a node."

But.... you could certainly figure out a way to algorithmically change the repeated right hand side vertices (perhaps on a layer by layer basis if that's your need) in a way that appends a different sequence of invisible spaces to each one as appropriate.

POSTED BY: David Reiss
Bogd Timo
Bogd Timo
Posted 11 years ago

The code for the pic above is :

  listNodesSubsystemView =
         Join[{"xxx" -> "SubSystems"},
          Reverse[{"SubSystems" -> "SysVar1", "SubSystems" -> "SysVar2",
            "SubSystems" -> "SysVar3"}],
          Reverse[{"SysVar1" -> "p1", "SysVar2" -> "p2", "SysVar3" -> "p3",
            "SysVar3" -> "p2"}],
          Reverse[{{"p1" -> "Sp11", "value set"}, {"p1" -> "Sp12",
             "value set"}, {"p3" -> "Sp31", "value set"}, {"p3" -> "Sp32",
             "value set"}}], {{"p2" -> "Sp21", "value set"}}]; TreeSubSystem =
          TreePlot[listNodesSubsystemView, Left,
          First[First[listNodesSubsystemView]], VertexLabeling -> True,
          DirectedEdges -> True]
POSTED BY: Bogd Timo

Could you give your original code for this so readers could play with it?
POSTED BY: David Reiss
