Can Mathematica produce Ternary Plots ?

Posted 9 years ago

Can Mathematica produce a Ternary Plots ?

POSTED BY: Nelson Zink
3 Replies

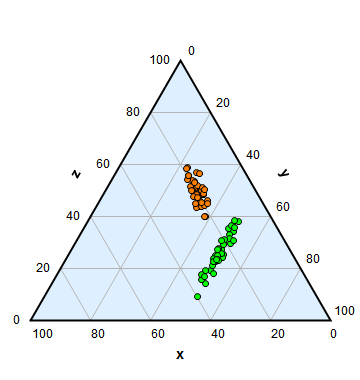

Do you mean ternary plots like this?

enter image description here

That was produced with the Ternary Plots graphics in my Presentations package, which can be purchased through my web site. The various commands are:

TernaryScale, ToTernaryCoordinates, FromTernaryCoordinates, TernaryReplacementRules, DrawTernaryGrid, TernaryTriangle, TernaryPlotRange, TernaryPadding, TernaryPlot, TernaryLocator, TernaryContourDraw, TernaryRegionDraw, TernaryDraw3D.

The actual code for the above plot was:

<< Presentations`
 {data1, data2, temp1, temp2},
 data1 = Table[{temp1 = RandomReal[NormalDistribution[20, 2]],
    temp2 = RandomReal[NormalDistribution[30, 4]],
    TernaryScale - temp1 - temp2}, {40}];
 data2 = Table[{temp1 = RandomReal[NormalDistribution[25, 8]],
    temp2 = RandomReal[NormalDistribution[50, 1]],
    TernaryScale - temp1 - temp2}, {40}];

 plot1 = TernaryPlot[
    TGBackground -> LightBlue,
    TGLabels -> {1.4, {"x", "y", "z"}, "side"}],
   CirclePoint[ToTernaryCoordinates[#], 3, Black, Orange] & /@ data1,
   CirclePoint[ToTernaryCoordinates[#], 3, Black, Green] & /@ data2]
Posted 9 years ago


POSTED BY: Nelson Zink

Please also see this: How to plot ternary density plots?

POSTED BY: Sam Carrettie
