I have a parametric plot and a GeoGraphic of the same size and I want to overplot them. Show doesn't seem to like to use both at the same time though it will display either. How can I put regular Graphics on top of GeoGraphics?

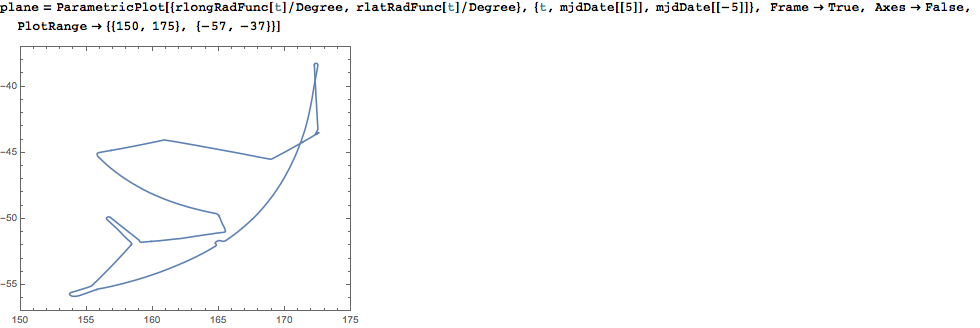

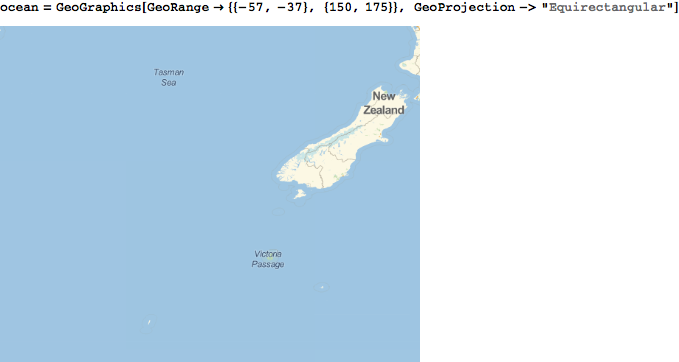

flightpath oceanmap
POSTED BY: Michael Person
3 Replies
Sort By:

Try:

pplot = ParametricPlot[{165 + 10*Sin[3 u], -45 + 10*Sin[2 u]}, {u, 0,  2 Pi}];
pp = pplot[[1]] /. Line[a_] :> Line[GeoPosition[Reverse /@ a]];
GeoGraphics[pp, GeoRange -> {{-55, -35}, {155, 175}}, GeoProjection -> "Equirectangular"]

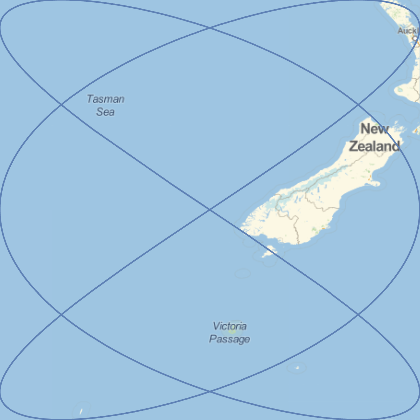

enter image description here
POSTED BY: Bjorn Zimmermann

ImageCompose! Whole new vistas are now opened to me. It worked with my data first try. Thanks!!!!

-MJP
POSTED BY: Michael Person

Hi Michael,

there re lots of possibilities there. One is this (as I did not have your functions I just made something up):

ImageCompose[GeoGraphics[GeoDisk[{0, 0}, Quantity[1000, "Miles"]]], ParametricPlot[{Cos[t], Sin[t]}, {t, 0, 2 Pi},
PlotStyle -> Directive[Black, Thick], Axes -> False, PlotRange -> {{-2, 2}, {-2, 2}}]]

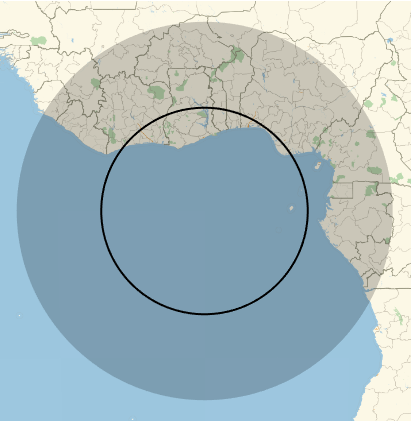

enter image description here

Cheers,

Marco
POSTED BY: Marco Thiel
