Hello,

first of all, the Integrand as a (positive) square-root of a sum of squares is greater or equal Zero. As is pointed out later, I think it can be Zero at only one Point, and that means, you integrate over a positive Integrand, so the integral should be positive and non-Zero.

Look at it from a geometrical Point of view. Your Integrand Looks like the norm of a vector, in fact the norm of the sum of two vectors,

XX = {x, y};
VV = {Cos[phi], Sin[phi]};

And this is a circle of radius 1 centered a the Point { - x, - y }. So your Integrand is in fact the length of a vector from the origin to a Point of that circle. That length is always positive, only if the circle passes through the origin it can be Zero, at exactly one Point. So, the Integrand is (mostly) positive ant the integral non-Zero.

Let's check it. Define the norm or length of a vector by

norm[a_] := Sqrt[a.a]

and we get

 In[11]:= norm[XX + VV]

    Out[11]= Sqrt[(x + Cos[phi])^2 + (y + Sin[phi])^2]

exactly your Integrand.

In other words you integrate over the norm[ XX + YY ].

The vector nearest to the origin is XX = { 0, 0 } and as norm[ YY ] is 1 the integral should then become 2 Pi.

Taking into account the inequality

norm[a + b ] <= norm[a] + norm[ b]

and norm [ a ] = constant we arrive at (at least in my opinion)

2 \[Pi] <=  integral <= 2 \[Pi] ( 1 + norm [XX] )

Now let us rotate the Frame of reference. Define a Rotation Matrix dd

dd = ( {
    {Cos[t], Sin[t]},
    {-Sin[t], Cos[t]}
   } );

and apply it to the vector in question. Note that this is an orthogonal Transformation and lengths are not changed

  In[21]:= vecnew = dd.(XX + VV) // Expand // TrigReduce

  Out[21]= {Cos[phi - t] + x Cos[t] + y Sin[t],
   y Cos[t] + Sin[phi - t] - x Sin[t]}

We Chose the angle t in a way, that the Point { x, y } is rotated to the x-axes of the new System

In[22]:= vecnew1 =
 vecnew /. Cos[t] -> x/Sqrt[x^2 + y^2] /. Sin[t] -> y/Sqrt[x^2 + y^2]

Out[22]= {x^2/Sqrt[x^2 + y^2] + y^2/Sqrt[x^2 + y^2] + Cos[phi - t],
 Sin[phi - t]}

Note that this is the same Situation as before, only the Point in question is tranferred to the x-axes of a new coordinate - System. And now we have

   j1 = norm[vecnew1] // FullSimplify

    Sqrt[1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2] Cos[phi - t]]

But this is of the form Sqrt [ a + b Cos [ w ] ], as the Phase shift doesn't matter when we integrate over phi from 0 to 2 Pi.

Indeed we get

In[28]:= J1 = \[Integral]j1 \[DifferentialD]phi

Out[28]= (2 Sqrt[1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2] Cos[phi - t]]
  EllipticE[(phi - t)/2, (4 Sqrt[x^2 + y^2])/(
  1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2])])/Sqrt[(1 + x^2 + y^2 +
 2 Sqrt[x^2 + y^2] Cos[phi - t])/(1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2])]

(hmm, interstingly the rotation angle is maintained in the Elliptical thing...) and

In[30]:= T2 = J1 /. phi -> 2 Pi

Out[30]= (2 Sqrt[1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2] Cos[t]]
  EllipticE[1/2 (2 \[Pi] - t), (4 Sqrt[x^2 + y^2])/(
  1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2])])/Sqrt[(1 + x^2 + y^2 +
 2 Sqrt[x^2 + y^2] Cos[t])/(1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2])]

In[31]:= T1 = J1 /. phi -> 0

Out[31]= -((
 2 Sqrt[1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2] Cos[t]]
   EllipticE[t/2, (4 Sqrt[x^2 + y^2])/(
   1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2])])/Sqrt[((
 1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2] Cos[t])/(
 1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2]))])

and finally

In[34]:= res = T2 - T1 // FullSimplify

Out[34]= (2 Sqrt[
   1 + x^2 + y^2 +
    2 Sqrt[x^2 + y^2]
      Cos[t]] (EllipticE[\[Pi] - t/2, (4 Sqrt[x^2 + y^2])/(
      1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2])] +
     EllipticE[t/2, (4 Sqrt[x^2 + y^2])/(
      1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2])]))/(Sqrt[(
  1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2] Cos[t])/(
  1 + x^2 + y^2 + 2 Sqrt[x^2 + y^2])])

This should be the result of the Integration. If Mathematica says 0 that is wrong indeed.

Two final checks

In[35]:= res /. x -> 0 /. y -> 0

Out[35]= 2 \[Pi]

ok, And

In[40]:= res /. t -> ArcSin[y/Sqrt[x^2 + y^2]] /. x -> 5. /.
  y -> 3.8 // N

Out[40]= 39.7097

compared to

In[41]:= NIntegrate[((Sqrt[(x - Cos[a])^2 + (y - Sin[a])^2]) /.
    x -> 5. /. y -> 3.8), {a, 0, 2 Pi}]

Out[41]= 39.7097

Regards Hans

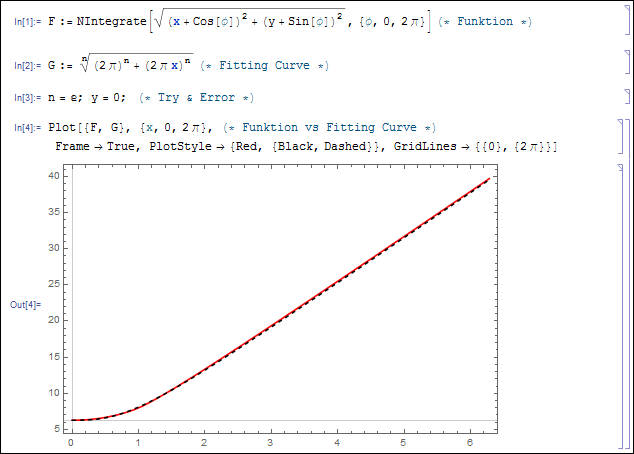

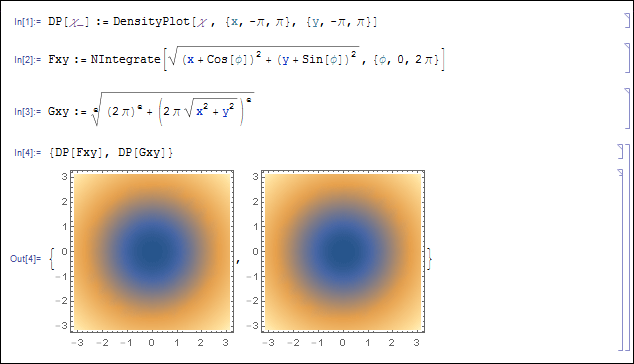

The difference between F and G is of the order of .2 or less. It is too small to perceive it in the two plots you have made. Try plotting the difference:

With[{n = E, y = 0},
 Plot[NIntegrate[
    Sqrt[(x + Cos[\[CurlyPhi]])^2 + (y +
         Sin[\[CurlyPhi]])^2], {\[CurlyPhi], 0, 2 \[Pi]}] -
   Power[(2 \[Pi])^E + (2 \[Pi] Sqrt[x^2 + y^2])^E, (E)^-1], {x, 0,
   2 Pi}]]

I tested your formula for F numerically, and it doesn't seem true:

With[{x = 1,
   y = 2}, {Integrate[
    Sqrt[(x + Cos[\[CurlyPhi]])^2 + (y +
         Sin[\[CurlyPhi]])^2], {\[CurlyPhi], 0, 2 \[Pi]}],
   Power[(2 \[Pi])^E + (2 \[Pi] Sqrt[x^2 + y^2])^E, (E)^-1]}] // N
With[{y = 2},
 Plot[NIntegrate[
    Sqrt[(x + Cos[\[CurlyPhi]])^2 + (y +
         Sin[\[CurlyPhi]])^2], {\[CurlyPhi], 0, 2 \[Pi]}] -
   Power[(2 \[Pi])^E + (2 \[Pi] Sqrt[x^2 + y^2])^E, (E)^-1], {x, -20,
   20}]]
