# Too many markers with ProbabilityPlot and ProbabilityScalePlot

Posted 12 years ago

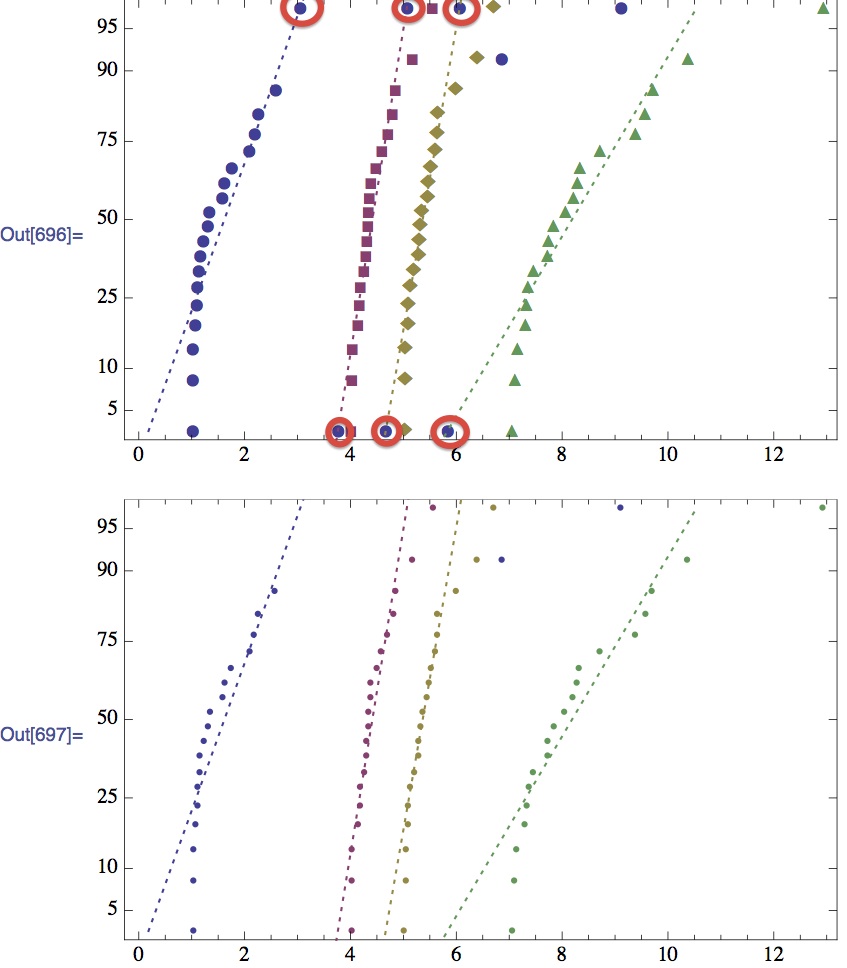

 Dear Wolfram Community,When I use PlotMarkers inside of ProbabilityScalePlot additional data points are added to the plot. This is even true for the examples given in the documentation. Where do these extra points come from and is it possible to get rid of them?Best wishes,AndyHere is an example taken directly from the documentation:data = Table[   RandomVariate[ParetoDistribution[p[[1]], p[[2]]],     20], {p, {{1, 2}, {4, 9}, {5, 7}, {7, 9}}}];ProbabilityScalePlot[ ReleaseHold /@ {data[[#]] & /@ Range[Length@data]}, "Normal",  PlotMarkers -> Automatic]ProbabilityScalePlot[ ReleaseHold /@ {data[[#]] & /@ Range[Length@data]}, "Normal"]The plot with the PlotMarkers has extra blue filled in circles along the top and bottom, as higlighted by the red circles.
5 Replies
Sort By:
Posted 12 years ago
 Andy I added images to your post - you could do that yourself to, especially in the case when you have a graphics question. This is to just add clarity. For example I am still not sure which points you mean. Do you just mean only 1st plot and and markers at level 0 and level 100?
Posted 12 years ago
 Dear Vitaliy,Thank you for adding the pictures. I wasn't able to figure out how to add in the diagrams myself using the local links. But I've figured out how to do it by importing a file containing the pictures. I've also circled and highlghted in red the extra points which arise from the PlotMarkers.Best,Andy
Posted 12 years ago
 We'll look into this. One workaround is to apply the markers to the plot, yourself.First, get a list of all the standard plot markers: {glen, glyphs} = {Length@#, #}& @   Cases[   Normal@ListPlot[ConstantArray[{1}, 50], PlotMarkers -> Automatic],    Inset[glyph_, ___] :> glyph,    Infinity] // DeleteDuplicatesThen, perform the replacement:Module[{i = 0},  Normal[ProbabilityScalePlot[ReleaseHold /@ {data[[#]] & /@ Range[Length@data]}, "Normal"]] /.     {_Hue, col_RGBColor, p_Point} :>        Module[{glyph = glyphs[[Mod[++i, glen, 1]]]}, {col, Inset[glyph, #] & /@ p[[1]]}] ]
Posted 12 years ago

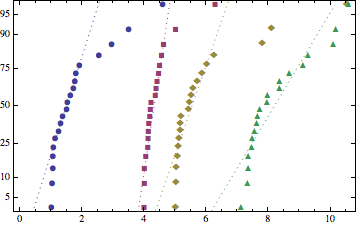

 Dear Robert,Thank you very much for your excellent response. I learned a lot decomposing your solution.I've also found another "workaround" which is to set Mesh->Full. For some reason this gets rid of the excess data points. I have no idea why it works, but it seems to.Best,Andy
Posted 12 years ago
 Andy,I made a slight change to my original code. Previously, I had counted the number of plotmarkers by hand to come up with 10, but if any are added, then the solution will not include them. Of course, it is unlikely that you will need more than 10 plotmarkers, but in the unlikely event you do, I modified the code to grab the length of that list. I have not played with Mesh -> Full, but I will look at it. Thanks.Rob
