Draw a GeoDisk that covers entire path between 2 locations?

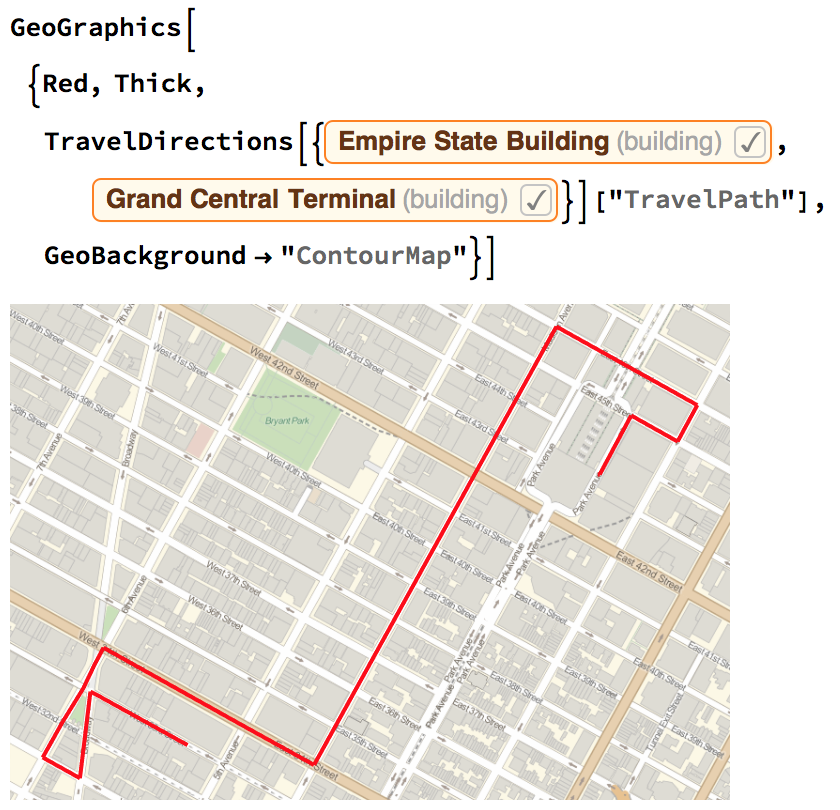

I would like to draw a GeoDisk[] that covers the entire path between 2 given locations. Path can be GeoPath[] or TravelDirections[]. How do i do this? Any suggestions?

Unable to draw a GeoDisk between 2 GeoPositions
POSTED BY: Manjunath Babu
4 Replies
Sort By:
Diego Zviovich
Diego Zviovich
Posted 10 years ago

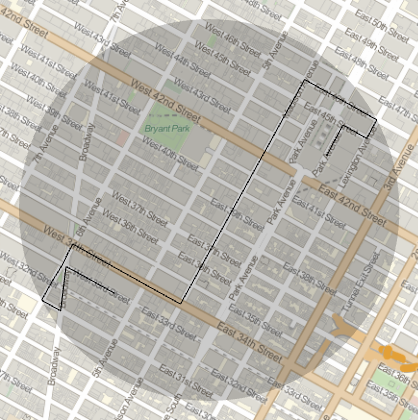

td = TravelDirections[{Entity["Building",
    "EmpireStateBuilding::h583b"],
   Entity["Building", "GrandCentralTerminal::xyg9f"]}];
points = Union[
   Cases[td["TravelPath"] /.
     GeoPath[GeoPosition[a_], "TravelPath"] -> a, {_, _}, {2}]];
combo = Flatten[
   Table[{points[[i]], points[[j]]}, {i, Length@points - 1}, {j,
     i + 1, Length@points}], 1];
last = SortBy[{GeoPosition[Mean[#]], #,
       EuclideanDistance[#[[1]], #[[2]]]} & /@ combo, Last] // Last;
GeoGraphics[{GeoPath@td,
  GeoDisk[last[[1]], 0.5 GeoDistance[Sequence@last[[2]]]]}]

enter image description here
POSTED BY: Diego Zviovich

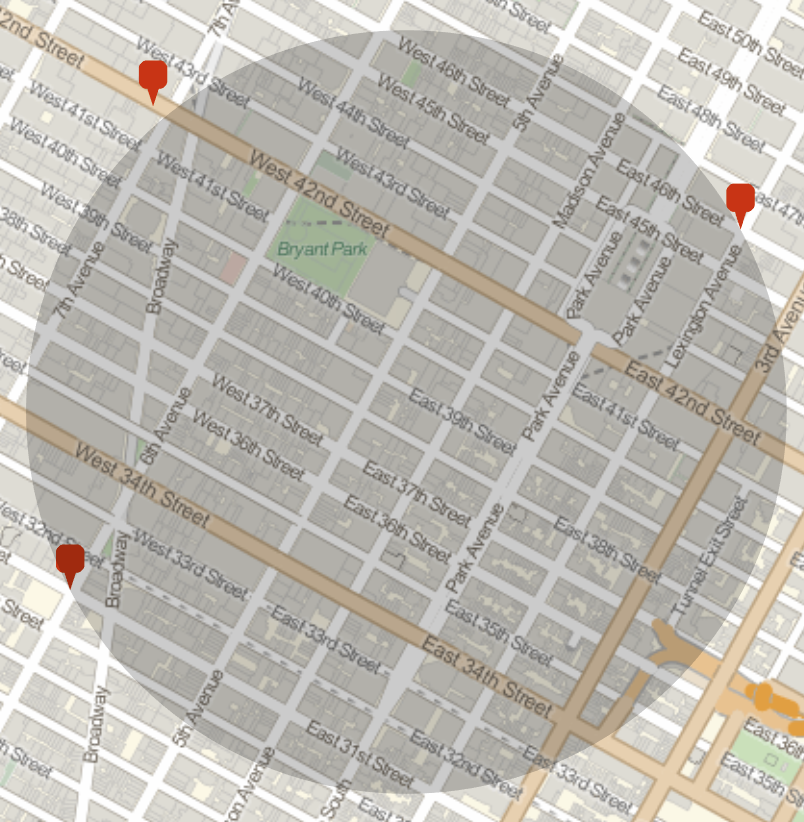

I was thinking roughly the same, at first, but it does not always cover all the points:

   points={{40.74789000000001`,-73.98916`},{40.753990000000016`,-73.97420000000001`},{40.75607100561154`,-73.98731010197233`}};
   combo = Subsets[points, {2}];
   last=SortBy[{GeoPosition[Mean[#]],#,EuclideanDistance[#[[1]],#[[2]]]}&/@combo,Last]//Last;
   GeoGraphics[{GeoMarker@GeoPosition@points,GeoDisk[last[[1]],0.5 GeoDistance[Sequence@last[[2]]]]}]

enter image description here
POSTED BY: Sander Huisman

Yes, a smallest disk that has both points inside it.
POSTED BY: Manjunath Babu

Do you want precisely the smallest? I think some iterative algorithm might be the easiest options: draw a circle with a radius that equals the distance to the furthest point. as a function of lat and long, starting at the mean location all of the points. Using FindMinimum (on the radius) the lat and long should be quite quickly found...
POSTED BY: Sander Huisman
