Crystal Fantry

How to simulate a random rotating roulette?

Crystal Fantry, Wolfram Research
Posted 10 years ago
11348 Views
|
3 Replies
|
16 Total Likes
|

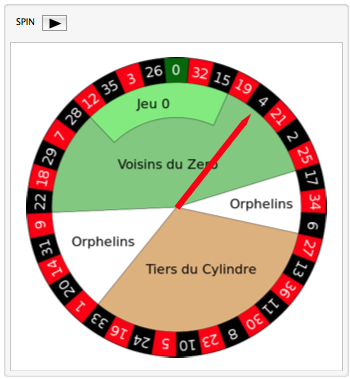

This roulette is pretty simple to construct, but unfortunately it always stops at the same spot. What kind of approaches could we have here?
 img = Import["http://goo.gl/0hn0t4"];

 Animate[
  Graphics[{
    Rotate[Inset[img, Automatic, Automatic, 2], rot],
    Thickness[.02], Red,
    Arrow[{{0, 0}, .8 {Sin[7 Pi/33], Cos[7 Pi/33]}}]
    }, PlotRange -> 1, ImageSize -> 300],
  {{rot, 0, "SPIN"}, 0, RandomReal[{0, 4 Pi}],
  AppearanceElements -> "ResetPlayButton", AnimationRepetitions -> 1,
  AnimationRunning -> False, DisplayAllSteps -> True}
]
POSTED BY: Crystal Fantry
3 Replies
Sort By:
I think this application need to satisfy criteria:
  1. All spins must be properly random
  2. Rotation must be visibly smooth and continuous
  3. There should be only a single control "SPIN"
  4. Every time you spin the wheel it needs to start from the point it stopped the previous time

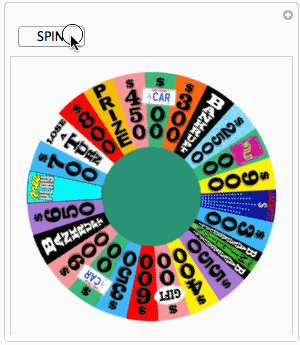

I think we could use the concept of self-triggered Dynamic or automatic reevaluation to solve this problem:
img = Import["http://goo.gl/ehiHI0"];

Manipulate[
y = Min[up, y + .02];
Graphics[Inset[img, Automatic, Automatic, 2, {Cos[2 Pi y], Sin[2 Pi y]}], PlotRange -> 1, ImageSize -> 250],
Button["SPIN", up = RandomReal[]; y = y - 1],
{up, 1, ControlType -> None},
{{y, 1}, -2, 1, ControlType -> None}]
POSTED BY: Vitaliy Kaurov
Hey Crystal,

I can see that your question is about why the RandomReal does not create a new random number as you click the "PlayResetButton". This behaviour is as designed so you can always replay the same thing again and again. If you want to show a different process, you just need to add control to your function that force the animation to take a new numbe.

The easiest way to do this is via Manipulate function which allows the customized control. Here is how you add such a new random number generator into the demo:
 img = Import["http://goo.gl/0hn0t4"];
 c = 1;
 Manipulate[
  Graphics[{Rotate[Inset[img, Automatic, Automatic, 2], c*rot],
    Thickness[.02], Red,
    Arrow[{{0, 0}, .8 {Sin[7 Pi/33], Cos[7 Pi/33]}}]}, PlotRange -> 1,
   ImageSize -> 300], {{rot, 0, "SPIN"}, 0, 4 \[Pi],
   ControlType -> Trigger},
  Button["random", c = RandomReal[{0, 1}]]
]

After you run this code you can rotate the roulette and stop after 2 turns. Then you can click the "random" button and spin again to stop at a new spot.


If you have question about the code, you may find following two demo helpful:
1. 3D Boid Model
2. Buttons Manipulate

Have fun and you can simulate how to get a free ice cream from Cold Stone by doing the roulette experiment now!
POSTED BY: Shenghui Yang
I am very inexperienced, and I am sure a better answer will come up.

The problem seems to be that the RandomReal becomes a fixed value when the code is evaluated.

I tried putting dynamic around the RandomReal.
 img = Import["http://goo.gl/0hn0t4"];

 Animate[Graphics[{Rotate[Inset[img, Automatic, Automatic, 2], rot],
    Thickness[.02], Red,
    Arrow[{{0, 0}, .8 {Sin[7 Pi/33], Cos[7 Pi/33]}}]}, PlotRange -> 1,
   ImageSize -> 300], {{rot, 0, "SPIN"}, 0,
   Dynamic[RandomReal[{0, 4 Pi}]],
   AppearanceElements -> "ResetPlayButton", AnimationRepetitions -> 1,
   AnimationRunning -> False, DisplayAllSteps -> True}]
The roulette stops at a random location, but spins oddly.

I am sure someone else have a better solution.
POSTED BY: Seokin Yeh
