Implementation of Historical Cryptosystems

POSTED BY: Chelsea Chen
3 Replies

Dear Chelsea,

that is a very nice post. There's some code for the enigma on the community by @Michael Hale:

lettersToNumbers = Thread[CharacterRange["A", "Z"] -> Range@26];
numbersToLetters = Reverse /@ lettersToNumbers;
rotors = Characters /@ {"EKMFLGDQVZNTOWYHXUSPAIBRCJ",
     "AJDKSIRUXBLHWTMCQGZNPYFVOE", "BDFHJLCPRTXVZNYEIWGAKMUSQO",
     "ESOVPZJAYQUIRHXLNFTGKDCMWB", "VZBRGITYUPSDNHLXAWMJQOFECK"} /. lettersToNumbers;
notches = {"Q", "E", "V", "J", "Z"} /. lettersToNumbers;
reflector =
  Characters@"YRUHQSLDPXNGOKMIEBFZCWVJAT" /. lettersToNumbers;
{active, turns} = {{3, 2, 1}, {"A", "A", "A"} /. lettersToNumbers};

step[] :=
turns = Mod[
      turns + ({1, If[#, 1, 0], If[# && #2, 1, 0]} &[
      turns[[1]] == notches[[active[[1]]]],
      turns[[2]] == notches[[active[[2]]]]]), 26, 1]
encode[letter_] := (step[];
  Fold[Mod[
      PermutationReplace[Mod[# + #2[[2]], 26, 1], #2[[1]]] - #2[[2]],
      26, 1] &, letter /. lettersToNumbers,
    Join[#, {{reflector, 0}}, {InversePermutation@#, #2} & @@@
        Reverse@#] &@Thread@{rotors[[active]], turns - 1}] /.
   numbersToLetters)

The code functions like this. If this is our secret message:

message = "WHENSHALLWETHREEMEETAGAIN";

this will encode it:

turns = {"A", "B", "C"} /. lettersToNumbers;
StringJoin[encode /@ Characters@message]

It gives:

YFRGMRNSERQYTNKZCVWBVURAI

This decodes the message:

turns = {"A", "B", "C"} /. lettersToNumbers;
StringJoin[encode /@ Characters@"YFRGMRNSERQYTNKZCVWBVURAI"]

and gives:

WHENSHALLWETHREEMEETAGAIN

Now here is a little graphical visualisation of the enigma.

tocode = Characters@"WHENSHALLWETHREEMEETAGAIN";

{active, turns} = {{3, 2, 1}, {"A", "B", "C"} /. lettersToNumbers};
plotEnigma[letter_, activer_] := (step[];
  r1 = activer[[1]];
  r2 = activer[[2]];
  r3 = activer[[3]]; letters = letter /. lettersToNumbers;
  a1 = Mod[rotors[[r1, Mod[letters + turns[[1]] - 2, 26] + 1]] - turns[[1]],26] + 1;
  a2 = Mod[rotors[[r2, Mod[a1 + turns[[2]] - 2, 26] + 1]] - turns[[2]], 26] + 1;
  a3 = Mod[rotors[[r3, Mod[a2 + turns[[3]] - 2, 26] + 1]] - turns[[3]], 26] + 1;
  a4 = reflector[[a3]];
  a5 = Mod[Flatten[Position[ rotors[[r3]], Mod[a4 + turns[[3]] - 2, 26] + 1]][[1]] - turns[[3]], 26] + 1;
  a6 = Mod[Flatten[Position[ rotors[[r2]], Mod[a5 + turns[[2]] - 2, 26] + 1]][[1]] - turns[[2]], 26] + 1;
  a7 = Mod[Flatten[Position[ rotors[[r1]], Mod[a6 + turns[[1]] - 2, 26] + 1]][[1]] - turns[[1]], 26] + 1;
  Show[Graphics[Text[Style[#[[1]], FontFamily -> "Courier", 15], {-1.5, #[[2]]}] & /@
   Transpose[{CharacterRange["A", "Z"], Range[26]}]],
   Graphics[{Green, Rectangle[{0.5, 0.5}, {3.5, 26.5}]}],
   Graphics[{ Yellow, Rectangle[{5.5, 0.5}, {8.5, 26.5}]}],
   Graphics[{Red, Rectangle[{10.5, 0.5}, {13.5, 26.5}]}],
   Graphics[{Blue, Rectangle[{15.5, 0.5}, {16.5, 26.5}]}],
   Graphics[
    Circle[{16, #[[1]]}, {#[[2]]/4., #[[2]]}, {-Pi/2, Pi/2}] & /@
     Transpose[{Abs[Range[26] + reflector]/2 // N,
       Abs[Range[26] - reflector]/2 // N}]],
   Graphics[Table[Disk[{m, k}, 0.1], {k, 1, 26}, {m, 1, 4, 2}]],
   Graphics[Table[Disk[{m, k}, 0.1], {k, 1, 26}, {m, 6, 9, 2}]],
   Graphics[Table[Disk[{m, k}, 0.1], {k, 1, 26}, {m, 11, 14, 2}]],
   Graphics[Table[Disk[{m, k}, 0.1], {k, 1, 26}, {m, 16, 17, 2}]],
   Graphics[
    Table[Line[{{1, k}, {3,
        Mod[rotors[[r1, Mod[k + turns[[1]] - 2, 26] + 1]] -
           turns[[1]], 26] + 1}}], {k, 1, 26}]],
   Graphics[
    Table[Line[{{6, k}, {8,
        Mod[rotors[[r2, Mod[k + turns[[2]] - 2, 26] + 1]] -
           turns[[2]], 26] + 1}}], {k, 1, 26}]],
   Graphics[
    Table[Line[{{11, k}, {13,
        Mod[
          rotors[[r3, Mod[k + turns[[3]] - 2, 26] + 1]] - turns[[3]],
          26] + 1}}], {k, 1, 26}]],
   Graphics[{Thickness[0.01], Line[{{-1, letters}, {1, letters}}]}],
   Graphics[{Thickness[0.01], Line[{{1, letters}, {3, a1}}]}],
   Graphics[{Thickness[0.01], Line[{{3, a1}, {6, a1}}]}],
   Graphics[{Thickness[0.01], Line[{{6, a1}, {8, a2}}]}],
   Graphics[{Thickness[0.01], Line[{{8, a2}, {11, a2}}]}],
   Graphics[{Thickness[0.01], Line[{{11, a2}, {13, a3}}]}],
   Graphics[{Thickness[0.01], Line[{{13, a3}, {16, a3}}]}],
   Graphics[{Thickness[0.01], Line[{{13, a4}, {16, a4}}]}],
   Graphics[{Thickness[0.01], Line[{{11, a5}, {13, a4}}]}],
   Graphics[{Thickness[0.01], Line[{{8, a5}, {11, a5}}]}],
   Graphics[{Thickness[0.01], Line[{{6, a6}, {8, a5}}]}],
   Graphics[{Thickness[0.01], Line[{{3, a6}, {6, a6}}]}],
   Graphics[{Thickness[0.01], Line[{{1, a7}, {3, a6}}]}],
   Graphics[{Thickness[0.01], Line[{{-1, a7}, {1, a7}}]}],
   Graphics[{Thickness[0.01],
     Circle[{16,
       Abs[a3 + reflector[[a3]]]/2}, {Abs[a3 - reflector[[a3]]]/2/4.,
       Abs[a3 - reflector[[a3]]]/2}, {-Pi/2, Pi/2}]}],
   AspectRatio -> 1, ImageSize -> Large])
Manipulate[
plotEnigma[tocode[[let]], active], {let, 1, Length[tocode], 1}]

enter image description here

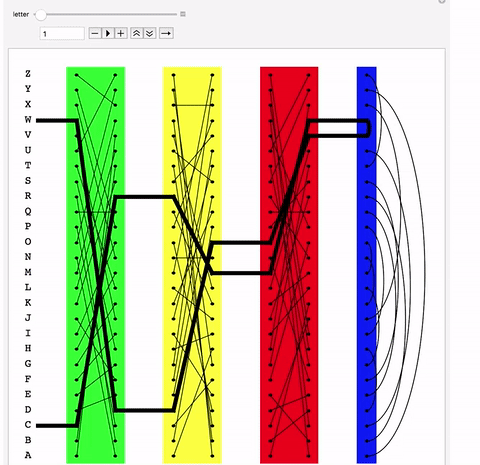

You can clearly see the mechanical structure. The three rotors (green, yellow and red) have a complicated wiring. Then there is a reflector (blue) that sends the trail back to the letters on the left. After ever letter the green rotor changes the position, so that the same letter is encoded by a different letter next time. After some time the yellow (and later the red) rotor will change the position.

The important bit is that the thing is a bijection, i.e. invertible. So If I go backwards I can decode the message.

Please do also have a look at this demonstration.

Cheers,

Marco

POSTED BY: Marco Thiel

Hi Marco thanks for sharing these demonstrations with me. I've taken a look at them. Quite fascinating indeed!

POSTED BY: Chelsea Chen
