Visualizing Olympic medals by country population and wealth

Posted 8 years ago

The Bloomberg Olympic medal counter features some great data on the wealth and population of the competing countries.

Whilst this is the best way to view the medal data, I struggle to get a sense of the relationship these metrics have with the medal counts.

I fired up Mathematica 11 to parse the Bloomberg html, and visualize their data.

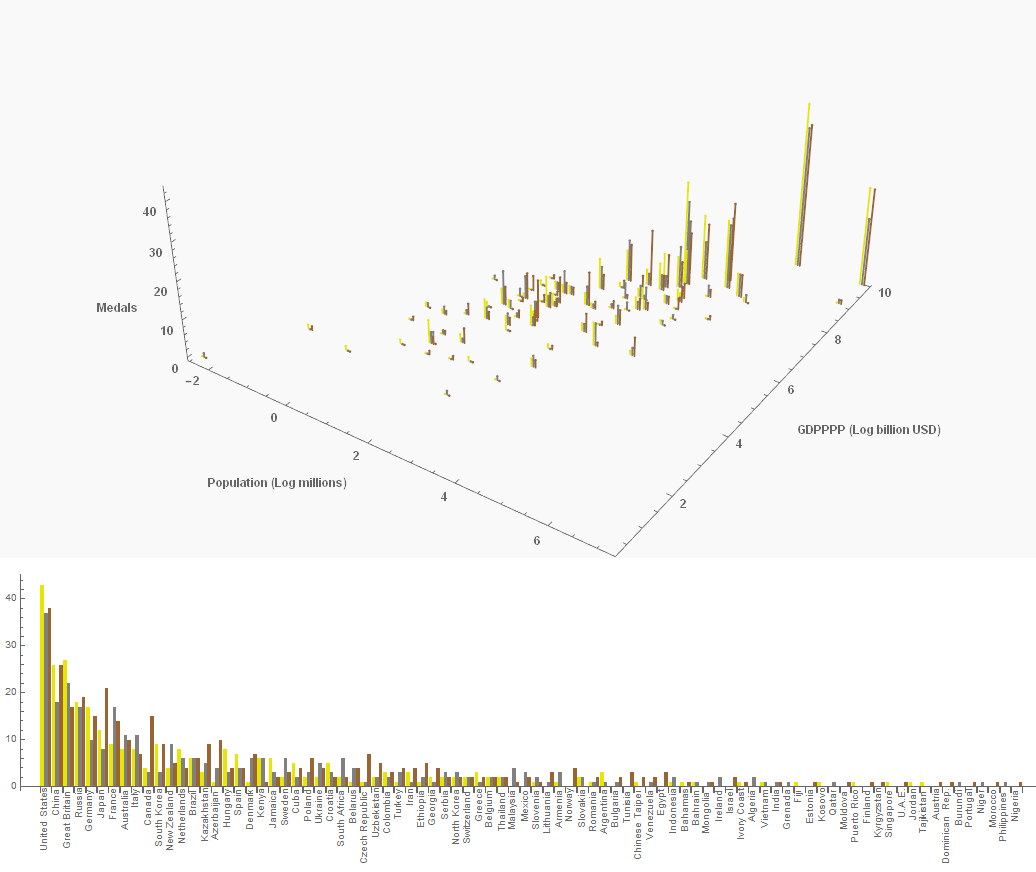

output

It's a far cry from Zachary Littrell's fantastic breakdown by sport, but not bad for eleven lines of code!

CODE:

source = StringSplit[Import["C:\\Users\\user\\Desktop\\medalDat.txt"],"\n"];
data = Transpose[(StringSplit[#, ">"][[-1]] & /@
       StringSplit[#, "</td>"][[;; -2]]) & /@ source[[;; -2]]];
data = StringReplace[#, {"," -> "", "$" -> ""}] & /@ # & /@ data;
{names, gold, silver, bronze, total, pop, gdpppp, poprat, gdprat} = data;
graphTypes = {gold, silver, bronze};
graphStyles = {Darker[Yellow, 0.1], Gray, Brown};
graphOffsets = 0.05 {-1, 0, 1};
graphs = ListPointPlot3D[
     Transpose[{Log[ToExpression /@ pop] + #[[3]],
       Log[ToExpression /@ gdpppp], ToExpression /@ #[[1]]}],
     Filling -> Axis, PlotRange -> All, FillingStyle -> Thick,
     PlotStyle -> #[[2]], Boxed -> False,
     Background -> Lighter[Gray, 0.95],
     AxesLabel -> {"Population (Log millions)",
       "GDPPPP (Log billion USD)", "Medals"},
     LabelStyle -> Directive[Bold, Medium]] & /@
   Transpose[{graphTypes, graphStyles, graphOffsets}];
Show @@ graphs
BarChart[Transpose[ToExpression@{gold, silver, bronze}][[#]],
   ChartStyle -> graphStyles, ColorFunctionScaling -> False,
   ChartLabels -> {Rotate[#, \[Pi]/2] & /@ names[[#]], None}] &@
 Reverse[Ordering[ToExpression[total]]]
Attachments:
POSTED BY: David Gathercole

enter image description here - another post of yours has been selected for the Staff Picks group, congratulations !

We are happy to see you at the top of the "Featured Contributor" board. Thank you for your wonderful contributions, and please keep them coming!

POSTED BY: Moderation Team
