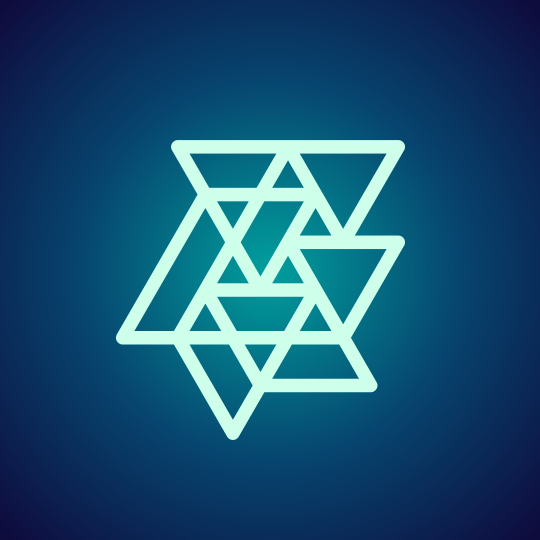

[GIF] Master Control Program (Minimal 7_4 knot on the simple cubic lattice)

Minimal 7_4 knot on the simple cubic lattice

Master Control Program

Continuing the series of minimal lattice knots (1, 2, 3, 4), but now back to the simple cubic lattice with the $7_4$ knot (a.k.a. the endless knot from Buddhism). Here's a more standard view of the $7_4$:

KnotData[{7, 4}, #] & /@ {"Image", "KnotDiagram"}

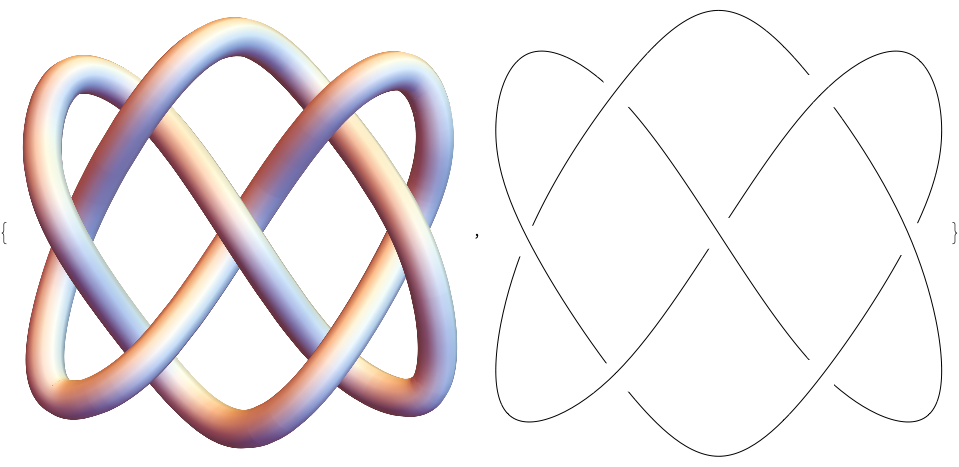

Standard Mathematica views of the 7_4 knot

Once again, we're grabbing the coordinates of this minimal lattice knot from Andrew Rechnitzer's page and mean-centering:

sc74 = Standardize[Import["https://www.math.ubc.ca/~andrewr/knots/data/SC74.dat"], Mean, 1 &];

To get the background gradient I'm using RadialGradientImage, which renders very slowly. If you want a responsive Manipulate, delete the Overlay and the RadialGradientImage, and in the Graphics replace Background -> None with Background -> cols[[-2]].

DynamicModule[{p, q, b, n, θ, pl,
  cols = RGBColor /@ {"#cdffeb", "#009f9d", "#07456f", "#0f0a3c"}},
 Manipulate[
  θ = ArcCos[-(1/3)] (#^3/(1 - 3 # (1 - #))) &[Mod[t, 1]];
  Which[t < 1 || t == 4,
   {p, q} = Normalize /@ {{1, 1, 1}, {1, 0, -1}};
   {n, b} = {p, q}.RotationMatrix[-θ, {-1, 0, 1}];,
   1 <= t < 2,
   {p, q} = Normalize /@ {{-1, 1, -1}, {1, 0, -1}};
   {n, b} = {p, q}.RotationMatrix[-θ, {0, 1, 1}];,
   2 <= t < 3,
   {p, q} = Normalize /@ {{-1, -1, 1}, {-1, 0, -1}};
   {n, b} = {p, q}.RotationMatrix[- θ, {1, 0, 1}];,
   3 <= t < 4,
   {p, q} = Normalize /@ {{1, -1, -1}, {-1, 0, -1}};
   {n, b} = {p, q}.RotationMatrix[- θ, {0, -1, 1}];
   ];
  pl = sc74.Transpose[{Cross[b, n], b}];
  Overlay[
   {RadialGradientImage[cols[[2 ;;]], {540, 540}],
    Graphics[
     {EdgeForm[
       Directive[Thickness[.025], JoinForm["Round"], cols[[1]]]],
      FaceForm[None], Polygon[pl]},
     ImageSize -> 540, PlotRange -> 4, Background -> None]}
   ],
  {t, 0, 4}]
 ]
POSTED BY: Clayton Shonkwiler
