# How do I Plot data with errorbars?

Posted 10 years ago
 If I have a list like follows, how do i Plot it. In the first column there are the x values, in the second the y(x) and in the last one the errors of y(x). Can I use ErrorListPlot? Can I just give the function a list of 3-tuple with {{x,y(x),errors},.... }? Thank you very much. x y(x) errory(x) 1 200.0 1.5 2 180.0 1.2 3 150.0 1.1 4 140.0 1.0 5 120.0 0.9 6 110.0 0.9 7 100.0 0.8 8 90.0 0.7 9 80.0 0.7 10 60.0 0.6 11 50.0 0.6 12 40.0 0.5 13 30.0 0.5
9 Replies
Sort By:
Posted 10 years ago

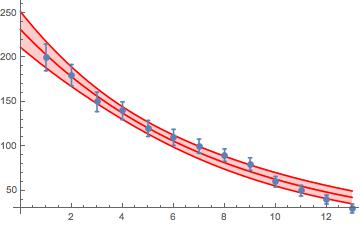

 Ok, for the sake of completeness, if you want to use the information of the errors for the fit this will do the trick: fit = NonlinearModelFit[data[[All, {1, 2}]], a*Exp[b x], {a, b}, x, Weights -> 1/data[[All, 3]]^2] which gives $a=241.238$ and $b=-0.138946$.If you then plot:Show[Plot[{Normal[fit], fit["MeanPredictionBands", ConfidenceLevel -> .99]}, {x, 0, 13}, PlotStyle -> Red, Filling -> {2 -> {1}}], ErrorListPlot[Table[{data[[i, {1, 2}]], ErrorBar[10*data[[i, 3]]]}, {i, 1, Length[data]}]]]Cheers, Marco
Posted 10 years ago
 Thank you for your help! Maybe one last question: What does mathematically happen when you use Wheights -> 1/data[[All,3]^2]?
Posted 10 years ago
 You need to read up on BLUE (best linear unbiased estimator). See for example http://en.wikipedia.org/wiki/Least_squares the bit on weighted least squares. You can search for the "Aitken" on that website.Also, see http://reference.wolfram.com/applications/eda/FittingDataToLinearModelsByLeast-SquaresTechniques.htmlCheers, Marco
Posted 10 years ago
 Thank you :)
Posted 10 years ago
 Thank you!
Posted 10 years ago
 Dear Sarmed, << ErrorBarPlots data = { {1, 200.0, 1.5}, {2, 180.0, 1.2}, {3, 150.0, 1.1}, {4, 140.0, 1.0}, {5, 120.0, 0.9}, {6, 110.0, 0.9}, {7, 100.0, 0.8}, {8, 90.0, 0.7}, {9, 80.0, 0.7}, {10, 60.0, 0.6}, {11, 50.0, 0.6}, {12, 40.0, 0.5}, {13, 30.0, 0.5}} ErrorListPlot[ Table[{data[[i, {1, 2}]], ErrorBar[10*data[[i, 3]]]}, {i, 1, Length[data]}]] givesNote that I have multiplied the errors by 10, because they are so small that do not see the bars on the plot if you do not do this.You can also use functional programming: ErrorListPlot[Transpose[{data[[All, {1, 2}]], ErrorBar /@ (10*data[[All, 3]])}]] Cheers, M.
Posted 10 years ago
 Thank you very much Marco, but I have another question: How can I use the function Y(A,B,x)=Aexp(B*x) as a fit-function and determine the parameteres A and B?
Posted 10 years ago

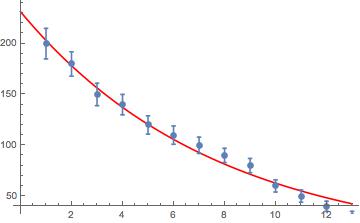

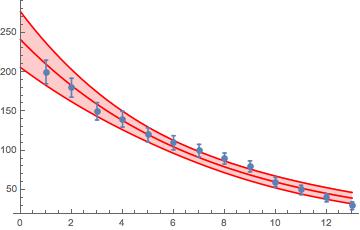

 Like so: fit = NonlinearModelFit[data[[All, {1, 2}]], a*Exp[b x], {a, b}, x] For the data at hand this gives you a=231.454 and b=-0.13052. You can display the function: Normal[fit] If you want to plot everything use: Needs["ErrorBarPlots"]; Show[Plot[Normal[fit], {x, 0, 13}, PlotStyle-> Red], ErrorListPlot[Table[{data[[i, {1, 2}]], ErrorBar[10*data[[i, 3]]]}, {i, 1, Length[data]}]]] which givesYou might also want to plot the 99% confidence bands like so: Show[Plot[{Normal[fit], fit["MeanPredictionBands", ConfidenceLevel -> .99]}, {x, 0, 13}, PlotStyle -> Red, Filling -> {2 -> {1}}], ErrorListPlot[Table[{data[[i, {1, 2}]], ErrorBar[10*data[[i, 3]]]}, {i, 1, Length[data]}]]] That givesThis fit does not take the errors into consideration. If you want to do that you might have to attach weights to the data points.Cheers, Marco
