Perfect and almost perfect rings (chains) of 4-antiprisms

Posted 3 years ago

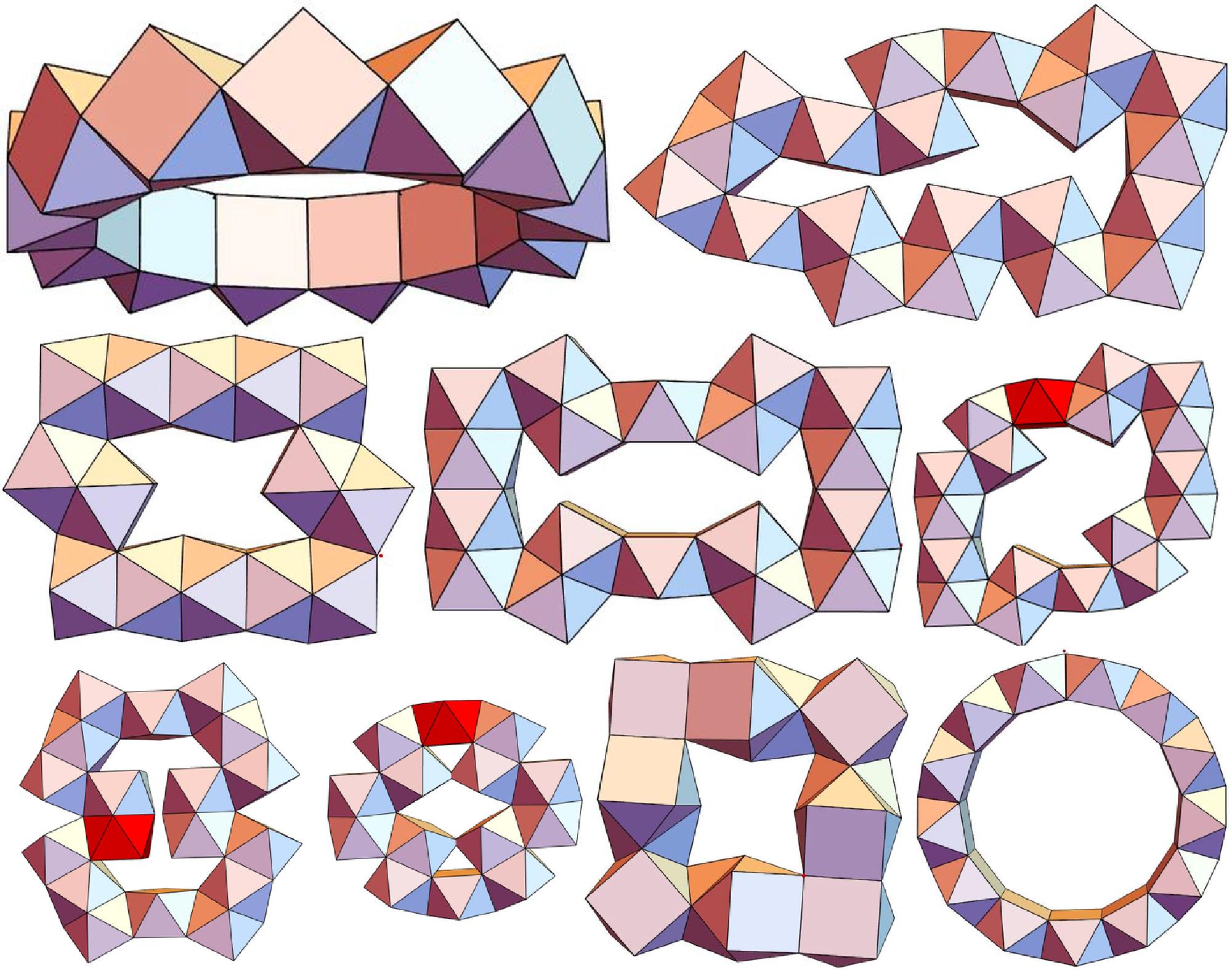

enter image description here

enter image description here

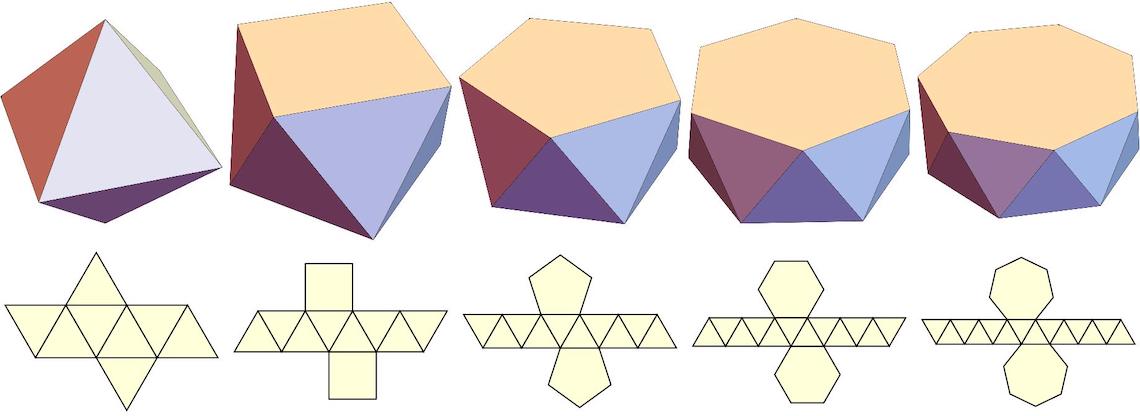

An n-gonal antiprism or n-antiprism is a polyhedron composed of two parallel copies of an n-sided polygon, connected by a band of 2n triangles.

Grid@Transpose@Table[PolyhedronData[{"Antiprism",k},#]&/@{"Image","Net"},{k,3,7}]

enter image description here

To form an almost perfect ring of 4-antiprisms firstly we need a set of vertices and coordinates:

offset =#+{0,0,Sqrt[1-1/4 Sec[π/8]^2]+4.05} &/@(2PolyhedronData[{"Antiprism",4}, "VertexCoordinates"]);

face={{5,1,2,6},{8,4,7,3},{6,4,8},{2,7,4},{1,3,7},{5,8,3},{6,2,4},{2,1,7},{1,5,3},{5,6,8}};

Then we can make 13 copies:

Graphics3D[
Table[GraphicsComplex[RotationMatrix[k 2 Pi/13,{0,1,0}].#&/@offset,Polygon/@face],{k,0,12}],
Boxed-> False, SphericalRegion->True]

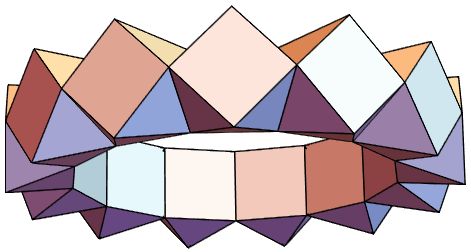

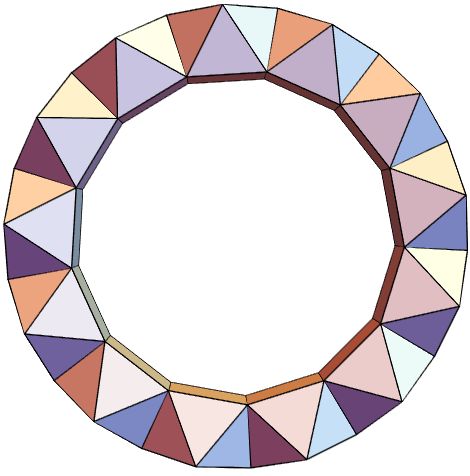

13 antiprisms

This is not exact, but it's very close.

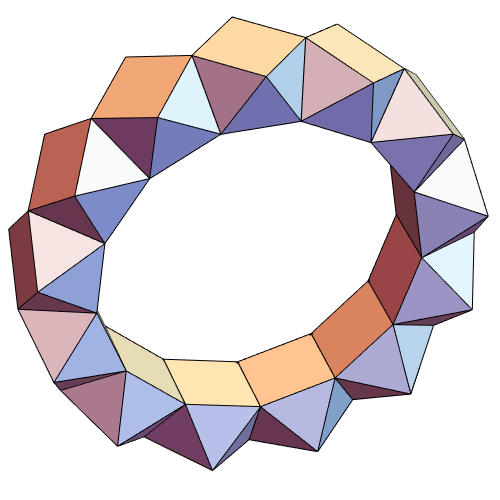

13 antiprisms side

POSTED BY: Ed Pegg
16 Replies

WHUPS! Obsolete even as I posted it...

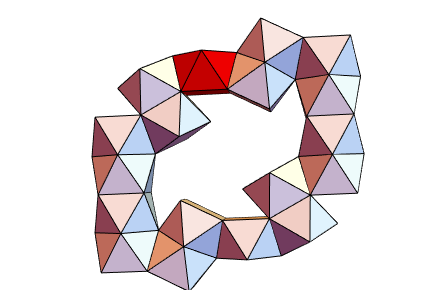

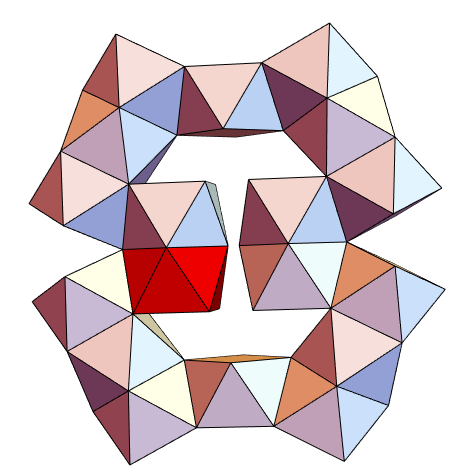

Also 18:

dat = FoldList[PolyhedronFaceReflect, a4,
       {3, 1, 5, 2, 1, 2, 5, 2, 3, 5, 1, 3, 2, 1, 2, 3, 2}];
    Graphics3D[{dat, Red, dat[[1]]}, Boxed -> False]

enter image description here

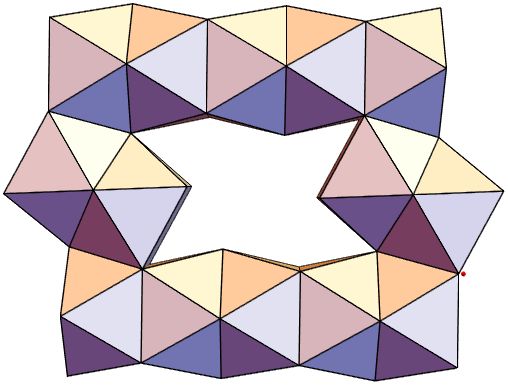

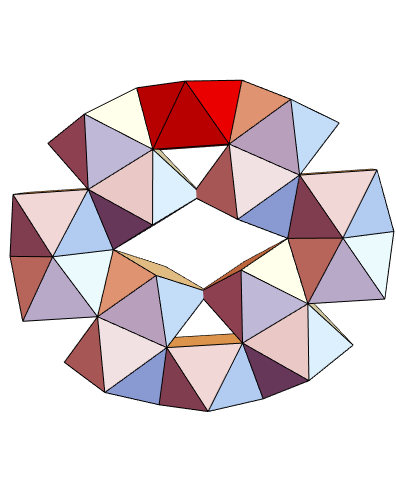

14 and closer to a ring, but fails because of overlap:

dat = FoldList[PolyhedronFaceReflect, a4,
   {3, 1, 5, 2, 5, 1, 3, 5, 1, 3, 2, 3, 1}];
Graphics3D[{dat, Red, dat[[1]]}, Boxed -> False]

enter image description here

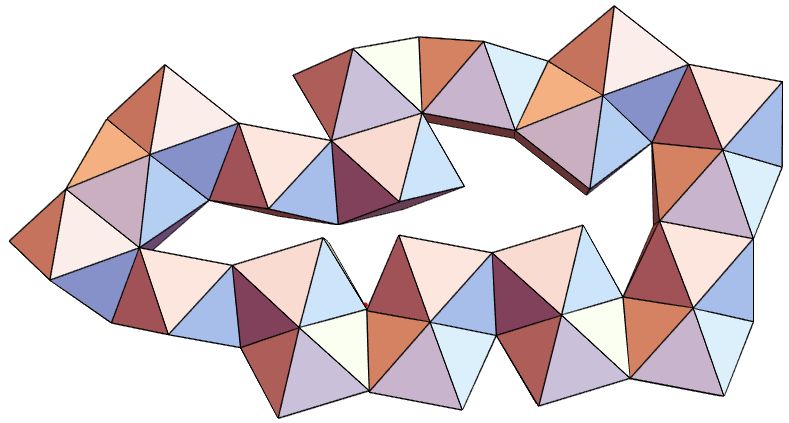

Tom Sirgedas sent me a ring of 14 that's perfect.

dat = FoldList[PolyhedronFaceReflect,
   a4, {1, 2, 1, 2, 10, 1, 8, 1, 2, 1, 2, 8, 1}];
Graphics3D[{{Red, Sphere[v[[6]] + {0, 0, .1}, .05]}, dat},
 Boxed -> False]

4-antiprism 14

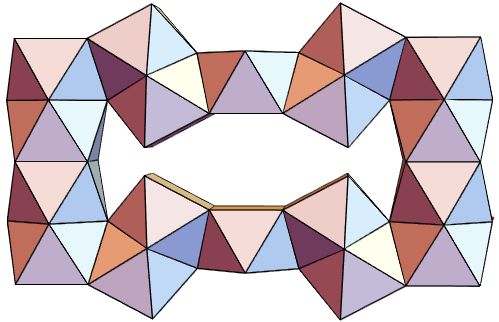

Then he lowered it down to 12.

dat = FoldList[PolyhedronFaceReflect,
   a4, {10, 1, 8, 9, 1, 7, 8, 1, 10, 7, 1}];
Graphics3D[{{Red, Sphere[v[[6]] + {0, 0, .1}, .05]}, dat},
 Boxed -> False]

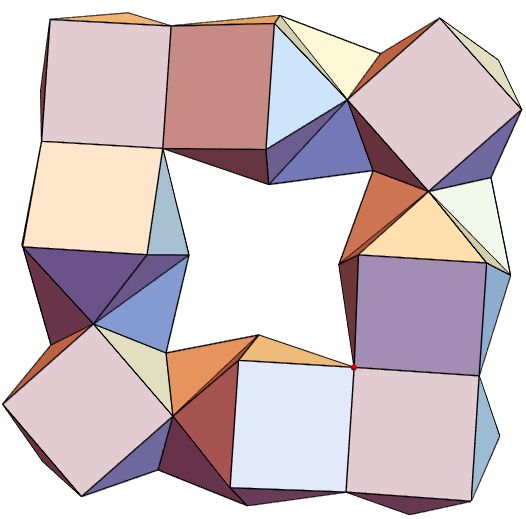

4-antiprism toroid 12

POSTED BY: Ed Pegg

Hmm... Found another ring of 18:

dat = FoldList[PolyhedronFaceReflect, a4,
   {3, 1, 2, 3, 5, 2, 1, 5, 2, 5, 1, 2, 5, 3, 2, 1, 3}];
Graphics3D[{dat, Red, dat[[1]]}, Boxed -> False]

(The "Red" lets me keep track of my starting point.)enter image description here

Wow! This looks super compact! Cannot stop thinking of protein folding.

POSTED BY: Kapio Letto

Ah: So that ends the story!! Back to the tetrahedron problem: That problem arose b/c it is quite simple to make perfect closed loops from cube, octahedron, dodecahedron, icosahedron. I have little models of those 4 here. So what you have discovered is that the same is true for your anti prism. But what is interesting is that it is nontrivial compared to the Platonic ones. Of course, maybe there is a simpler loop.... But finding what you found is great! Congrats. (Maybe even publishable. Oh wait: Why don't mwe make it an American Math Monthly problem. I am now the Proposal editor for the Amer Math Monthly, so I decide what we accept. This looks like a great problem! (Ie, True or False: there is an embedded chain of antiprisms) . Embedded means no intersections. One delicate point is that AMM Problems should not be published elsewhere. Maybe in a year or so you could remove the answer that is posted here.

POSTED BY: Stan Wagon

Congratulations! Your post was highlighted on the Wolfram's official social media channels. Thank you for your contribution. We are looking forward to your future posts.

POSTED BY: EDITORIAL BOARD

Searching for strings such as your 2,3,5,1 etc. is exactly how we came up with very small errors in the tetrahedral case. We used some symmetry and palindromicity and automated it all (checking for non-intersections: highly non-trivial to automate that) and got error down to 10^-18. That sort of approach would likely work here.

But the real excitement came when we were more organized...and stumbled across a quite simple shape that led to error below any pre-assigned epsilon. That was very satisfying indeed. As to how that might work for these antiprisms I can't predict, but it is worthy of investigation.

POSTED BY: Stan Wagon

Well, I took a look at the wild example, then took a wild guess that the following would be perfect:

dat = FoldList[PolyhedronFaceReflect,
   a4, {3, 2, 5, 3, 2, 5, 2, 1, 2, 5, 2, 3, 5, 2, 3, 2, 1}];
Graphics3D[{{Red, Sphere[v[[6]] + {0, 0, .1}, .05]}, dat},
 Boxed -> False]

antiprism toroid

Let's try a check.

Table[EuclideanDistance[dat[[1, 1, k]], dat[[18, 1, k]]], {k, 5, 8}]

That returns {0, 0, 0, 0}, so it's a valid perfect toroid.
Can anyone make a 4-antiprism toroid with less than 18 antiprisms?

POSTED BY: Ed Pegg

Quite a few have asked ... "So how close is this?"

First, a slightly simpler antiprism:

root = Root[-1 + 2 #^4& , 2, 0];
v = {{1, -1, -root}, {-1, -1, -root}, {-1, 1, -root}, {1,
    1, -root}, {Sqrt[2], 0, root}, {0, Sqrt[2], root}, {-Sqrt[2], 0,
    root}, {0, -Sqrt[2], root}};
f = {{1, 2, 3, 4}, {5, 6, 7, 8}, {1, 8, 2}, {2, 7, 3}, {3, 6, 4}, {4,
    5, 1}, {1, 5, 8}, {2, 8, 7}, {3, 7, 6}, {4, 6, 5}};
a4 = Polyhedron[v, f];

Next, a new function, PolyhedronFaceReflect, that refects the polyhedron on a given face:

PolyhedronFaceReflect[poly_, face_] :=
 Module[{v = poly[[1]], f = poly[[2]]},
  Polyhedron[
   RootReduce[
    ResourceFunction["ReflectPoints"][v[[Take[f[[face]], 3]]], v]],
   f]]

With that, we can reflect on the faces and see the gap when the polyhedron is reflected precisely. A red sphere has been added to draw attention to the gap area.

dat = FoldList[PolyhedronFaceReflect,
   a4, {3, 5, 3, 5, 3, 5, 3, 5, 3, 5, 3, 5}];
Graphics3D[{{Red, Sphere[v[[6]] + {0, 0, .1}, .05]}, dat},
 Boxed -> False]

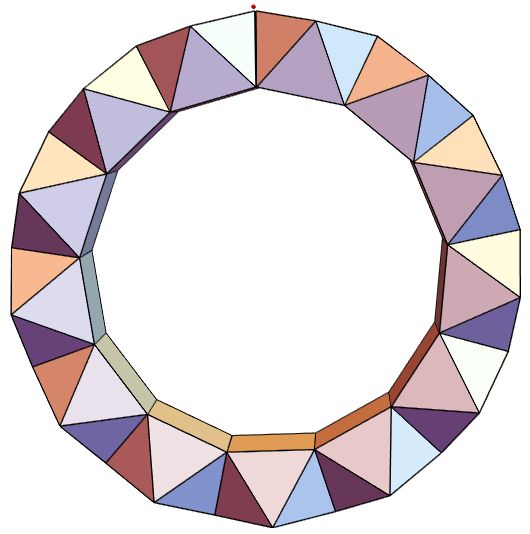

ring gap

How far apart are the points in the gap triangles, for length 2 edges? 0.0268171 or 0.0189626

N[EuclideanDistance[dat[[1, 1, 6]], dat[[13, 1, 8]]]]
N[EuclideanDistance[dat[[1, 1, 3]], dat[[13, 1, 2]]]]

The gap is small enough that it's hard to draw attention to it. Here's a more twisted ring with a gap of 0.0330049:

dat = FoldList[PolyhedronFaceReflect, a4,{2,3,5,1,2,5,3,1,5,3,2,5,2,1,2,5,2,3,2}];
Graphics3D[{{Red,Sphere[v[[6]]+{0,0,.1},.05]},dat}, Boxed-> False]
N[EuclideanDistance[dat[[1, 1, 4]], dat[[20, 1, 4]]]]

anti twisted

POSTED BY: Ed Pegg

That somehow reminds me of protein folding. I wonder if what is discussed here, especially the search algorithms for minimal error configuration, is somehow related to protein folding. https://en.wikipedia.org/wiki/Protein_folding

POSTED BY: Kapio Letto

@Ed, nice! This is so asking for 3D printing :-) like it was done with @Stan's tetrahedral chain challenge post. I could not resist generating GiF animation showing 3D view of the figure and the effect of offset constant. I added it to Ed's post. Here is the code:

frame=
ParallelTable[

offset=#+{0,0,Sqrt[1-1/4 Sec[Pi/8]^2]+4.05+2*Sin[3(u-Pi/2)]^2}&/@
(2PolyhedronData[{"Antiprism",4},"VertexCoordinates"]);

Graphics3D[Table[GraphicsComplex[RotationMatrix[k 2 Pi/13,{0,1,0}].#&/@offset,Polygon/@face],{k,0,12}],
Boxed->False,SphericalRegion->True,SphericalRegion->True,ImageSize->250,ViewPoint->7{.3,Sin[u],Cos[u/2]}],

{u,Pi/2,4 Pi+Pi/2,.1}];

Export["antiptism4.gif",frame]
POSTED BY: Vitaliy Kaurov

enter image description here -- you have earned Featured Contributor Badge enter image description here Your exceptional post has been selected for our editorial column Staff Picks http://wolfr.am/StaffPicks and Your Profile is now distinguished by a Featured Contributor Badge and is displayed on the Featured Contributor Board. Thank you!

POSTED BY: EDITORIAL BOARD

Wow. I wonder who asked this and when... I guess the first question is: Prove that perfection is not possible. For regular tetrahedra that was done in 1958.

Next question -- perhaps open -- can this be done to get error under any positive epsilon? I and M Elgersma did this for regular tetrahedra a few years ago.

POSTED BY: Stan Wagon

Great question @Stan and interesting structure @Ed! If I understand Stan's question correctly, does not it simply require deriving a general formula for the angle between side and base faces of n-antiprism and seeing limiting behavior for the circular arrangement? I might be misunderstanding the problem. I also wonder if Ed's structure is imperfect -- is there a way to quantify this imperfection (error).

POSTED BY: Sam Carrettie

To clarify, I would not change the 4-antiprism to an n-antiprism (just yet). Focus just on the 4-antiprism and the same questions that were asked years ago of the regular tetrahedron.

  1. Is it possible to make a chain of 4-antiprisms that do not intersect and close up perfectly. NO for the tetrahedron (1958).

  2. Assuming the answer to 1 is NO (a proof would likely be similar to the not-too-hard 1958 proof, which was based on barycentric coordinates, can one find, for any positive epsilon, an imbedded chain that has error epsilon in terms of how close it is to closing up. (YES for tetrahedron, Elgesma and Wagon, 2017 or so)

IF anyone wants copies of papers or more details on the 1958 proof, just ask me by usual email. I am easy to find: see stanwagon.com

POSTED BY: Stan Wagon

Here are some further resources fro Stan Wagon and/or coauthor.

Previous Community post

link to paper

Demonstration

https://www.wolfram.com/events/technology-conference/2017/presentations/#wednesday

The last has a link at the bottom to Stan Wagon's talk on this topic at the 2017 Wolfram Technology Conference. Unfortunately the link appears to be dead. I will make the usual in-house inquiries.

POSTED BY: Daniel Lichtblau
